01 - Door


02 - Lower Rack Assembly


03 - Pump & Motor


04 - Rinse Aid & Soap Dispenser


05 - Tub


06 - Upper Rack & Track Assembly


07 - Wiring Information

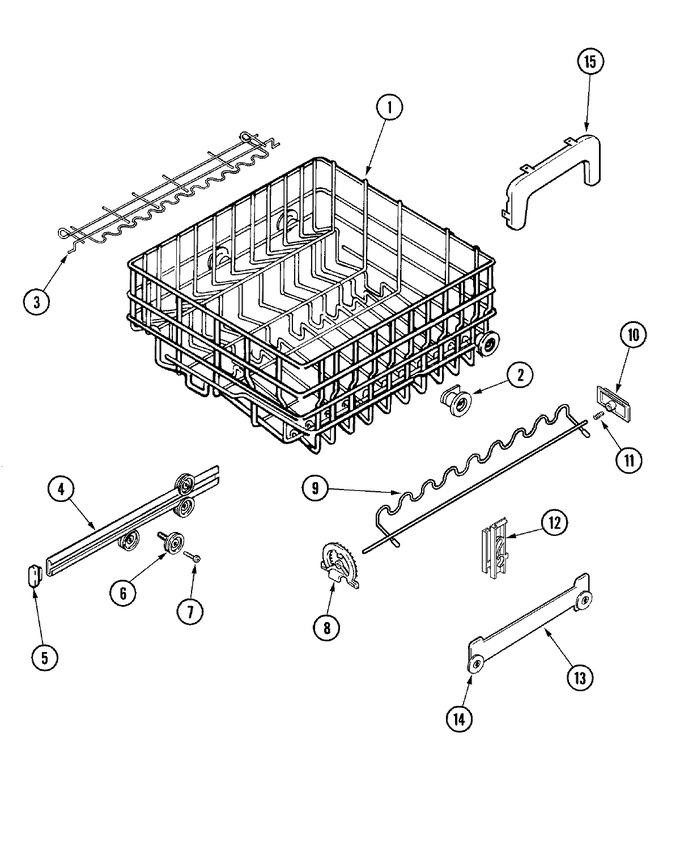

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	99002038		Rack Assembly (upr)	10	Appelez-nous	-
2	WP903093		Wheel Assembly (upr)   (Replaces: 903093)	10		Immediately	$ 9.65
3	99001429		Shelf, Rack (upr)	10			$ 72.77
4	Y912545		Track, Rack	10			$ 40.33
5	WP99002135		Stop, Rack (gray)   (Replaces: 99002135)	10			$ 7.92
6	WPY912798		Washer, Tub Wheel   (Replaces: Y912798)	10			$ 6.90
6	99002342		Wheel, Tub	10			$ 8.89
7	WP99002947		Shaft, Tub Wheel   (Replaces: 99002343)	10		Immediately	$ 10.58
8	99001438		Support, Cup Handler (frt)	10	Appelez-nous	-
9	99002125		Handler, Cup	10	Appelez-nous	-
10	99001439		Support, Cup Handler (rear)	10	Appelez-nous	-
11	99001440		Spring, Cup Handler Support	10	Appelez-nous	-
12	99002073		Plate, Wheel Mounting	10			$ 5.65
13	WP99002072		Strip, Wheel Mounting   (Replaces: 99002072)	10			$ 77.16
14	WP99002106		Wheel, Mounting Strip   (Replaces: 99002106)	10			$ 11.63
15	99002107		Handle, Rack (lt)	10	Appelez-nous	-
15	99002108		Handle, Rack (rt)	10			$ 5.02

    View Diagram in Separate Window       Print Part List
