SELECT A DIAGRAM

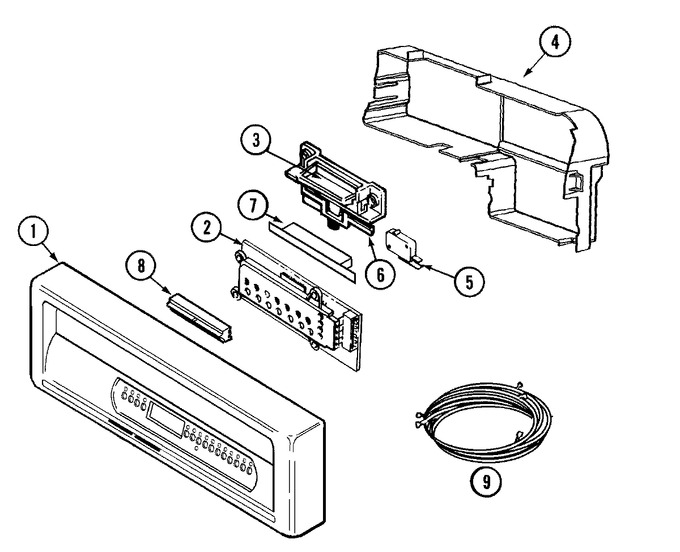

01 - Control Panel


02 - Door


03 - Pump & Motor


04 - Rinse Aid & Soap Dispenser


05 - Track & Rack Assembly


06 - Tub


07 - Wiring Information


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	WP33002917		Screw, No.8x1/2 Hex Washer Head   (Replaces: 912615)	10		Immediately	$ 6.90
1	99002117		Panel, Control (bsq)	10	Appelez-nous	-
2	99002259		Pcb Assembly (11-button)	14	Appelez-nous	-
2	99002232		Pcb Assembly	11	Appelez-nous	-
2	99002268		Barrier, Moisture	10	Appelez-nous	-
2	99002365		Pcb Assembly (11-button)	24	Appelez-nous	-
2	WP33002917		Screw, No.8x1/2 Hex Washer Head   (Replaces: 912615)	10		Immediately	$ 6.90
2	99002078		Pcb Assembly	10	Appelez-nous	-
3	99002254		Holder, Door Switch   (Replaces: 99001077)	10			$ 116.79
3	WP33002917		Screw, No.8x1/2 Hex Washer Head   (Replaces: 912615)	10		Immediately	$ 6.90
3	WP99002240		Holder, Switch   (Replaces: 99002240)	12			$ 63.31
4	99002080		Barrier, Control Panel	10	Appelez-nous	-
5	WP99002207		Switch, Door   (Replaces: 99002207)	12			$ 30.87
5	99002254		Switch, Door   (Replaces: 903086)	10			$ 116.79
6	99001401		Pad, Latch	10	Appelez-nous	-
6	99001402		Foam, Latch Handle	10	Appelez-nous	-
6	99002112		Handle, Latch (bsq)	10	Appelez-nous	-
7	99001420		Liner, Handle Hole	10	Appelez-nous	-
8	99002009		Insert, Vent Liner	10	Appelez-nous	-
9	99002264		Harness, Wire	14			$ 112.57
9	99002104		Wire, Jumper (motor)	10	Appelez-nous	-
9	99002486		Harness, Wire	27	Appelez-nous	-
9	99002049		Harness, Wire	10	Appelez-nous	-
9	99002237		Harness, Wire	11			$ 63.50
10	99002321		Manual, Use & Care (eng & Fch)	10	Appelez-nous	-
10	99002374		Manual, Use & Care (eng/frch)	24	Appelez-nous	-
11	16009270		Manual, Service-no Refund	10	Appelez-nous	-

    View Diagram in Separate Window       Print Part List
