View Diagram in Separate Window
Print Part List

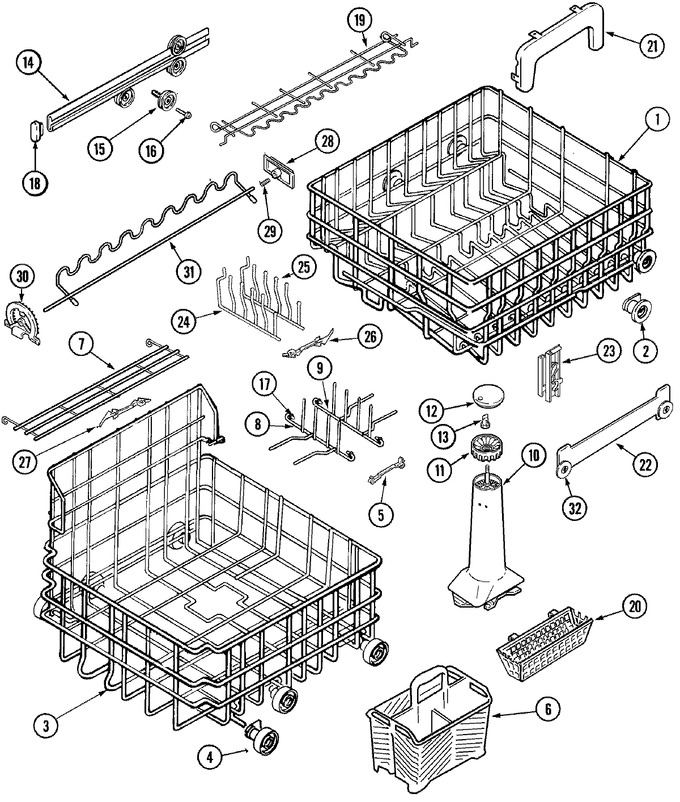

SELECT A DIAGRAM
01 - Control Panel
02 - Door
03 - Pump & Motor
04 - Rinse Aid & Soap Dispenser
05 - Track & Rack Assembly
06 - Tub
07 - Wiring Information
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 99002124 | Rack Assembly (upr) | 10 |
|
- | ||||
| 2 | WP903093 | Wheel Assembly (upr) (Replaces: 903093) | 10 |
|
Immediately | $ 9.65 | |||
| 3 | 99002128 | Rack Assembly (lwr) | 10 |
|
- | ||||
| 3 | 99002400 | Rack Assembly (lwr) | 25 |
|
- | ||||
| 4 | WP99002780 | Wheel Assembly (lwr) (Replaces: 903095) | 10 |
|
Immediately | $ 9.90 | |||
| 5 | WPY912709 | Clip, Adjustable Peg (Replaces: Y912709) | 10 |
|
Immediately | $ 7.07 | |||
| 6 | WP6-918873 | Basket/half, Silverware (Replaces: 99002029) | 10 |
|
Immediately | $ 54.28 | |||
| 6 | WP6-918873 | Basket, Split & Fit (w/cover) (Replaces: 99002028) | 10 |
|
Immediately | $ 54.28 | |||
| 6 | 99002031 | Cover, Basket | 10 |
|
- | ||||
| 7 | 902990 | Shelf, Rack (lwr) | 10 |
|
- | ||||
| 8 | 99001485 | Tine, Bowl (frt) | 10 |
|
- | ||||
| 9 | WP99002138 | Tine, Bowl (rear) (Replaces: 99001486) | 10 |
|
$ 61.64 | ||||
| 10 | 99001533 | Tower, Spray (w/shaft-gray) | 10 |
|
- | ||||
| 11 | 99001442 | Diverter, Spray (gray) | 10 |
|
$ 5.84 | ||||
| 12 | 99001443 | Cap, Spray Diverter (gray) | 10 |
|
$ 5.51 | ||||
| 13 | 99001426 | Nut, Discharge Housing | 10 |
|
$ 5.84 | ||||
| 14 | Y912545 | Track, Rack | 10 |
|
$ 40.33 | ||||
| 15 | WPY912798 | Washer, Tub Wheel (Replaces: Y912798) | 10 |
|
$ 6.90 | ||||
| 15 | 912548 | Wheel, Tub | 10 |
|
- | ||||
| 16 | WP99002947 | Shaft, Tub Wheel (Replaces: 912549) | 10 |
|
Immediately | $ 10.58 | |||
| 17 | Y912710 | Sleeve, Folding Tines | 10 |
|
- | ||||
| 18 | WP99002135 | Stop, Rack (gray) (Replaces: 99002135) | 10 |
|
$ 7.92 | ||||
| 19 | 99001508 | Shelf, Rack (upr) | 10 |
|
- | ||||
| 20 | 99002075 | Basket, Auxillary | 10 |
|
- | ||||
| 21 | 99002107 | Handle, Rack (lt) | 10 |
|
- | ||||
| 21 | 99002108 | Handle, Rack (rt) | 10 |
|
$ 5.02 | ||||
| 22 | WP99002072 | Strip, Wheel Mounting (Replaces: 99002072) | 10 |
|
$ 77.16 | ||||
| 23 | 99002073 | Plate, Wheel Mounting | 10 |
|
$ 5.65 | ||||
| 24 | 99001434 | Tine, Fold-away (frt) | 10 |
|
- | ||||
| 25 | 99001435 | Tine, Fold-away (rear) | 10 |
|
- | ||||
| 26 | WP99001436 | Clip, Fold Away Tine (Replaces: 99001436) | 10 |
|
$ 7.47 | ||||
| 27 | 99001746 | Latch, Pivoting Tine | 10 |
|
$ 6.98 | ||||
| 28 | 99001461 | Support Cup, Varilock (rear) | 10 |
|
- | ||||
| 28 | 99001439 | Support, Cup Handler (rear) | 10 |
|
- | ||||
| 29 | 99001440 | Spring, Cup Handler Support | 10 |
|
- | ||||
| 30 | 99001438 | Support, Cup Handler (frt) | 10 |
|
- | ||||
| 31 | 99001437 | Handler, Cup (upr) | 10 |
|
- | ||||
| 32 | WP99002106 | Wheel, Mounting Strip (Replaces: 99002106) | 10 |
|
$ 11.63 | ||||
| 33 | 99002016 | Cap, Rack (wht) | 10 |
|
- | ||||
| 33 | 99002017 | Cap, Rack (light Gray) | 10 |
|
$ 5.22 |
