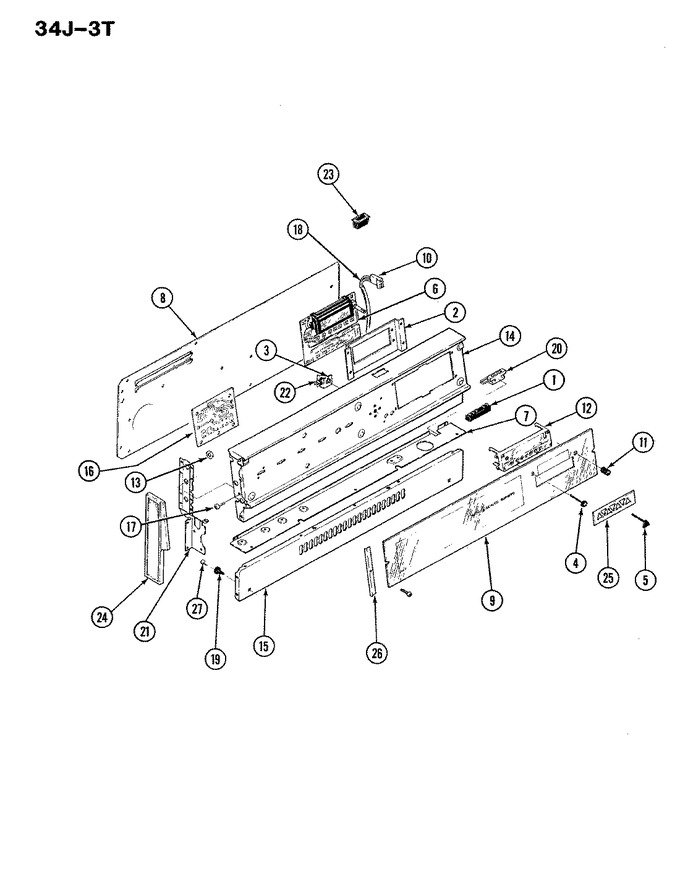

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	7401P015-60		Block, Terminal	01	Appelez-nous	-
2	3801F118-45		Bracket, Clock Mtg	01	Appelez-nous	-
2	WP59002061		Screw (6abx38-zn)   (Replaces: 7101P077-60)	01			$ 6.98
2	W10124350		Not Required Part Or See Note Bracket (not Required)	17	Appelez-nous	-
3	3801F096-45		Bracket, H.l. Swit	01	Appelez-nous	-
3	WP7101P126-60		Screw   (Replaces: 7101P058-60)	01		Immediately	$ 6.85
4	7711P452-60		Button, Clock Set	17	Appelez-nous	-
4	7711P171-60		Knob, Clock (button-blk)	01			$ 19.90
5	7711P449-60		Button, Control Set	17	Appelez-nous	-
5	7711P335-60		Button, Set	01	Appelez-nous	-
6	7601P155-60		Clock	12	Appelez-nous	-
6	7201P052-60		Pad, Foam Gasket	10	Appelez-nous	-
6	7601P163-60		Clock	17	Appelez-nous	-
6	7601P101-60		Clock	01	Appelez-nous	-
6	7601P181-60		Clock, Electronic	23	Appelez-nous	-
7	4005F155-80		Cover, Bottom Bkdg Wire	01	Appelez-nous	-
7	WP7101P126-60		Screw   (Replaces: 7101P058-60)	01		Immediately	$ 6.85
8	4005F369-80		Cover, Bkgd Wire	17	Appelez-nous	-
8	WP59002061		Screw (6abx38-zn)   (Replaces: 7101P077-60)	01			$ 6.98
8	4005F194-80		Cover, Backguard	01	Appelez-nous	-
9	7910P129-60		Glass Backguard	10	Appelez-nous	-
9	7910P042-60		Glass, Backguard	01	Appelez-nous	-
10	W10124350		Not Required Part Or See Note	17	Appelez-nous	-
10	5170P067-60		Wire Harness, Clock	01	Appelez-nous	-
10	5170P007-60		Harness Oven Sensor	01	Appelez-nous	-
10	5170P100-60		Harness, Oven Sensor	17	Appelez-nous	-
11	7711P172-60		Knob, Clock (blk)	01			$ 23.55
11	WP7711P492-60		Knob, Clock (blk)   (Replaces: 7711P431-60)	17			$ 12.13
12	W10124350		Not Required Part Or See Note	17	Appelez-nous	-
12	7730P005-60		Lens, Clock	01	Appelez-nous	-
13	WP3195558		Nut, Speed   (Replaces: 7103P044-60)	01			$ 7.68
14	2601W199-81		Panel, Backguard White	01	Appelez-nous	-
14	2601W328-81		Panel, Control (white)	17	Appelez-nous	-
15	WP7101P126-60		Screw   (Replaces: 7101P058-60)	01		Immediately	$ 6.85
15	12001655		Probe, Oven Sensor   (Replaces: 7430P004-60)	01		Immediately	$ 41.01
15	12001655		Oven Sensor   (Replaces: 7430P007-60)	10		Immediately	$ 41.01
15	12001655		Probe, Oven Sensor   (Replaces: 7430P009-60)	39		Immediately	$ 41.01
15	2620W018-90		+ Panel, Bkgd Lower	01	Appelez-nous	-
16	W10124350		Not Required Part Or See Note	17	Appelez-nous	-
16	7428P006-60		Relay, Board Assy.	01	Appelez-nous	-
17	7214P003-60		Sleeve	01	Appelez-nous	-
17	7101P101-60		Screw, Thermostat	01	Appelez-nous	-
18	7214P005-60		Sleeve, Wire Protect	01	Appelez-nous	-
19	W11233072		Screw (zinc)   (Replaces: 7101P041-60)	01		Immediately	$ 12.62
19	8010P069-60		Spacer, Hinge (main Top)	01			$ 8.57
20	8007P003-60		Bushing, Snap	01	Appelez-nous	-
21	WPW10068250		Screw   (Replaces: 7101P074-60)	01			$ 3.66
21	3807F349-51		Support, Bkgd End Rt	01	Appelez-nous	-
21	3807F348-51		Support, Bkgd End Lf	01	Appelez-nous	-
22	8004P020-60		Support, Relay Board	01	Appelez-nous	-
22	W10124350		Not Required Part Or See Note	17	Appelez-nous	-
22	7403P188-60		Switch	01	Appelez-nous	-
22	7101P008-60		Screw	01	Appelez-nous	-
22	WP59002061		Screw (6abx38-zn)   (Replaces: 7101P077-60)	01			$ 6.98
23	7403P067-60		Switch, Rocker (blk)   (Replaces: 7403P102-60)	01			$ 91.35
24	7103P053-60		Nut, Push-on End Cap	01	Appelez-nous	-
24	7726P031-60		Trim, Bkgd End (lt)	01	Appelez-nous	-
24	7726P032-60		Trim, Bkgd End (rt)	01	Appelez-nous	-
25	7740P016-60		Trim, Bezel	17	Appelez-nous	-
25	7740P010-60		Trim, Bezel	01	Appelez-nous	-
26	7742P009-60		Trim, Retainer Glass	10	Appelez-nous	-
26	7715P016-60		Trim, Bkgd Top	01	Appelez-nous	-
26	7720P088-60		Trim, Glass Ret	01	Appelez-nous	-
27	W11233072		Screw (zinc)   (Replaces: 7101P041-60)	01		Immediately	$ 12.62
