Diagram # Part Number Description Series Availability Ships Price Add to Cart
1 3161323 Nut Appelez-nous -
2 3161328 Screw Appelez-nous -
3 3161333 Lid-white Appelez-nous -
3 3161334 Lid-white Appelez-nous -
3 3161332 Lid-white Appelez-nous -
4 3261038 Bumper (2) Appelez-nous -
5 3161335 Screw Appelez-nous -
6 3261064 Strain Relief Appelez-nous -
7 3161343 Strike Appelez-nous -
8 3281192 Grommet (2) Appelez-nous -
9 3161336 Dispenser, Bleach Appelez-nous -
10 3261065 Cord Appelez-nous -
11 3161339 Panel-top-whte Appelez-nous -
12 3281170 Spring (2) Appelez-nous -
13 3161341 Switch, Lid Lock Appelez-nous -
14 3161342 Shield Appelez-nous -
15 3281035 Screw Appelez-nous -
16 3161323 Nut Appelez-nous -
17 3161324 Washer (2) Appelez-nous -
18 3161325 Screw Appelez-nous -
19 3161327 Hinge-white Appelez-nous -
19 3161326 Hinge-almond Appelez-nous -
20 3161325 Screw (2) Appelez-nous -
21 3161324 Spacer Appelez-nous -

    View Diagram in Separate Window     Print Icon   Print Part List

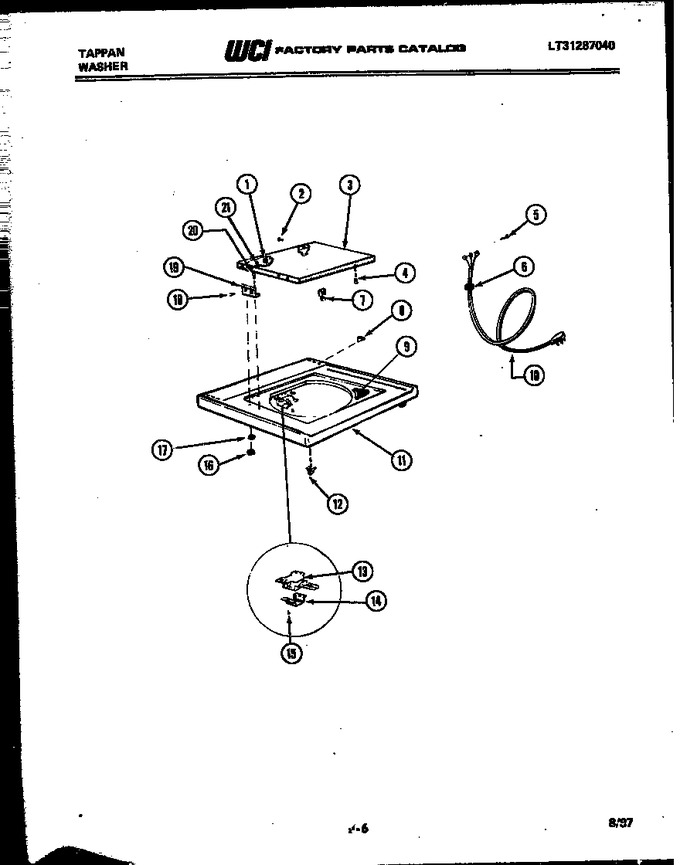

Diagram for 46-2857-00-02
