Diagram # Part Number Description Series Availability Ships Price Add to Cart
1 3281189 End Cap, Lh Appelez-nous -
2 3281199 Speednut (8) Appelez-nous -
3 3281200 Clip-ground Appelez-nous -
4 3261068 Screw Appelez-nous -
5 3281035 Screw Appelez-nous -
6 3281035 Screw (4) Appelez-nous -
7 3161317 Switch, Temp Appelez-nous -
8 3281186 Cover Appelez-nous -
9 3281035 Screw (4) Appelez-nous -
10 3161318 Switch, Wlc Appelez-nous -
11 3161319 Switch, Speed Sel Appelez-nous -
12 3161322 Timer Appelez-nous -
13 3281201 Spacer Appelez-nous -
14 3281202 Bracket Appelez-nous -
15 3261068 Screw Appelez-nous -
16 3261062 Screw Appelez-nous -
17 3281191 End Cap, Rh Appelez-nous -
18 3281203 Screw Appelez-nous -
19 3161316 Panel, Control Appelez-nous -
20 3161313 Dial, Timer Appelez-nous -
21 3161312 Knob, Timer Appelez-nous -
22 3281198 Knob, Speed Sw Appelez-nous -
23 3281198 Knob, W/c Sw Appelez-nous -
24 3281198 Knob, Temp Sw Appelez-nous -

    View Diagram in Separate Window     Print Icon   Print Part List

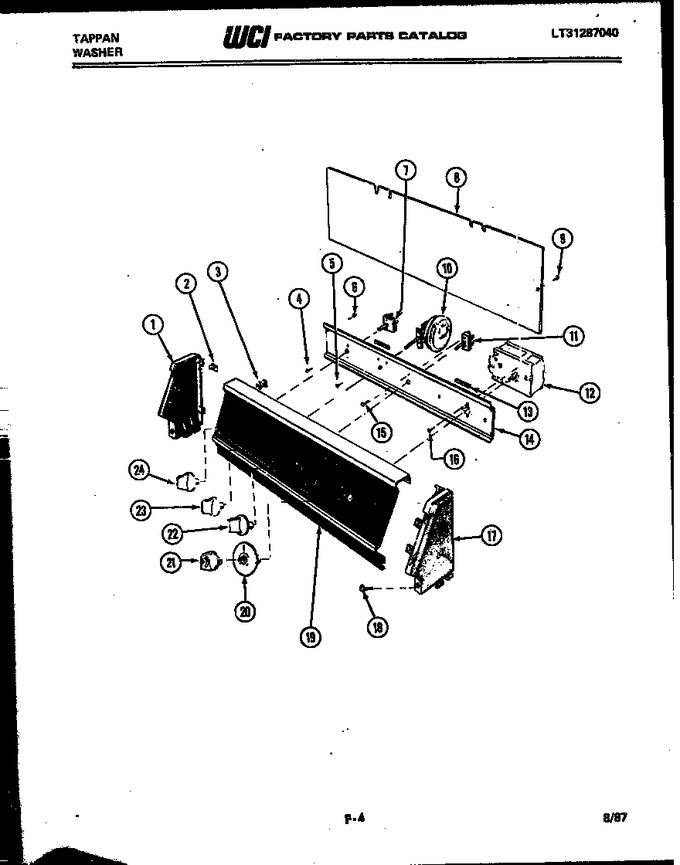

Diagram for 46-2857-23-02
