View Diagram in Separate Window
Print Part List
SELECT A DIAGRAM
01 - Cover

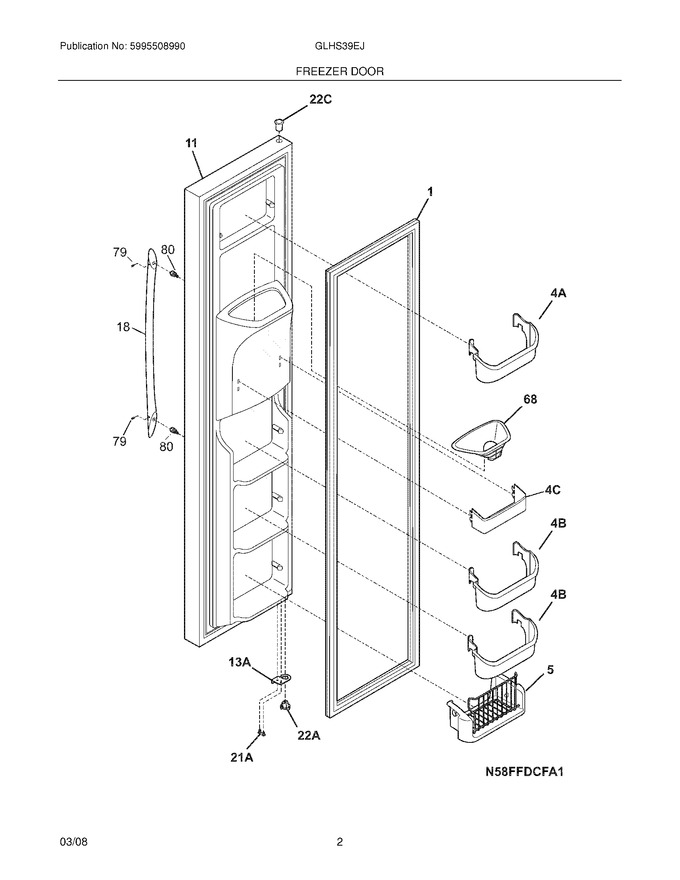

03 - Freezer Door
05 - Refrigerator Door
07 - Cabinet
09 - Shelves
11 - Controls
13 - System
15 - Ice & Water Dispenser
17 - Ice Container
19 - Ice Maker
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 241786016 | Gasket-frzr Door,white ,magnetic (Replaces: 241786004) |
|
$ 93.12 | |||||
| 5 | 241545004 | Bin-tilt Out,tilt-out |
|
$ 102.63 | |||||
| 11 | 241526791 | Door-frzr,smooth White ,complete Assy |
|
$ 372.86 | |||||
| 18 | 240536809 | Handle-door,white |
|
$ 139.30 | |||||
| 68 | 241525101 | Chute-ice |
|
$ 82.25 | |||||
| 79 | 218755402 | Screw-set,10-32 X 0.375 |
|
Immediately | $ 33.00 | ||||
| 80 | 218755504 | Screw-shoulder,no.10 Ab ,handle Mounting |
|
Immediately | $ 18.60 | ||||
| 13A | 240581902 | Door Stop,white ,frzr |
|
$ 47.03 | |||||
| 21A | 5303323137 | Screw,10-32 X 1/2 (Replaces: 240598402) |
|
$ 11.88 | |||||
| 22A | 242000501 | Bearing-hinge(frz),closer (Replaces: 240328202) |
|
$ 7.14 | |||||
| 22C | 240328402 | Bearing-hinge,natural ,upper |
|
$ 19.85 | |||||
| 4A | 240367301 | Bin-door,frzr-upper |
|
Immediately | $ 44.68 | ||||
| 4B | 240359001 | Bin-door |
|
Immediately | $ 68.11 | ||||
| 4C | 240358401 | Bin-door,frzr-dispenser |
|
$ 56.37 | |||||
| NI | 240552102 | Harness-wiring,door |
|
$ 77.60 | |||||
| NI | 240451503 | Screw,ind Hex Wshr Hd ,8-32 X 0.375 ,trilobe |
|
$ 3.79 | |||||
| NI | 241806601 | Connector-water,straight |
|
Immediately | $ 70.56 | ||||
| NI | 5303918256 | Dispenser Heater Kit |
|
$ 474.16 |
