SELECT A DIAGRAM

02 - Console And Control Parts


03 - Top Parts


04 - Cabinet Parts


05 - Tub Detail


06 - Washer Drive System And Pump


07 - Transmission Parts


08 - Drain Hose And Miscellaneous

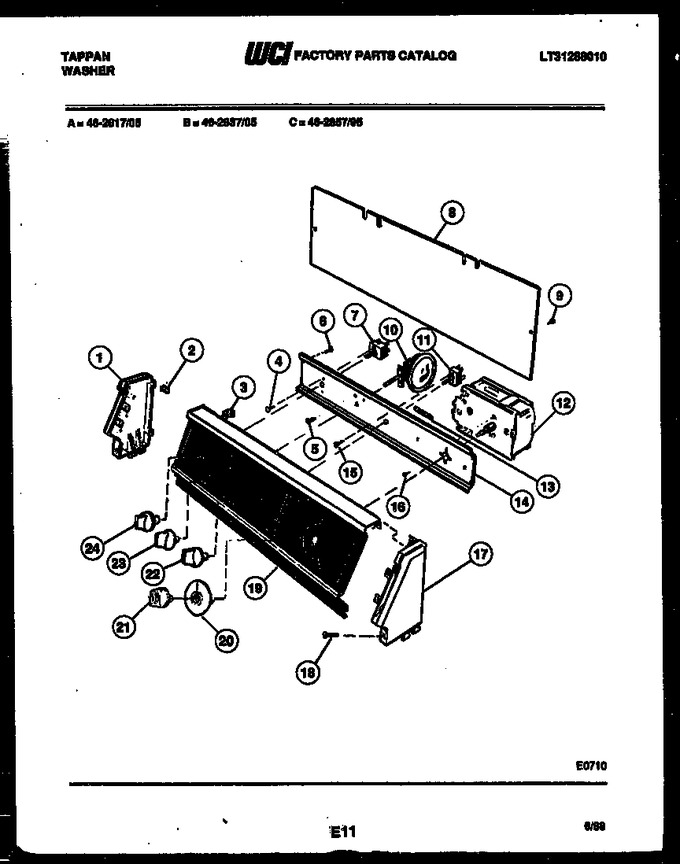

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	3281189		End Cap, Lh		Appelez-nous	-
2	3281199		Speednut (8)		Appelez-nous	-
3	3281200		Clip-ground		Appelez-nous	-
4	3261068		Screw		Appelez-nous	-
5	3281035		Screw		Appelez-nous	-
6	3281035		Screw (4)		Appelez-nous	-
7	3161317		Switch-temperature		Appelez-nous	-
8	3281186		Cover		Appelez-nous	-
9	3281035		Screw (4)		Appelez-nous	-
10	3161318		Switch, Wlc		Appelez-nous	-
11	3161319		Switch-speed Select		Appelez-nous	-
12	3161322		Timer		Appelez-nous	-
13	3281201		Spacer		Appelez-nous	-
14	3281202		Bracket		Appelez-nous	-
15	3261068		Screw		Appelez-nous	-
16	3261062		Screw		Appelez-nous	-
17	3281191		End Cap, Rh		Appelez-nous	-
18	3281203		Screw		Appelez-nous	-
19	3161316		Panel, Control		Appelez-nous	-
20	3161313		Dial, Timer		Appelez-nous	-
21	3161312		Knob, Timer		Appelez-nous	-
22	3281198		Knob-speed Switch		Appelez-nous	-
23	3281198		Knob-w.l.c. Switch		Appelez-nous	-
24	3281198		Knob-temp Switch		Appelez-nous	-
