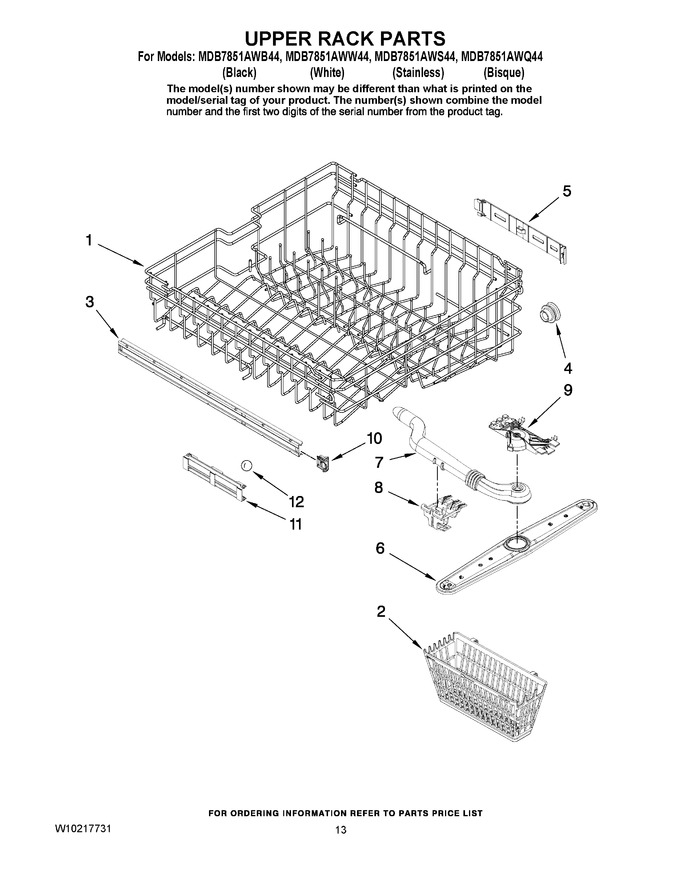

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W10129045		Dishrack, Upper		Appelez-nous	-
2	99002620		Basket, Auxillary		Appelez-nous	-
3	99003066		Rail, Inner		Appelez-nous	-
4	99003147		Wheel Assembly				$ 9.42
5	99003053		Guard, Rack (low Side)				$ 9.96
5	99003052		Guard, Rack (high Side)				$ 5.01
6	99002911		Washarm (upper)		Appelez-nous	-
7	99002679		Wash Manifold Assembly (upper)		Appelez-nous	-
8	99003071		Clip, Upper Wash Manifold (back)				$ 19.68
9	99003072		Clip, Upper Wash Manifold (front)				$ 5.25
10	W10169391		Stop, Track				$ 5.85
11	99003069		Cage, Ball Bearing				$ 6.26
12	99003068		Bearing, Ball				$ 5.83
