Diagram # Part Number Description Series Availability Ships Price Add to Cart
1 99002575 Housing, Board (top) Special Order $ 20.11

2 W10218838 Board, Control Special Order $ 189.28

3 99002576 Housing, Board Special Order $ 25.18

4 W10197307 Panel, Control (black) Special Order $ 187.59

4 W10197308 Panel, Control (white) Special Order $ 186.37

4 W10197309 Panel, Control (bisque) Appelez-nous -
5 WPW10275768 Latch, Assembly   (Replaces: 99003347) In-Stock Immediately $ 79.15

6 99002577 Handle, Latch (black) Appelez-nous -
6 99002579 Handle, Latch (white) Appelez-nous -
6 99002578 Handle, Latch (bisque) Appelez-nous -

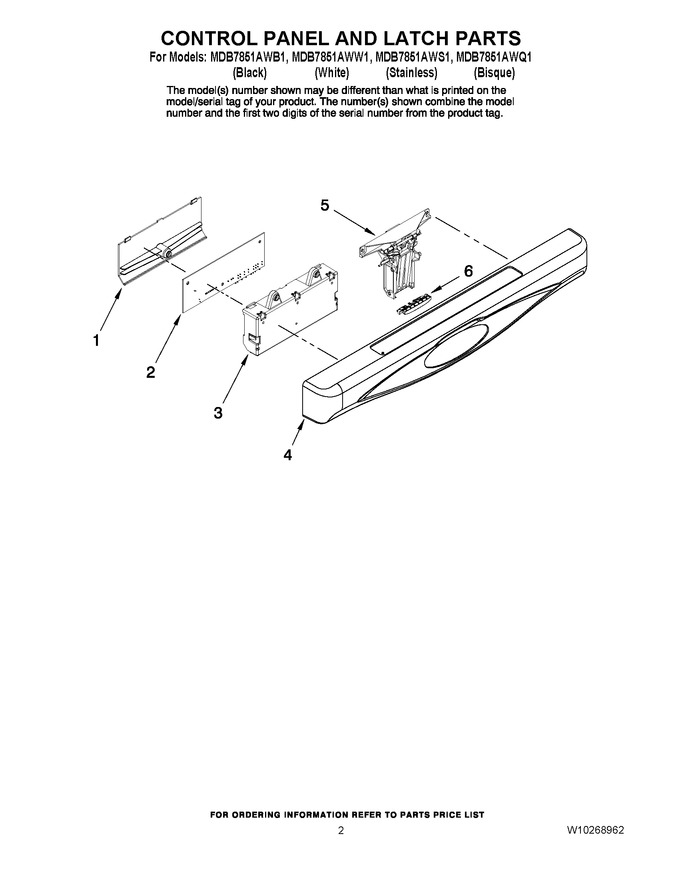

    View Diagram in Separate Window     Print Icon   Print Part List
