Diagram # Part Number Description Series Availability Ships Price Add to Cart
1 4455617 Door Liner Appelez-nous -
2 WP9760576 Hinge, Door (l.side (clear))   (Replaces: 8300576) In-Stock Immediately $ 50.81

2 WP9760571 Hinge, Door (r.side (white))   (Replaces: 8300571) In-Stock Immediately $ 98.15

2 WP9760572 Hinge, Door (l.side (white))   (Replaces: 8300572) Special Order $ 95.97

2 WP9760575 Hinge, Door (r.side (clear))   (Replaces: 8300575) In-Stock Immediately $ 58.11

2 WP4449743 Hinge, Door (screw)   (Replaces: 4449743) Special Order $ 6.47

3 WP4449253 Glass, Inner   (Replaces: 4449253) Special Order $ 151.75

4 4451721 Insulation, Door Special Order $ 37.62

5 8300777 Retainer, Glass Appelez-nous -
5 WP4449809 Screw   (Replaces: 4449809) In-Stock Immediately $ 6.47

7 WP4449257 Glass, Inner   (Replaces: 4449257) In-Stock Immediately $ 178.55

12 4452315 Door Glass, Assy (stainless Steel) Special Order $ 274.20

12 4455393 Door Glass, Assy (black) Appelez-nous -
12 4455392 Door Glass, Assy (white) Appelez-nous -
12 4455394 Door Glass, Assy (biscuit) Appelez-nous -
13 4452870 Door Handle (biscuit) Appelez-nous -
13 4452501 Door Handle (white) Appelez-nous -
13 4452087 Door Handle (stainless Steel) Appelez-nous -
13 4452500 Door Handle (black) Appelez-nous -
14 4455804 Bracket, Handle (left Hand) Special Order $ 25.95

14 WPW10132940 Bracket, Handle (screw)   (Replaces: 3196184) Special Order $ 8.50

14 4455803 Bracket, Handle (right Hand) Special Order $ 30.70

19 WP4449809 Screw   (Replaces: 4449809) In-Stock Immediately $ 6.47

19 4450361 Shield, Heat Appelez-nous -
20 4450470 Retainer, Glass Appelez-nous -
20 WP4449809 Screw   (Replaces: 4449809) In-Stock Immediately $ 6.47

21 4452325 Seal, Door Top Special Order $ 32.70

23 4450863 Retainer, Glass-clip (black) Appelez-nous -
23 4450864 Retainer, Glass-clip (white) Appelez-nous -
24 8300973 Glass. Inner Appelez-nous -

    View Diagram in Separate Window     Print Icon   Print Part List

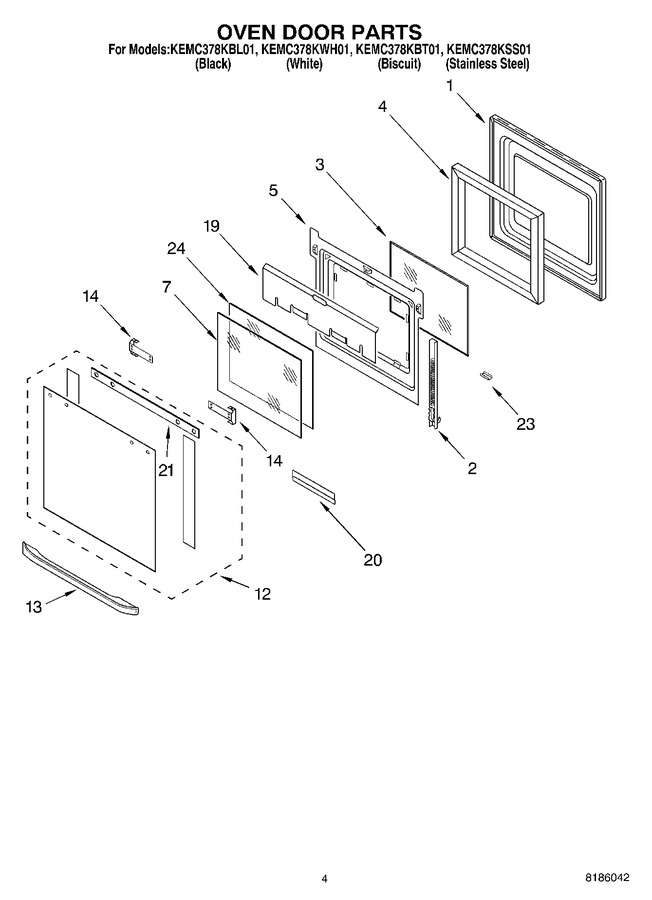

Diagram for KEMC378KBL01
