Diagram # Part Number Description Series Availability Ships Price Add to Cart
1 4451759 Vent, Exhaust Special Order $ 90.01

2 4455178 Elbow, Vent- Top Special Order $ 13.30

3 4455177 Elbow, Vent- Bottom Special Order $ 9.77

4 8300791 Bracket, Combo Chassis Appelez-nous -
5 W10491987 Seal, Foam   (Replaces: 4451758) In-Stock Immediately $ 6.98

6 WP4449154 Screw (2)   (Replaces: 4449154) Special Order $ 6.80

7 WP4449809 Screw   (Replaces: 4449809) In-Stock Immediately $ 6.47

9 4450407 Baffle, Rear Appelez-nous -
10 WP9760889 Latch, Motorized   (Replaces: 9759525) In-Stock Immediately $ 295.79

11 WPW10016550 Blower   (Replaces: 4452003) In-Stock Immediately $ 255.27

12 4455191 Plate, Service Appelez-nous -

    View Diagram in Separate Window     Print Icon   Print Part List

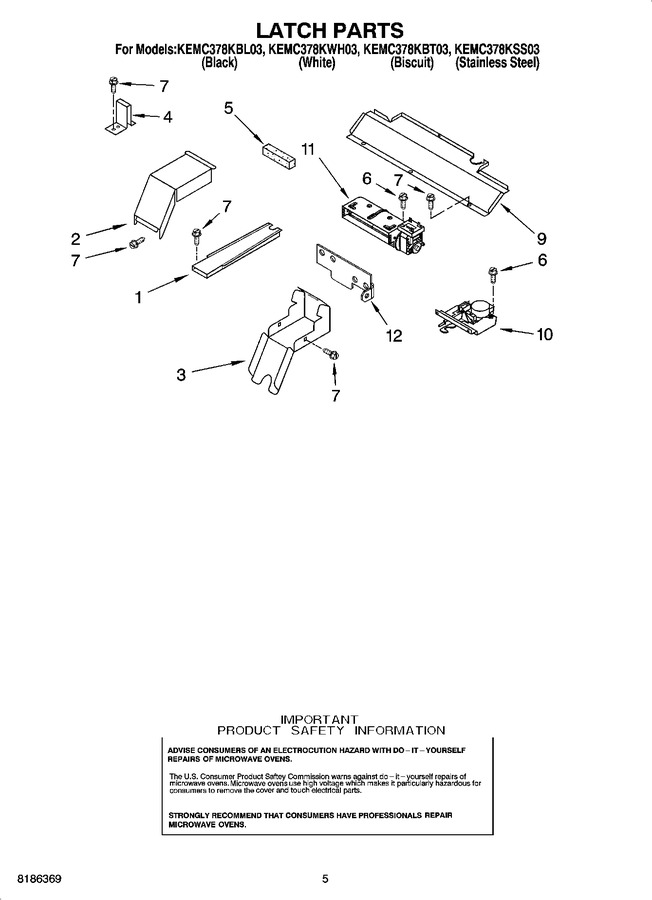

Diagram for KEMC378KBL03
