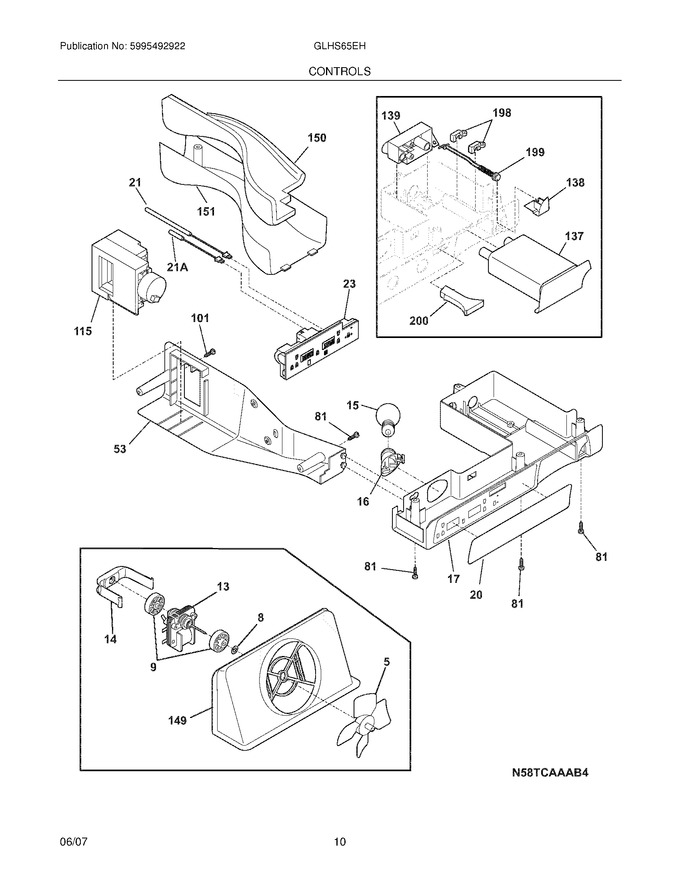

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 8 | 215474201 | Washer,``slinger`` ,nylon ,evap Fan Shaft |
|
Immediately | $ 18.43 | ||||
| 9 | 241563601 | Bushing-motor Mtg,(2) |
|
Immediately | $ 17.72 | ||||
| 13 | 5303918549 | Motor-evap Fan (Replaces: 240369702) |
|
Immediately | $ 88.16 | ||||
| 14 | 242135301 | Clip,evap Fan Motor (Replaces: 241517701) |
|
$ 7.79 | |||||
| 15 | 316538904 | Light Bulb (Replaces: 241555401) |
|
Immediately | $ 20.48 | ||||
| 17 | 241608801 | Box-control,front |
|
- | |||||
| 20 | 241603902 | Label-control Box |
|
- | |||||
| 21 | 241608401 | Thermistor-refr |
|
$ 77.97 | |||||
| 53 | 241608902 | Box-control (Replaces: 241608901) |
|
$ 103.14 | |||||
| 81 | 5304455650 | Screw,hex Washer Head ,8-15a X 0.625 ,low Profile |
|
$ 14.18 | |||||
| 101 | 241637202 | Screw,no.8ab X 1 3/4`` |
|
$ 5.31 | |||||
| 115 | 241600906 | Damper Assy,w/seal (Replaces: 241600905) |
|
Immediately | $ 200.84 | ||||
| 137 | WF2CB | Filter,water ,carbon Cassette ,front ,with O`rings (Replaces: 240396401) |
|
Immediately | $ 108.24 | ||||
| 138 | 240397301 | Button-filter Release |
|
$ 91.76 | |||||
| 139 | 240396002 | Base-water Filter |
|
Immediately | $ 119.66 | ||||
| 149 | 241563501 | Shroud-fan Orfice |
|
- | |||||
| 150 | 241505101 | Insulation-water Tube Cover |
|
- | |||||
| 151 | 241505001 | Cover-water Tube |
|
$ 84.68 | |||||
| 198 | 240397401 | Retainer |
|
$ 59.54 | |||||
| 199 | 240397501 | Rod |
|
$ 55.57 | |||||
| 199 | 240398401 | Spring-filter Release Rod |
|
$ 59.16 | |||||
| 200 | 240397601 | Light Pipe |
|
$ 76.65 | |||||
| 21A | 241608501 | Thermistor-frzr |
|
$ 50.32 | |||||
| F137 | 242227702 | Bypass,water Filter ,optional Part (Replaces: 240396701) |
|
Immediately | $ 73.16 | ||||
| F139 | 240527001 | O-ring,wtr Filter Base (Replaces: 240526901) |
|
$ 10.62 | |||||
| F149 | 241528306 | Seal,shroud |
|
- | |||||
| F16 | 218906802 | Socket-light (Replaces: 241513901) |
|
$ 17.72 | |||||
| F23 | 241739709 | Control,electronic ,w/seal (Replaces: 241739701) |
|
Immediately | $ 253.55 | ||||
| F5 | 5308000010 | Fan Blade,red ,evaporator Fan |
|
Immediately | $ 49.03 | ||||
| NI | 5304455649 | Screw-timer Mtg,pan Hd ,6-20 X 0.438 ,(2) |
|
$ 17.01 | |||||
| NI | 241737801 | Harness-wiring,control Box |
|
$ 112.23 | |||||
| NI | 3205266 | Edge Protector, Wiring Harness |
|
$ 80.09 |
