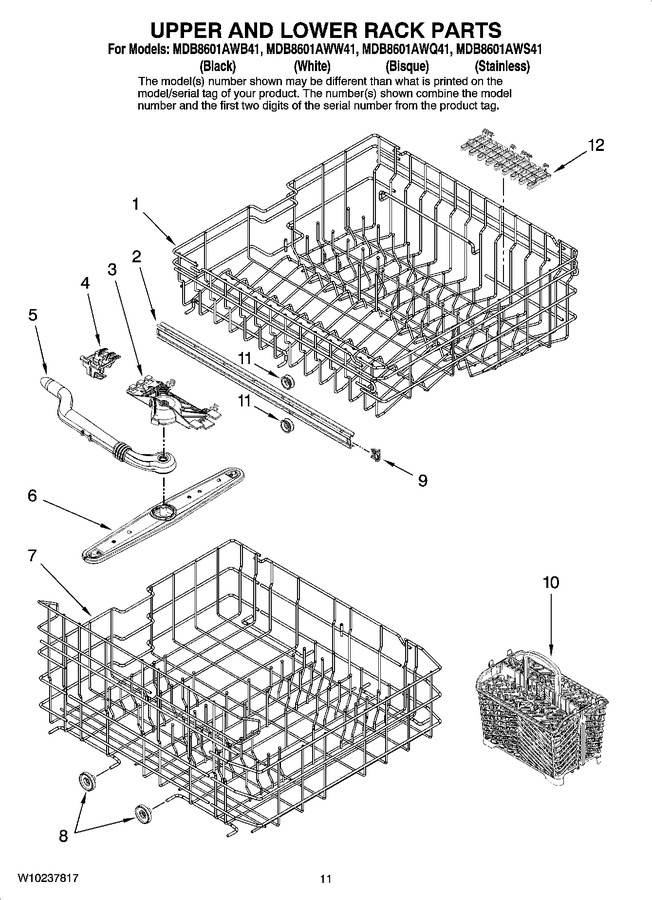

SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W10243290 | Dishrack, Upper | 41 |
|
$ 194.52 | ||||
| 1 | W10121747 | Dishrack, Upper |
|
- | |||||
| 2 | 99002621 | Rail, Inner Slide |
|
$ 56.82 | |||||
| 3 | 99003072 | Clip, Upper Wash Manifold (front) |
|
$ 5.25 | |||||
| 4 | 99002945 | Clip, Upper Wash Manifold (back) |
|
$ 21.24 | |||||
| 5 | 99003081 | Wash Manifold (upper) |
|
$ 82.70 | |||||
| 6 | 99002739 | Arm, Wash (upper) |
|
$ 59.87 | |||||
| 7 | W10120550 | Dishrack, Lower |
|
- | |||||
| 8 | WP99003149 | Wheel Assembly (8) Lower (Replaces: 99003149) |
|
Immediately | $ 11.48 | ||||
| 9 | W10169390 | Stop, Rail |
|
- | |||||
| 10 | 99002697 | Basket, Silverware |
|
- | |||||
| 11 | WP99002947 | Wheel, Tub (8) (Replaces: 99002947) |
|
Immediately | $ 10.58 | ||||
| 12 | 99002671 | Shelf,cup Upper |
|
$ 21.17 |
