SELECT A DIAGRAM

01 - Door And Panel Parts


02 - Control Panel Parts


03 - Door And Latch Parts


04 - Lower Washarm Parts


05 - Heater Parts


06 - Fill And Overfill Parts


07 - Tub And Frame Parts


08 - Pump And Motor Parts


09 - Middle And Lower Rack Parts


10 - Upper Rack Parts


11 - Upper Wash And Rinse Parts, Optional Parts (not Included)

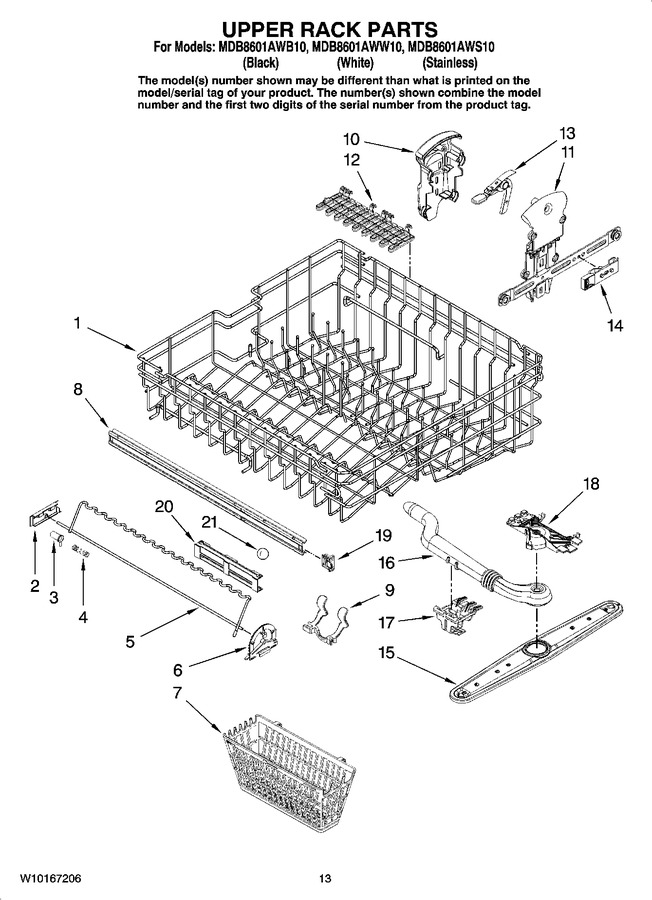

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W10121747		Dishrack, Upper		Appelez-nous	-
2	99002712		Varilock (rear)				$ 6.51
3	99002714		Cup, Varilock				$ 46.60
4	99002715		Spring, Varilock		Appelez-nous	-
5	99002713		Support, Varilock		Appelez-nous	-
6	99002711		Varilock (front)		Appelez-nous	-
7	99002620		Basket, Auxillary		Appelez-nous	-
8	99002621		Rail, Inner				$ 56.82
9	99002696		Clip, Cup				$ 92.17
10	99003011		Cover, Rack Adjuster				$ 5.75
11	99003585		Adjuster, Rack (right)		Appelez-nous	-
11	99003584		Adjuster, Rack (left)		Appelez-nous	-
12	99002671		Shelf, Cup				$ 21.17
13	99003178		Lever, Adjuster				$ 55.08
14	99003020		Stablizer, Rack Adjuster				$ 37.77
15	99002624		Washarm (upper)				$ 32.72
16	99002679		Wash Manifold Assembly (upper)		Appelez-nous	-
17	99002945		Clip, Upper Wash Manifold (back)				$ 21.24
18	99002669		Clip, Upper Wash Manifold (front)				$ 5.84
19	99003281		Stop Track				$ 5.84
20	99003069		Cage, Ball Bearing				$ 6.26
21	99003068		Bearing, Ball				$ 5.83

    View Diagram in Separate Window       Print Part List
