Diagram # Part Number Description Series Availability Ships Price Add to Cart
1 5303270858 Housing, Fan Appelez-nous -
2 3261048 Screw Appelez-nous -
3 131298300 Thermostat-control   (Replaces: 5303269970) In-Stock Immediately $ 62.37

4 5303269972 Bracket, Grounding Appelez-nous -
8 5303015671 Screw Appelez-nous -
9 5303269973 Duct, Exhaust Appelez-nous -
10 5303281079 Wheel, Blower Special Order $ 219.03

11 5303281080 Cover, Fan Appelez-nous -
12 5303212834 Clamp, Motor Special Order $ 3.78

13 5303283470 Motor & Pulley Special Order $ 414.17

16 3281120 Screw-ground Appelez-nous -
17 134503600 Belt   (Replaces: 5303283471) In-Stock Immediately $ 18.79

18 5303212849 Idler Assembly Special Order $ 20.69

19 3261230 Screw-stop Appelez-nous -
20 131017900 Screw Special Order $ 14.46

21 5303281076 Spacer Appelez-nous -
22 5303281085 Spring, Idler Special Order $ 13.01

23 3201239 Cradle-motor Appelez-nous -
24 5303281083 Spring Appelez-nous -
25 3281036 Screw (4) Appelez-nous -
26 3281077 Screw Appelez-nous -

    View Diagram in Separate Window     Print Icon   Print Part List

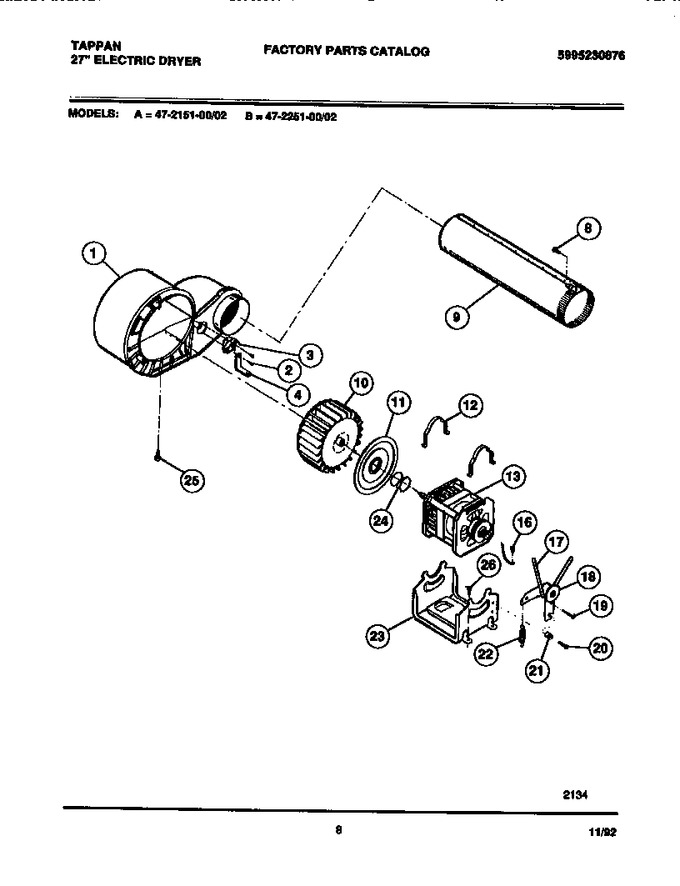

Diagram for 47-2251-00-02
