Diagram # Part Number Description Series Availability Ships Price Add to Cart
1 W10119337 Strike, Door Special Order $ 23.34

2 99002648 Bracket, Cabinet Mounting Appelez-nous -
3 99002640 Fastener Special Order $ 18.96

4 99002610 Bracket, Spring Adjustment Appelez-nous -
5 99002636 Bracket, Support (left) Appelez-nous -
6 99003039 Trim, Corner Edge (right) Special Order $ 5.84

6 99003038 Trim, Corner Edge (left) Special Order $ 5.84

7 99003688 Nut Special Order $ 5.51

8 99003686 Bracket, Cable Appelez-nous -
9 99002608 Roller, Cable Bracket Special Order $ 9.46

10 99003687 Bolt, Shoulder Special Order $ 5.33

11 WP99003118 Spring, Door   (Replaces: 99003118) In-Stock Immediately $ 23.18

12 WP99003446 Door Cable Assy.   (Replaces: 99003446) In-Stock Immediately $ 7.90

13 99002703 Gap Seal, Toe Kick (white) Special Order $ 24.09

13 99002701 Gap Seal, Toe Kick (black) Special Order $ 34.28

14 WPW10223013 Insulation, Tub   (Replaces: 99002849) Special Order $ 83.60

15 WP99003337 Seal, Door   (Replaces: 99003337) In-Stock Immediately $ 138.53

16 W10142298 Tub Assembly Appelez-nous -
17 WP99003041 Trim, Tub Edge (bottom)   (Replaces: 99003041) In-Stock Immediately $ 89.01

18 99003087 Bracket, Support (rear) Appelez-nous -
19 99002633 Thermostat, Limiting Special Order $ 33.69

20 99001008 Clip, Thermostat Appelez-nous -
21 99002692 Screw, Trim Mounting Special Order $ 5.02

22 99002637 Bracket, Junction Box Appelez-nous -
23 WPW10143258 Leg, Leveling   (Replaces: 99002635) Special Order $ 13.81

24 99003035 Strip, Trim Special Order $ 38.90

25 99002638 Cover, Junction Box Appelez-nous -
26 99003036 Strip, Trim Appelez-nous -
27 99003034 Strip, Trim Appelez-nous -
28 W10117485 Support, Hinge (left) Special Order $ 99.12

28 W10117484 Support, Hinge (right) Special Order $ 103.72

29 99003150 Backer, Hinge Seal (right) Appelez-nous -
29 99003151 Backer, Hinge Seal (left) Appelez-nous -
30 99002601 Screw Appelez-nous -
31 99002150 Seal, Air/water Inlet Special Order $ 8.72

32 99003029 Grill, Air/water Inlet Appelez-nous -

    View Diagram in Separate Window     Print Icon   Print Part List

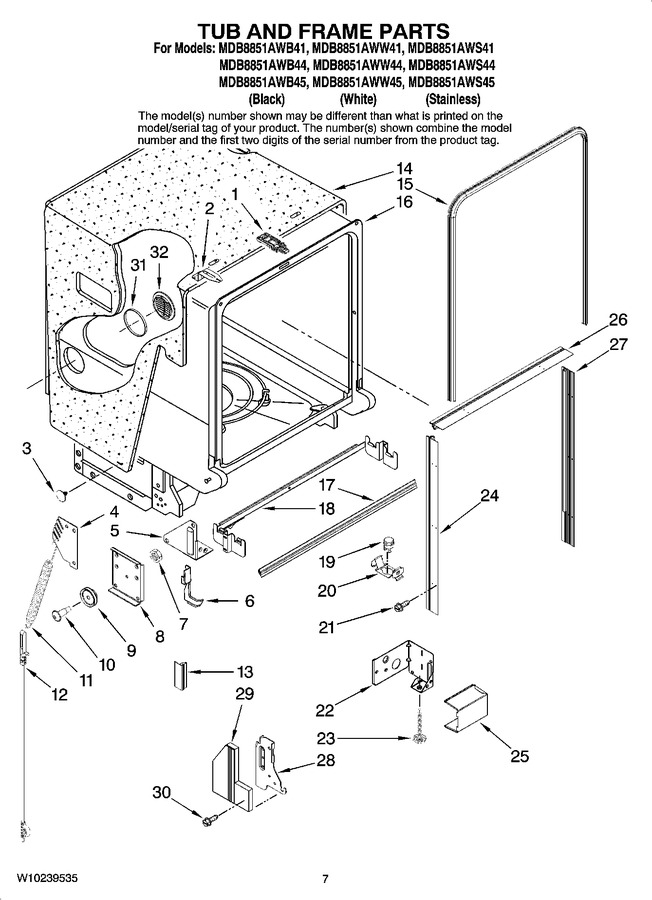

Diagram for MDB8851AWB44
