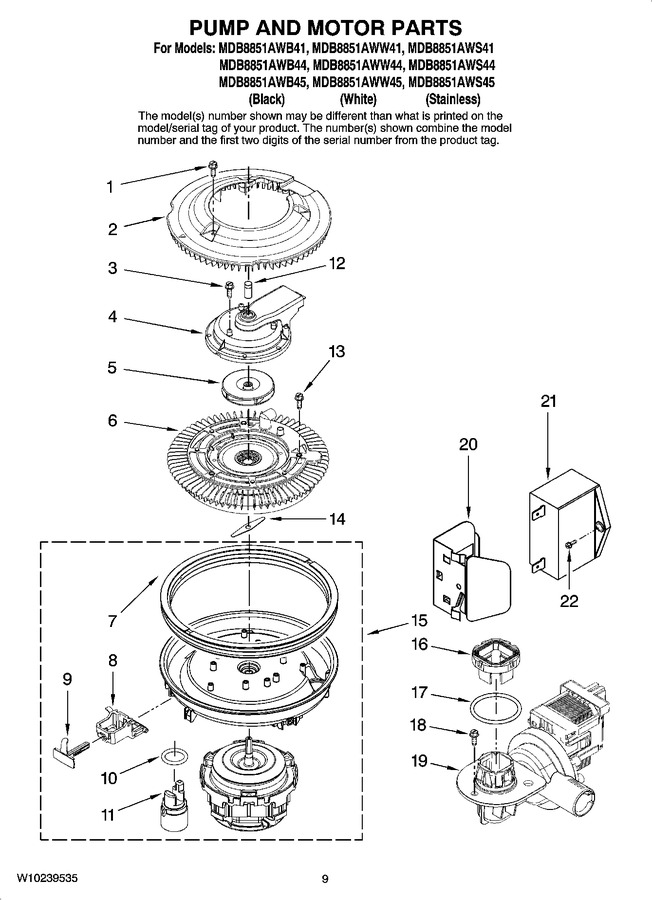

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	99002666		Screw		Appelez-nous	-
2	99002979		Guard, Filter		Appelez-nous	-
3	99002668		Screw		Appelez-nous	-
4	99002677		Discharge, Housing Assembly		Appelez-nous	-
5	WP99002659		Wash Impeller Assembly   (Replaces: 99002659)			Immediately	$ 50.27
6	WPW10192799		Filter/flowplate, Assembly   (Replaces: 99003291)			Immediately	$ 218.27
7	99003055		Gasket, Motor Mount		Appelez-nous	-
8	99003056		Lever, Motor Mount				$ 7.58
9	99003057		Plunger, Motor Mount				$ 5.58
10	99002651		O-ring, Turbidity Sensor				$ 19.03
11	WPW10120019		Sensor, Turbidity   (Replaces: W10120019)				$ 178.03
12	99003697		Pivot, Wash Arm		Appelez-nous	-
13	99002664		Screw				$ 5.65
14	99003427		Chopper		Appelez-nous	-
15	99003436		Wash Motor Assy.		Appelez-nous	-
16	99003309		Flapper, Drain Pump Inlet		Appelez-nous	-
17	99002857		O-ring, Drain Pump				$ 5.83
18	99002740		Screw				$ 6.24
19	W10200518		Drain Pump Assy.		Appelez-nous	-
20	99003440		Sheild, Capacitor		Appelez-nous	-
21	99002665		Capacitor				$ 31.01
22	99002601		Screw		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
