01 - Door And Panel Parts


02 - Control Panel Parts


03 - Door And Latch Parts


04 - Lower Washarm Parts


05 - Heater Parts


06 - Fill And Overfill Parts


07 - Tub And Frame Parts


08 - Pump And Motor Parts

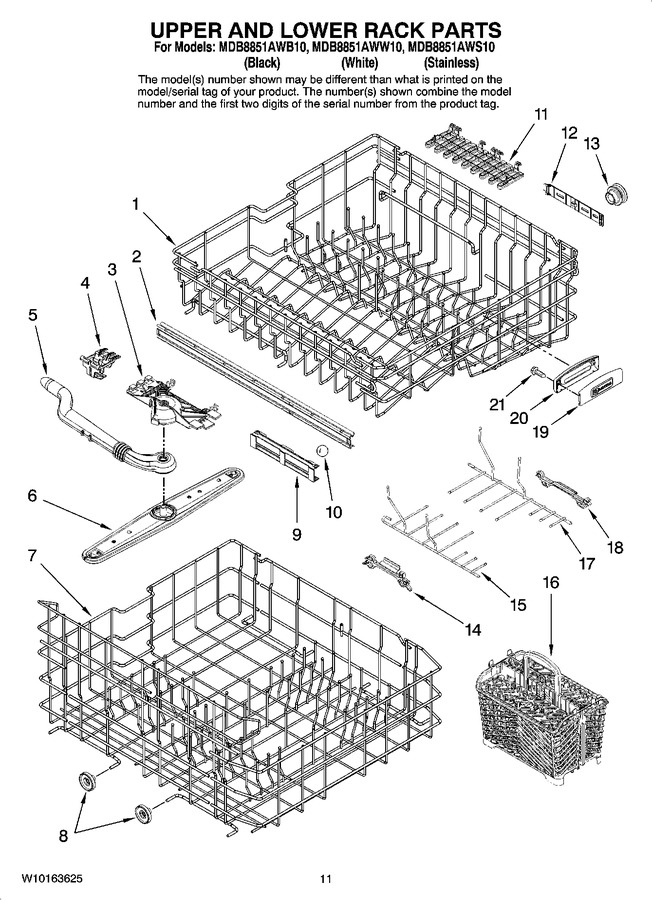

09 - Upper And Lower Rack Parts


10 - Upper Wash And Rinse Parts, Optional Parts (not Included)


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W10120534		Dishrack, Upper		Appelez-nous	-
2	99003066		Rail, Inner Slide		Appelez-nous	-
3	99002669		Clip, Upper Wash Manifold (front)				$ 5.84
4	99002945		Clip, Upper Wash Manifold (back)				$ 21.24
5	99002679		Wash Manifold (upper)		Appelez-nous	-
6	99002624		Arm, Wash (upper)				$ 32.72
7	W10120548		Dishrack, Lower		Appelez-nous	-
8	WP99002780		Wheel Assembly Lower   (Replaces: 99002780)			Immediately	$ 9.90
9	99003069		Cage, Ball Bearing				$ 6.26
10	99003068		Bearing, Ball				$ 5.83
11	99002671		Shelf,cup Upper				$ 21.17
12	99003053		Guard, Rack (lower)				$ 9.96
12	99003052		Guard, Rack (upper)				$ 5.01
13	99003147		Wheel Assembly (upper)				$ 9.42
14	99003527		Clip, Adjustable Tine				$ 20.41
15	99003497		Tine, Convertable (rear)				$ 26.28
16	WP6-918873		Basket, Silverware   (Replaces: 99002683)			Immediately	$ 54.28
17	99003496		Tines, Convertable (front)				$ 26.38
18	WP99002687		Pivot, Convertable   (Replaces: 99002687)				$ 7.00
19	99003459		Handle, Front		Appelez-nous	-
20	99003460		Handle, Back		Appelez-nous	-
21	99003010		Screw Tine		Appelez-nous	-
