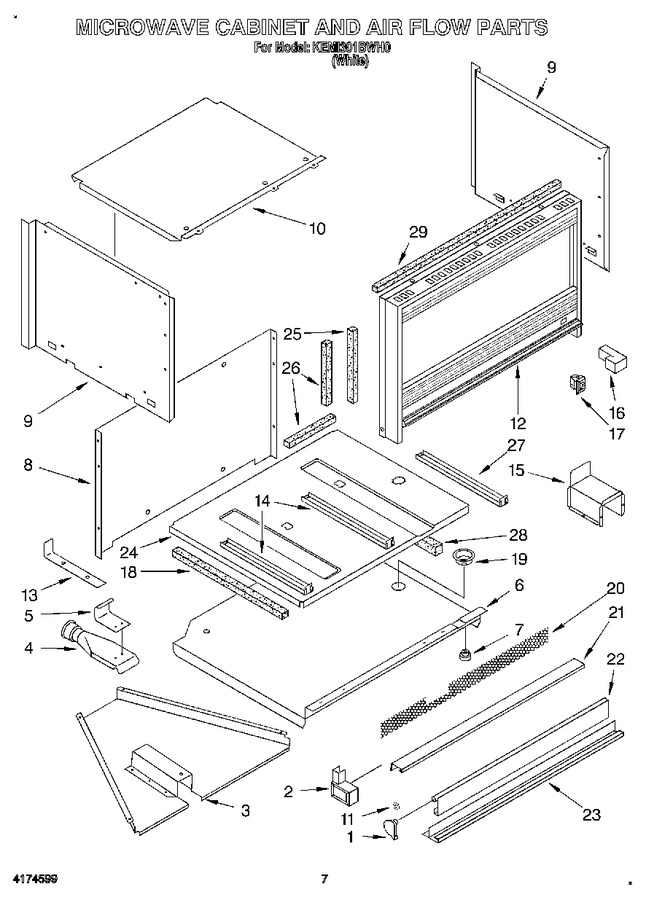

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 3148471 | End Trim (l.h. White) |
|
- | |||||
| 1 | 3148472 | End Trim (r.h. White) |
|
- | |||||
| 2 | 3188742 | End Cap (white Model, R.h.) |
|
- | |||||
| 2 | 3188741 | End Cap (white Model, L.h.) |
|
- | |||||
| 3 | 3170178 | Box Air |
|
- | |||||
| 3 | WP488729 | Screw (Replaces: 3148107) |
|
Immediately | $ 7.01 | ||||
| 4 | 312696 | Vent Tube |
|
- | |||||
| 5 | 3187423 | Support, Vent Tube |
|
- | |||||
| 5 | 254225 | Screw 8bt X 1/4 (2) |
|
- | |||||
| 6 | 3147494 | Support Plate |
|
- | |||||
| 6 | WP488729 | Screw, 8-18 X 1/2 (7) (Replaces: 3148107) |
|
Immediately | $ 7.01 | ||||
| 7 | 309552 | Snap Bushing |
|
- | |||||
| 8 | WP488729 | Screw, 8-18 X 1/2 (10) (Replaces: 3148107) |
|
Immediately | $ 7.01 | ||||
| 8 | 3186981 | Cover, Rear |
|
- | |||||
| 9 | 3186984 | Side Panel, L.h. |
|
- | |||||
| 9 | 3186982 | Side Panel, R.h. |
|
- | |||||
| 9 | WP488729 | Screw, 8-18 X 1/2 (6) (Replaces: 3148107) |
|
Immediately | $ 7.01 | ||||
| 10 | 3186983 | Panel, Top |
|
- | |||||
| 10 | 307748 | Screw |
|
- | |||||
| 10 | WP488729 | Screw (Replaces: 3148107) |
|
Immediately | $ 7.01 | ||||
| 11 | 3148905 | Washer |
|
- | |||||
| 12 | 3188345 | Trim, Outside (white Model) |
|
- | |||||
| 13 | WP488729 | Screw (Replaces: 3148107) |
|
Immediately | $ 7.01 | ||||
| 13 | 3187369 | Brace, M/w |
|
- | |||||
| 14 | WP488729 | Screw (Replaces: 3148107) |
|
Immediately | $ 7.01 | ||||
| 14 | 3179972 | Rail, Chassis |
|
- | |||||
| 15 | 3187288 | Baffle, M/w Back |
|
- | |||||
| 16 | 3187143 | Seal, Foam |
|
- | |||||
| 17 | 3182718 | Switch, Rocker (white) |
|
- | |||||
| 18 | WP488729 | Screw (Replaces: 3148107) |
|
Immediately | $ 7.01 | ||||
| 18 | 3187142 | Seal, Foam |
|
- | |||||
| 19 | 3147647 | Bushing, Snap |
|
- | |||||
| 20 | 3187410 | Trim, Oven Vent |
|
- | |||||
| 21 | 3190626 | Trim, Top (white) |
|
- | |||||
| 21 | 342043 | Trim, Top (screw, 10-32 X .38 (2)) |
|
- | |||||
| 22 | 3190626 | Door, Vent (white) |
|
- | |||||
| 23 | 342043 | Screw |
|
- | |||||
| 23 | 3148618 | Trim, Bottom |
|
- | |||||
| 23 | WP965173 | Screw, (Replaces: 246132) |
|
Immediately | $ 9.65 | ||||
| 24 | 3147501 | Panel, Support |
|
- | |||||
| 24 | WP488729 | Screw (Replaces: 3148107) |
|
Immediately | $ 7.01 | ||||
| 25 | 3187306 | Seal, Foam |
|
- | |||||
| 26 | 3187305 | Seal, Foam |
|
- | |||||
| 27 | WP488729 | Screw (Replaces: 3148107) |
|
Immediately | $ 7.01 | ||||
| 27 | 3179973 | Rail, M/w |
|
- | |||||
| 28 | 3187142 | Seal, Foam |
|
- | |||||
| 29 | 3188645 | Screw |
|
- | |||||
| 29 | 3147590 | Seal, Foam |
|
- |
