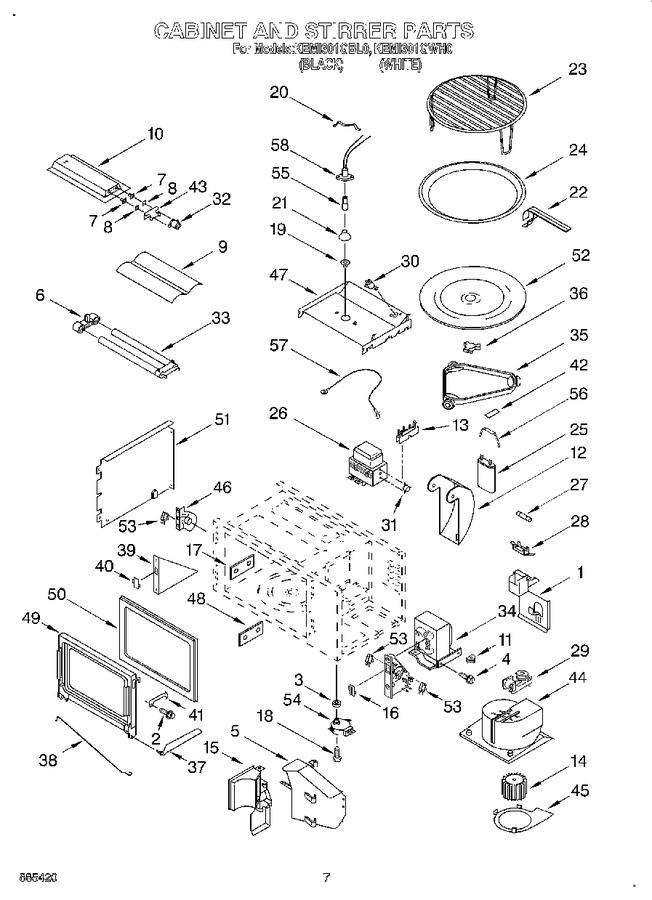

SELECT A DIAGRAM

01 - Oven


02 - Control Panel, Literature


03 - Oven Door


04 - Latch


05 - Internal Oven


06 - Cabinet And Stirrer


07 - Microwave Compartment


08 - Top Venting


09 - Microwave Door, Optional


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	4375299		Bracket, Capacitor		Appelez-nous	-
2	4375313		Screw		Appelez-nous	-
3	4375037		Rubber Ring		Appelez-nous	-
4	4375038		Screw		Appelez-nous	-
5	4375314		Air Duct, Magnetron		Appelez-nous	-
6	4375253		Support, Tube		Appelez-nous	-
7	4375254		Plug, Ceramic		Appelez-nous	-
8	4375255		Bushing		Appelez-nous	-
9	4375256		Reflector		Appelez-nous	-
10	4375257		Chamber, Reflector		Appelez-nous	-
11	4375315		Damper		Appelez-nous	-
12	4375260		Duct, Inlet		Appelez-nous	-
13	4375316		Insulation, Switch		Appelez-nous	-
14	4375322		Fan Wheel				$ 38.29
15	4375317		Duct, Air		Appelez-nous	-
16	4375264		Block, Slide		Appelez-nous	-
17	4375248		Cover Plate, Upper		Appelez-nous	-
18	8206180		Screw   (Replaces: 4375035)				$ 11.55
19	W11193483		Lens, Lamp   (Replaces: 4375318)			Immediately	$ 89.85
20	W10465869		Spring   (Replaces: 4375319)			Immediately	$ 88.94
21	423107022541		Reflector   (Replaces: 4375320)				$ 73.63
22	W10851464		Handle, Pan   (Replaces: 4378400)				$ 22.35
23	4375276		Rack		Appelez-nous	-
24	W11512490		Crisp Plate   (Replaces: 4375191)			Immediately	$ 109.35
25	WP4375020		Capacitor   (Replaces: 4375020)				$ 180.65
26	W10245183		Magnetron   (Replaces: 4375072)			Immediately	$ 220.91
27	WP4375321		Fuse   (Replaces: 4375321)			Immediately	$ 16.45
28	W10245194		Holder, Fuse   (Replaces: 4375231)				$ 74.84
29	4375278		Motor, Blower				$ 224.90
30	4375279		Thermostat				$ 50.64
31	WP4375079		Thermostat   (Replaces: 4375079)				$ 78.44
32	4375281		Thermostat				$ 57.27
33	4375282		Q Tube Assembly		Appelez-nous	-
34	WP4375286		Transformer   (Replaces: 4375286)				$ 296.24
35	4375344		Ring, Turntable		Appelez-nous	-
36	WP8183788		Shaft, Turntable   (Replaces: 4375345)				$ 24.08
37	WP4375324		Hinge, Door (right)   (Replaces: 4375324)				$ 79.40
37	WP4375323		Hinge, Door (left)   (Replaces: 4375323)				$ 79.70
38	WP4451009		Torsion Spring   (Replaces: 4451009)				$ 120.44
39	4375327		Bracket, Hinge (left)				$ 39.14
39	4375328		Bracket, Hinge (right)		Appelez-nous	-
40	4375329		Inlet		Appelez-nous	-
41	4375330		Strap, Door		Appelez-nous	-
42	4375331		Plate, Grill		Appelez-nous	-
43	4375332		Bracket		Appelez-nous	-
44	4375333		Fan Cap		Appelez-nous	-
45	4375334		Fan Cap Bottom		Appelez-nous	-
46	W10727408		Holder, Switch (right)   (Replaces: 4375336)			Immediately	$ 218.06
46	W10727408		Holder, Switch (left)   (Replaces: 4375335)			Immediately	$ 218.06
47	4375337		Isolation Plate		Appelez-nous	-
48	4375338		Cover Plate				$ 38.98
49	4375339		Plate, Door		Appelez-nous	-
50	4375340		Inner Frame				$ 62.72
51	4375341		Side Plate (left)		Appelez-nous	-
51	4375342		Side Plate (right)		Appelez-nous	-
52	W11373838		Turntable   (Replaces: 4375343)			Immediately	$ 70.65
53	W10211972		Switch   (Replaces: 4375346)			Immediately	$ 47.16
54	W10642989		Motor, Turntable   (Replaces: 4375347)			Immediately	$ 171.39
55	WPW10440740		Lamp   (Replaces: 4375348)			Immediately	$ 33.20
56	WPW10687786		Rectifier   (Replaces: 4375349)			Immediately	$ 27.30
57	4375350		Cable		Appelez-nous	-
58	4375351		Holder, Lamp		Appelez-nous	-
