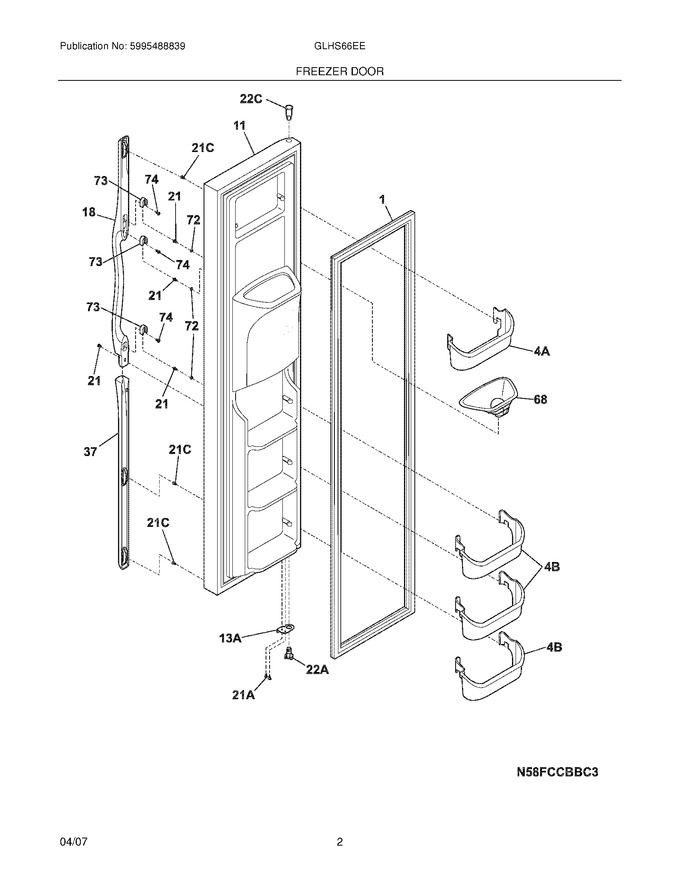

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
11	241668112		Door-frzr,white ,complete Assy				$ 427.24
18	241711704		Handle-door,white ,frzr		Appelez-nous	-
21	218781101		Screw,pan Head ,8-18 X 0.625				$ 15.60
37	241711601		Trim-handle,30.13`` ,white ,lower		Appelez-nous	-
68	241525101		Chute-ice				$ 82.25
72	240421701		Button-handle Mtg,dovetail				$ 14.81
73	218396700		Block-handle Mtg, Dovetail			Immediately	$ 45.36
74	215503204		Screw,cr Pan Hd ,10-16				$ 14.96
13A	240581902		Door Stop,white ,frzr				$ 47.03
21A	5303323137		Screw,10-32 X 1/2   (Replaces: 240598402)				$ 11.88
21C	240521304		Screw,no.8-18 X 3/4				$ 11.08
22A	242000501		Bearing-hinge(frz),closer   (Replaces: 240328202)				$ 7.14
22C	240328402		Bearing-hinge,natural ,upper				$ 19.85
4A	240334201		Bin-door,frzr-upper				$ 67.21
4B	240351601		Bin-door			Immediately	$ 58.73
F1	241786014		Gasket-frzr Door,white ,magnetic   (Replaces: 241674802)				$ 95.17
NI	240552102		Harness-wiring,door				$ 77.60
NI	241806601		Connector-water,straight			Immediately	$ 70.56
NI	5303918256		Dispenser Heater Kit				$ 474.16
