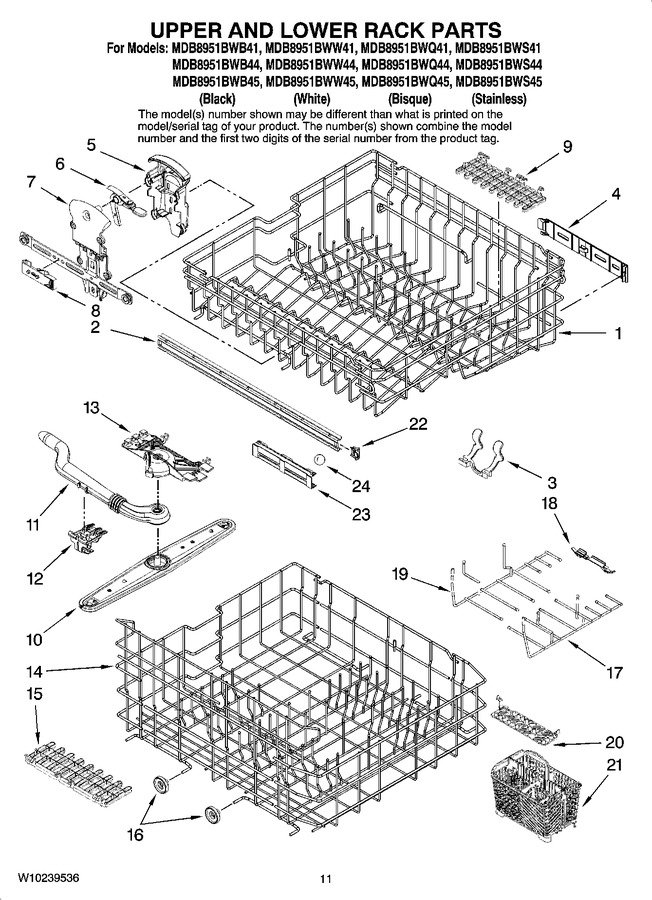

SELECT A DIAGRAM

01 - Door And Panel Parts


02 - Control Panel Parts


03 - Door And Latch Parts


04 - Lower Washarm Parts


05 - Heater Parts


06 - Fill And Overfill Parts


07 - Tub And Frame Parts


08 - Pump And Motor Parts


09 - Upper And Lower Rack Parts


10 - Upper Wash And Rinse Parts, Optional Parts (not Included)


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W10153389		Dishrack, Upper (includes Items 14, 15, 16, 17, 18 & 19)		Appelez-nous	-
2	99003066		Rail, Inner Slide		Appelez-nous	-
3	99002696		Clip, Cup				$ 92.17
4	99003053		Guard, Rack (low Side)				$ 9.96
4	99003052		Guard, Rack (high Side)				$ 5.01
5	99003011		Cover, Rack Adjuster				$ 5.75
6	99003178		Lever, Rack Adjuster				$ 55.08
7	WPW10153533		Rack, Adjuster (left)   (Replaces: 99003586)			Immediately	$ 137.39
7	99003587		Rack, Adjuster (right)		Appelez-nous	-
8	99003020		Stabilizer, Rack Adjuster				$ 37.77
9	99002671		Shelf,cup Upper				$ 21.17
10	99002624		Arm, Wash				$ 32.72
11	99002679		Wash Manifold Assembly		Appelez-nous	-
12	99002670		Clip, Manifold (back)		Appelez-nous	-
13	99002669		Clip, Manifold (front)				$ 5.84
14	W10120548		Dishrack, Lower		Appelez-nous	-
15	99003495		Shelf, Cup (lower)		Appelez-nous	-
16	WP99002780		Wheel Assembly   (Replaces: 99002780)			Immediately	$ 9.90
17	99003496		Tine, Convertible				$ 26.38
18	WP99002687		Pivot, Tine   (Replaces: 99002687)				$ 7.00
19	99003497		Tine, Convertible (rear)				$ 26.28
20	99002697		Cover, Silverware Basket		Appelez-nous	-
21	WP6-918873		Basket, Silverware   (Replaces: 99002683)			Immediately	$ 54.28
22	W10173301		Stop, Rail		Appelez-nous	-
23	99003069		Cage, Ball Bearing				$ 6.26
24	99003068		Bearing, Ball				$ 5.83
