SELECT A DIAGRAM

01 - Oven, Literature

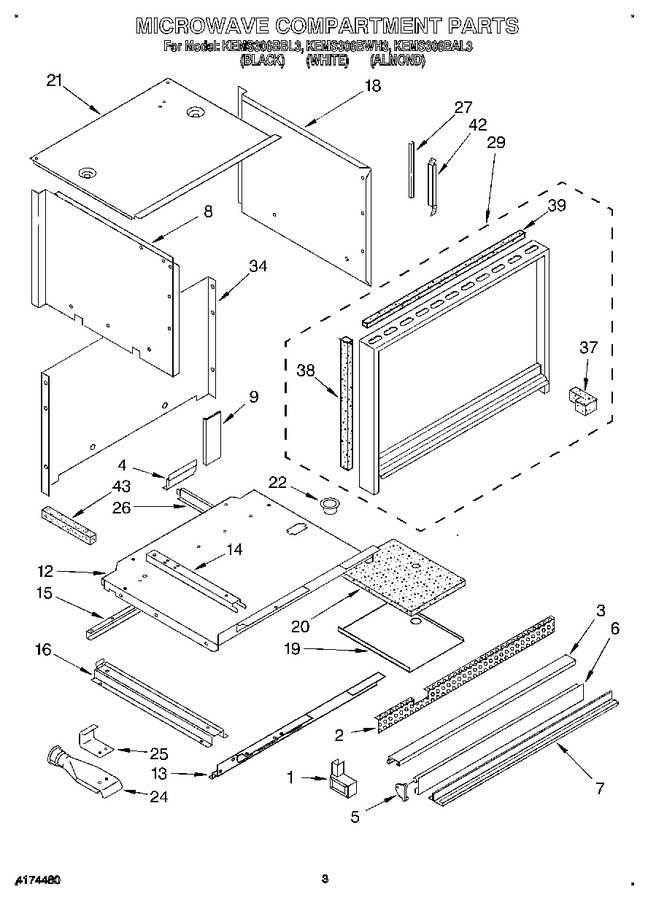

02 - Microwave Compartment


03 - Cabinet And Stirrer, Optional


04 - Magnetron And Air Flow


05 - Cabinet


06 - Door And Latch


07 - Control Panel


08 - Oven Door


09 - Wiring Harness


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	3188820		End Cap (white Model, Rh)		Appelez-nous	-
1	3148905		End Cap (washer)		Appelez-nous	-
1	3188744		End Cap (almond Model, Rh)		Appelez-nous	-
1	3149268		End Cap (black Model, Lh)		Appelez-nous	-
1	3188819		End Cap (white Model, Lh)		Appelez-nous	-
1	3188743		End Cap (almond Model, Lh)		Appelez-nous	-
1	3149269		End Cap (black Model, Rh)		Appelez-nous	-
2	3187410		Trim, Oven Vent		Appelez-nous	-
3	3148678		Trim, Top (black Model)		Appelez-nous	-
3	342043		Trim, Top (screw (2))		Appelez-nous	-
3	WP965173		Trim, Top (screw (2))   (Replaces: 246132)			Immediately	$ 9.65
3	3188351		Trim, Top (almond Model)		Appelez-nous	-
3	3188350		Trim, Top (white Model)		Appelez-nous	-
4	3181657		Baffle, Bottom		Appelez-nous	-
4	WP488729		Screw (2)   (Replaces: 3148107)			Immediately	$ 7.01
5	3148698		End Trim, Vent Door (black, Rh)		Appelez-nous	-
5	3148697		End Trim, Vent Door (black, Lh)		Appelez-nous	-
5	3148472		End Trim, Vent Door (white & Almond Mdl, Rh)		Appelez-nous	-
5	3148471		End Trim, Vent Door (white & Almond Mdl, Lh)		Appelez-nous	-
6	3187993		Door, Vent (white Model)		Appelez-nous	-
6	3150137		Door, Vent (black Model)		Appelez-nous	-
6	3187991		Door, Vent (almond Model)		Appelez-nous	-
7	342043		Screw (2)		Appelez-nous	-
7	3148618		Trim, Bottom		Appelez-nous	-
8	3187372		Side Panel L.h.		Appelez-nous	-
8	WP488729		Screw (6)   (Replaces: 3148107)			Immediately	$ 7.01
9	313755		Seal, Foam		Appelez-nous	-
9	3150512		Baffle, Rear		Appelez-nous	-
9	WP488729		Screw (2)   (Replaces: 3148107)			Immediately	$ 7.01
12	3186503		Panel, Support		Appelez-nous	-
13	3185951		Support, Brace		Appelez-nous	-
13	WP488729		Screw (7)   (Replaces: 3148107)			Immediately	$ 7.01
14	3181067		Screw (4)		Appelez-nous	-
14	3179973		Rail, Microwave		Appelez-nous	-
15	3182347		Brace, Bottom		Appelez-nous	-
15	WP488729		Screw (3)   (Replaces: 3148107)			Immediately	$ 7.01
16	3150513		Rail, Chassis		Appelez-nous	-
16	WP488729		Screw (8)   (Replaces: 3148107)			Immediately	$ 7.01
18	3186987		Side Panel, R.h.		Appelez-nous	-
18	WP488729		Screw (6)   (Replaces: 3148107)			Immediately	$ 7.01
19	3150510		Retainer, Insulation		Appelez-nous	-
20	3150652		Insulation		Appelez-nous	-
21	307831		Screw		Appelez-nous	-
21	309100		Screw (2)		Appelez-nous	-
21	WP488729		Screw (9)   (Replaces: 3148107)			Immediately	$ 7.01
21	3186983		Panel, Top		Appelez-nous	-
22	3147647		Bushing, Snap		Appelez-nous	-
24	312696		Vent Tube		Appelez-nous	-
25	3187423		Support, Vent Tube		Appelez-nous	-
25	254225		Screw (2)		Appelez-nous	-
26	3150511		Baffle, Bottom		Appelez-nous	-
26	WP488729		Screw (2)   (Replaces: 3148107)			Immediately	$ 7.01
27	3147757		Protector, Edge		Appelez-nous	-
29	3188930		Frame, Outer (white Model)		Appelez-nous	-
29	3188366		Frame, Outer (almond Model)		Appelez-nous	-
29	3188364		Frame, Outer (black Model)		Appelez-nous	-
34	WP488729		Screw (10)   (Replaces: 3148107)			Immediately	$ 7.01
34	3186981		Cover, Rear		Appelez-nous	-
37	3147750		Seal, Foam (2)		Appelez-nous	-
38	3147595		Seal, Foam Side (2) (black Model)		Appelez-nous	-
38	3184861		Seal, Foam Side (2) (white & Almond Model)		Appelez-nous	-
39	3147596		Seal, Foam Top (black Model)		Appelez-nous	-
39	3184862		Seal, Foam Top (white & Almond Model)		Appelez-nous	-
42	3150131		Brace, Extension		Appelez-nous	-
42	3150133		Screw (2)		Appelez-nous	-
43	313758		Seal, Foam		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
