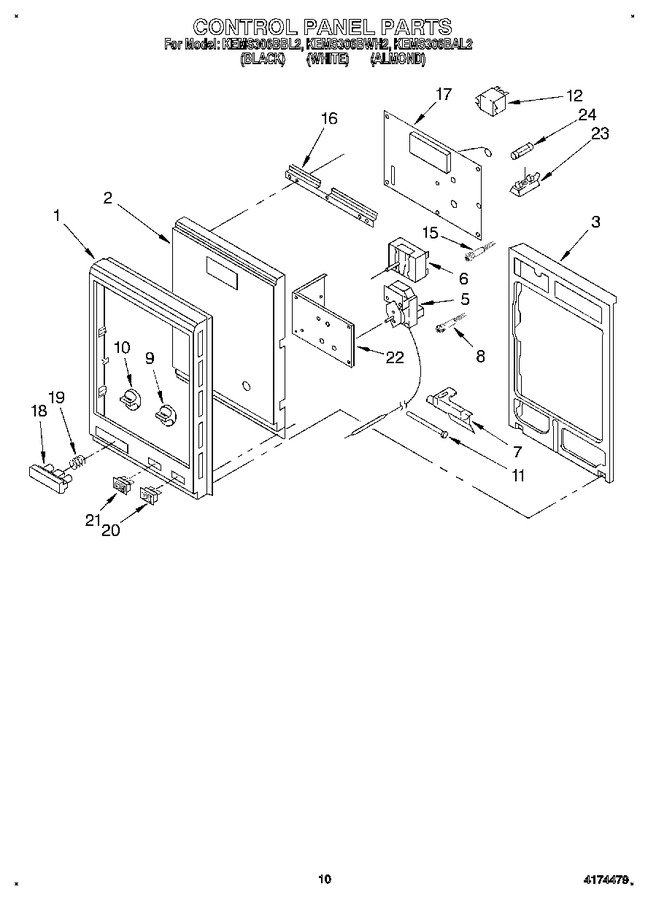

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	4312969		Frame, Control Panel (black)		Appelez-nous	-
1	4312970		Frame, Control Panel (white)		Appelez-nous	-
1	4312971		Frame, Control Panel (almond)		Appelez-nous	-
1	4312921		Frame, Control Panel (screw (2))		Appelez-nous	-
2	4357320		Switch Membrane (control Module) (screw (2))		Appelez-nous	-
2	4312965		Switch Membrane (control Module) (almond)		Appelez-nous	-
2	4312964		Switch Membrane (control Module) (white)		Appelez-nous	-
2	4312963		Switch Membrane (control Module) (black)		Appelez-nous	-
3	4312976		Bracket, Control (mounting)		Appelez-nous	-
5	3185629		Thermostat		Appelez-nous	-
5	3186941		Screw		Appelez-nous	-
6	3186940		Screw		Appelez-nous	-
6	3178238		Switch, Selector		Appelez-nous	-
7	4312853		Lever, Open		Appelez-nous	-
8	3147517		Light, Indictor		Appelez-nous	-
9	3149106		Knob, Control Adjustable		Appelez-nous	-
10	3149116		Knob, Control		Appelez-nous	-
11	4312854		Shaft, Opener		Appelez-nous	-
12	246131		Screw (2)		Appelez-nous	-
12	3185879		Relay, Power		Appelez-nous	-
15	3149034		Light, Indicator (2)		Appelez-nous	-
15	313818		Screw (4)		Appelez-nous	-
16	4312977		Bracket, Mounting		Appelez-nous	-
16	4174838		Screw (3)		Appelez-nous	-
17	4313632		Screw (8)		Appelez-nous	-
17	4312962		Microcomputer		Appelez-nous	-
18	4312973		Button, Open (white)		Appelez-nous	-
18	4312972		Button, Open (black)		Appelez-nous	-
18	4312974		Button, Open (almond)		Appelez-nous	-
19	4312975		Spring, Button		Appelez-nous	-
20	WP4314961		Switch, Rocker Oven Light (black)   (Replaces: 314134)				$ 80.53
20	WP4314961		Switch, Rocker Oven Light (white)   (Replaces: 3182371)				$ 80.53
20	WP4314961		Switch, Rocker Oven Light (almond)   (Replaces: 3182372)				$ 80.53
21	WP4314961		Switch, Rocker Broil (black)   (Replaces: 3182373)				$ 80.53
21	WP4314961		Switch, Rocker Broil (almond)   (Replaces: 3182375)				$ 80.53
21	WP4314961		Switch, Rocker Broil (white)   (Replaces: 3182374)				$ 80.53
22	3150124		Bracket, Control Mounting		Appelez-nous	-
23	4454949		Block, Fuse   (Replaces: 314121)				$ 81.63
23	WP488729		Screw (2)   (Replaces: 3148107)			Immediately	$ 7.01
24	WPW10017410		Fuse   (Replaces: 309796)			Immediately	$ 19.05
