SELECT A DIAGRAM

01 - Cover


03 - Freezer Door


05 - Refrigerator Door


07 - Cabinet


09 - Shelves


11 - Controls


13 - System

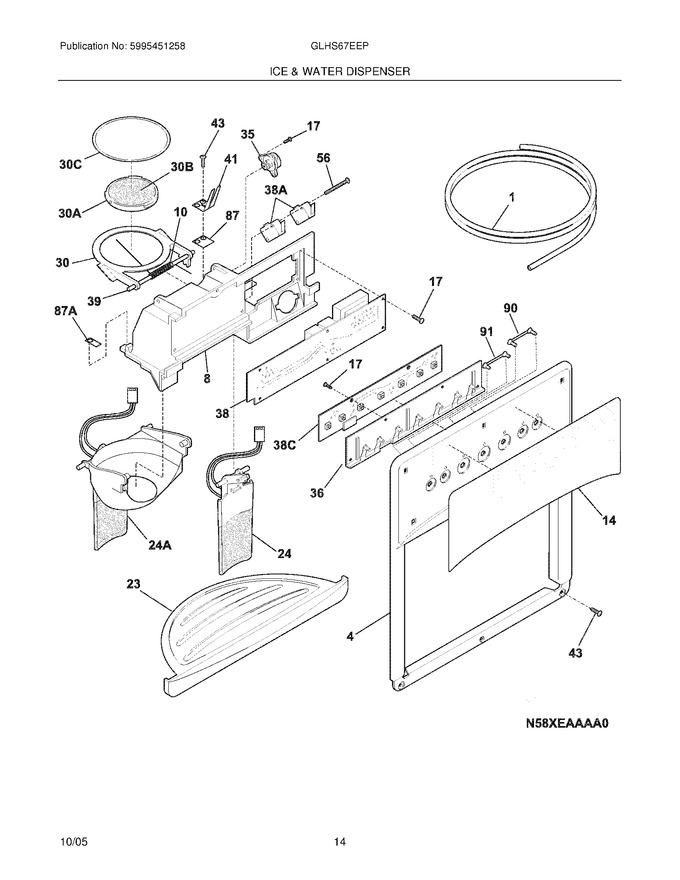

15 - Ice & Water Dispenser


17 - Ice Container


19 - Ice Maker


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	218976409		Tube-water-door			Immediately	$ 60.25
4	5304421848		Cover-module,bisque		Appelez-nous	-
8	5304422144		Module-dispenser,bisque		Appelez-nous	-
10	241688901		Spring-torsion   (Replaces: 5304426649)			Immediately	$ 21.27
14	240323975		Label-module Cover,bisque		Appelez-nous	-
17	241679801		Screw   (Replaces: 5304421619)				$ 14.18
23	241649002		Drip Tray,bisque		Appelez-nous	-
24	5304433614		Actuator-water,bisque		Appelez-nous	-
30	241688401		Door Assy-ice Chute   (Replaces: 5304421628)				$ 49.62
35	241689301		Damper-rotary   (Replaces: 5304421620)				$ 70.52
36	5304421824		Carrier		Appelez-nous	-
38	5304433619		Board-power		Appelez-nous	-
39	241688801		Pin-hinge   (Replaces: 5304421627)				$ 43.24
41	241689001		Spring-actuator   (Replaces: 5304421829)				$ 21.97
43	215296300		Screw,plask H/l ,no.6 X 3/8		Appelez-nous	-
56	241689201		Screw-micro Switch,pan Head   (Replaces: 5304421830)				$ 13.46
87	241688302		Bearing Plate   (Replaces: 5304421622)				$ 19.85
90	5304421831		Light Pipe,reflector				$ 22.52
91	5304421850		Light Pipe,reflector ,short		Appelez-nous	-
24A	5304433611		Actuator-ice,bisque		Appelez-nous	-
30A	241688501		Door Center   (Replaces: 5304421624)				$ 52.97
30B	241688601		Insulation-door   (Replaces: 5304421625)				$ 63.17
30C	241688701		Door Seal   (Replaces: 5304421629)				$ 40.46
38A	241689106		Switch-micro,single Pole ,double Throw   (Replaces: 5304421617)			Immediately	$ 8.60
38C	5304430811		Harness-ribbon Cable		Appelez-nous	-
38C	5304441058		Board-control		Appelez-nous	-
87A	241688301		Bearing Plate   (Replaces: 5304421621)				$ 19.85
NI	5303918256		Dispenser Heater Kit				$ 474.16
NI	218976901		Tube-water Inlet,inlet Valve ,to Ice Maker			Immediately	$ 81.50
NI	5304426535		Insulator-electrical		Appelez-nous	-
NI	218976903		Tube-water Inlet,inlet Valve ,to Filter				$ 70.16
NI	218976907		Tube-water Inlet,valve To Door				$ 67.73
NI	240561701		Seal-water Inlet,inlet Valve ,to Ice Maker			Immediately	$ 20.56

    View Diagram in Separate Window       Print Part List
