SELECT A DIAGRAM

01 - Control Panel


02 - Door


03 - Inner Tub


04 - Outer Tub


05 - Pump & Motor


06 - Track & Rack Assembly


07 - Wiring Information

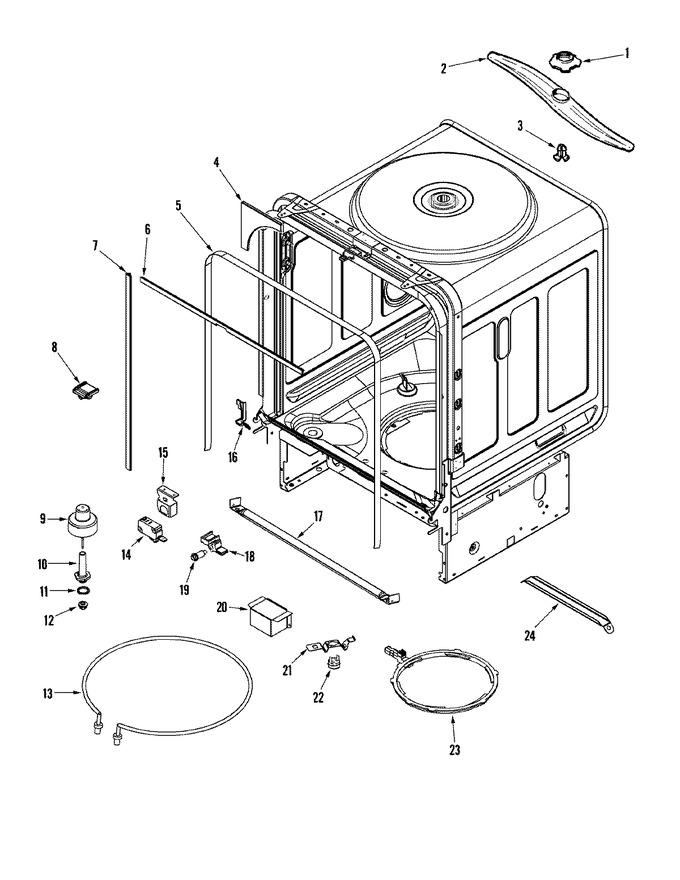

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	912680		Outlet, Snap	10			$ 22.87
2	99002061		Arm, Wash (upr-gray)	10	Appelez-nous	-
3	Y912681		Retainer, Snap Spray	10	Appelez-nous	-
4	99002162		Trim, Corner (top)	10	Appelez-nous	-
5	99002140		Seal, Door	10			$ 84.23
6	99002163		Trim, Edge (top/btm)	10	Appelez-nous	-
7	99002165		Trim, Edge (sides)	10	Appelez-nous	-
8	99002159		Bracket, Door Centering	10	Appelez-nous	-
9	99002221		Float	10			$ 42.93
10	99002145		Standpipe, Float	10	Appelez-nous	-
11	99002146		Seal, Standpipe	10	Appelez-nous	-
12	99002147		Nut, Standpipe	10	Appelez-nous	-
13	99001995		Element, Heating	10			$ 59.30
13	99001333		Sleeve, Insulating	10	Appelez-nous	-
13	Y913079		O-ring, Heater	10			$ 5.83
13	99002208		Nut, Heating Element	10	Appelez-nous	-
14	912012		Screw	10	Appelez-nous	-
14	99002560		Switch, Water Level Control	10			$ 31.06
15	WP489128		Screw   (Replaces: 912365)	10			$ 9.79
15	99001727		Bracket, Water Level Switch	10	Appelez-nous	-
16	99002182		Edge, Drip (lt)	10	Appelez-nous	-
16	99002181		Edge, Drip (rt)	10	Appelez-nous	-
17	99002190		Brace, Bottom	10	Appelez-nous	-
18	912014		Lever, Actuator	10			$ 52.13
19	912015		Pin, Lever Pivot	10	Appelez-nous	-
20	WP489128		Screw   (Replaces: 912365)	10			$ 9.79
20	4396672		Clamp, Cable   (Replaces: 400321)	10		Immediately	$ 17.38
20	912563		Box, Terminal	10	Appelez-nous	-
21	99001008		Clip, Thermostat	10	Appelez-nous	-
22	99001852		Thermostat, Limiting	10			$ 33.66
23	Y912686		Ring, Locking	10	Appelez-nous	-
23	99002161		Ratchet, Lock Ring	10	Appelez-nous	-
24	99002173		Gusset, Tub Support	10	Appelez-nous	-

    View Diagram in Separate Window       Print Part List
