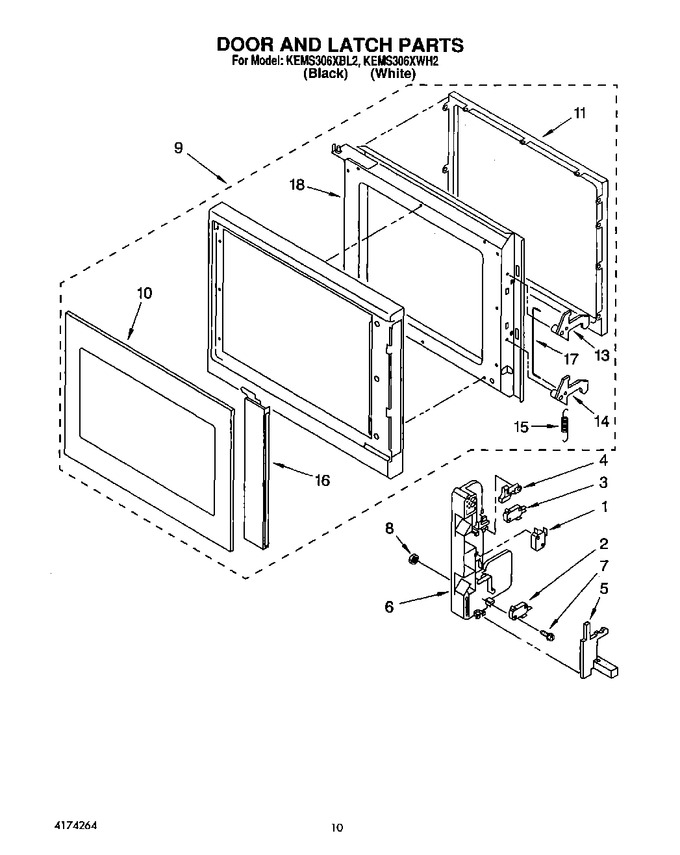

SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 4312819 | Switch And Fuse Assembly |
|
- | |||||
| 2 | 4392027 | Secondary Switch (Replaces: 4313611) |
|
$ 138.41 | |||||
| 3 | 4392027 | Damper Switch (Replaces: 4312948) |
|
$ 138.41 | |||||
| 4 | 4312877 | Hook, Lever |
|
- | |||||
| 5 | 4312878 | Latch Lever |
|
- | |||||
| 6 | 4312879 | Latch Hook |
|
- | |||||
| 7 | 4312917 | Screw |
|
- | |||||
| 8 | 4312923 | Nut |
|
- | |||||
| 9 | 4312998 | Door, Complete (almond) |
|
- | |||||
| 9 | 4312996 | Door, Complete (black) |
|
- | |||||
| 9 | 4312997 | Door, Complete (white) |
|
- | |||||
| 10 | 4312993 | Panel, Glass (black) |
|
- | |||||
| 10 | 4312994 | Panel, Glass (white) |
|
- | |||||
| 10 | 4312995 | Panel, Glass (almond) |
|
- | |||||
| 11 | 4312898 | Retainer Ring |
|
- | |||||
| 13 | 4312900 | Upper Latch |
|
- | |||||
| 14 | 4312901 | Lower Latch |
|
- | |||||
| 15 | 4312902 | Spring, Latch |
|
- | |||||
| 16 | 4312999 | Cover, Frame (black) |
|
- | |||||
| 16 | 4313000 | Cover, Frame (white) |
|
- | |||||
| 16 | 4313001 | Cover, Frame (almond) |
|
- | |||||
| 17 | 4312904 | Shaft, Latch |
|
- | |||||
| 18 | 4312896 | Liner, Door |
|
- |
