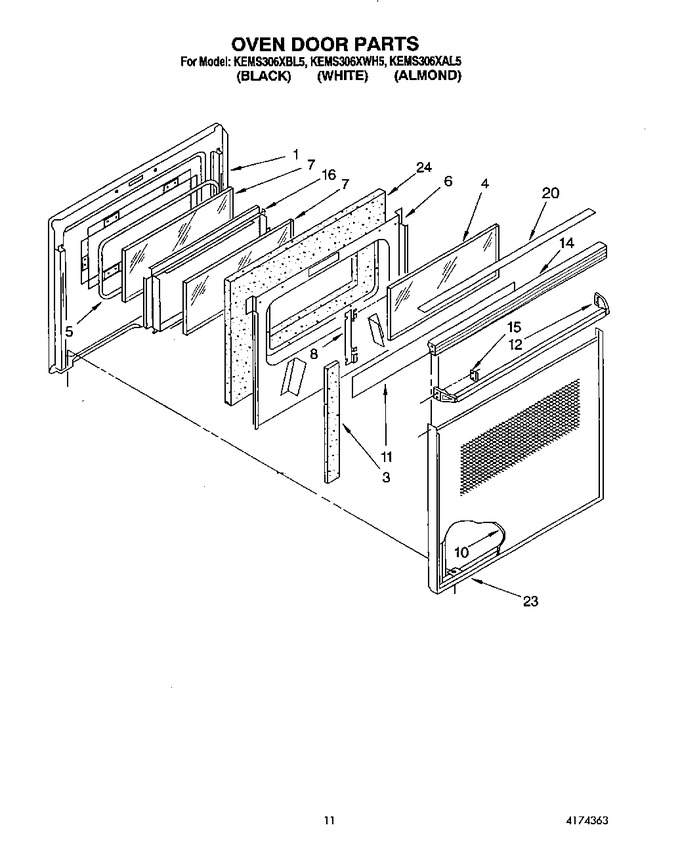

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	3172218		Liner, Door		Appelez-nous	-
3	3148441		Seal, Flange (2)		Appelez-nous	-
4	3169202		Glass, Clear		Appelez-nous	-
5	3148183		Seal, Door				$ 7.41
6	4173601		Screw (4)		Appelez-nous	-
6	3148159		Retainer, Insulation		Appelez-nous	-
7	WP3169203		Glass, Outer & Inner   (Replaces: 3169203)				$ 135.71
8	3148187		Retainer, Glass (2)		Appelez-nous	-
10	3148185		Glass, Panel (black)		Appelez-nous	-
10	3150348		Glass, Panel (almond)		Appelez-nous	-
10	3150347		Glass, Panel (white)		Appelez-nous	-
11	247326		Screw (2)		Appelez-nous	-
11	3148184		Foil		Appelez-nous	-
12	3183403		Handle, Door (white)		Appelez-nous	-
12	3149333		Handle, Door (screw, Black)				$ 5.33
12	3183402		Handle, Door (black)		Appelez-nous	-
12	3183404		Handle, Door (almond)		Appelez-nous	-
12	3185918		Handle, Door (screw)		Appelez-nous	-
14	3148223		Top, Door (black)		Appelez-nous	-
14	3149355		Door, Top (white & Almond Model)		Appelez-nous	-
15	WP355515		Screw (4)   (Replaces: 355515)				$ 6.90
15	3148282		Clip, Mtg (2)				$ 8.69
16	3185647		Screw (6)		Appelez-nous	-
16	3148234		Frame, Glass		Appelez-nous	-
20	247326		Screw (2)		Appelez-nous	-
20	3181363		Cap, Top		Appelez-nous	-
23	3148235		Frame, Door		Appelez-nous	-
24	3147951		Insulation, Door		Appelez-nous	-
