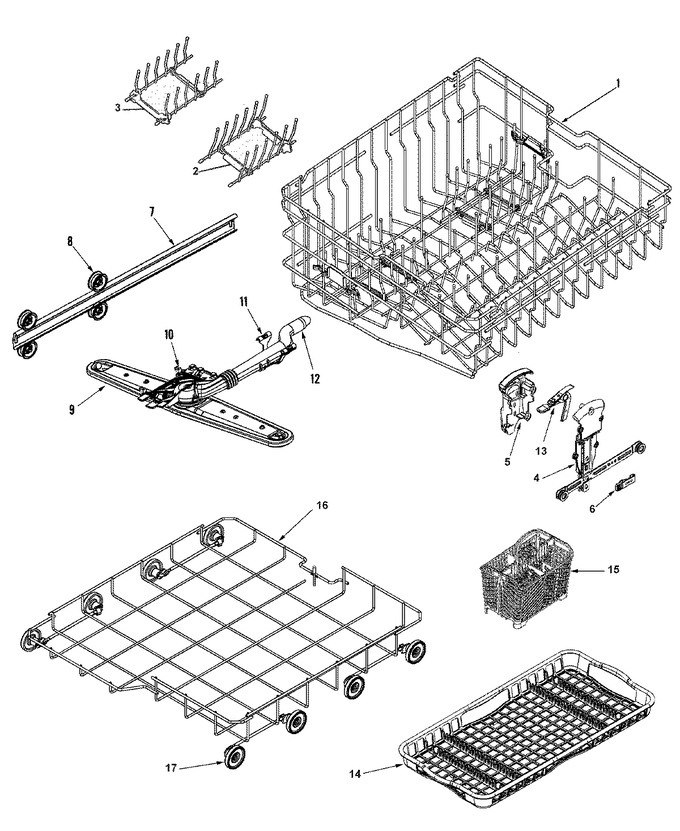

05 - Track & Rack Assembly (middle/lwr)


06 - Track & Rack Assembly (upr)


07 - Tub


08 - Water Distribution Assembly


09 - Wiring Information


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	99002905		Cap, Rack (dark Gray)	10			$ 23.63
1	6-920100		Rack Assy, Middle	10	Appelez-nous	-
1	99003627		Rack Assembly,middle (dk Gry)	10	Appelez-nous	-
2	99003640		Folding Tine Asy,mid Rear Dk G	10	Appelez-nous	-
3	99003639		Folding Tine Asy,mid Frt Dk G	10	Appelez-nous	-
4	99003010		Screw (t15) 8-18 X .500	23	Appelez-nous	-
4	99003585		Rack Adjuster Assy (rt)	23	Appelez-nous	-
4	99003584		Rack Adjuster Assy (lt)	10	Appelez-nous	-
5	99003011		Cover, Rack Adjuster (gray)	23			$ 5.75
6	99003020		Stabilizer, Rack Adjuster	23			$ 37.77
7	WPW10261227		Stop, Rack (gray)   (Replaces: 99002623)	10		Immediately	$ 6.93
7	99002621		Track, Rack	10			$ 56.82
8	WP99002947		Shaft, Tub Wheel   (Replaces: 99002343)	10		Immediately	$ 10.58
8	WPY912798		Washer, Tub Wheel   (Replaces: Y912798)	10			$ 6.90
8	WP99002947		Wheel, Tub   (Replaces: 99002622)	10		Immediately	$ 10.58
9	99002740		Screw, Truss Head (10-18x.75)	10			$ 6.24
9	99002739		Arm, Wash (middle)	10			$ 59.87
10	99002732		Clip, Middle Manifold (frt)	10	Appelez-nous	-
11	99002758		Clip, Middle Manifold (back)	10	Appelez-nous	-
12	99002793		Wash Manifold Assy (middle)	10	Appelez-nous	-
13	99003178		Lever, Adjuster (blue)	23			$ 55.08
14	99002748		Basket, Utility	10	Appelez-nous	-
15	6-918651		Split/fit Basket   (Replaces: 99002729)	10			$ 67.59
15	99002731		Cover, Split/fit Basket	10	Appelez-nous	-
15	6-918651		Basket, Split/fit   (Replaces: 99002730)	10			$ 67.59
16	99002962		Pan Rack Assembly	17	Appelez-nous	-
16	99002905		Cap, Rack (dark Gray)	10			$ 23.63
17	WP99002780		Wheel Assembly (lwr)   (Replaces: 99002780)	10		Immediately	$ 9.90
