Diagram # Part Number Description Series Availability Ships Price Add to Cart
1 3148928 End Cap, L.h. Appelez-nous -
1 342043 Screw (2) Appelez-nous -
1 3148929 End Cap, R.h. Appelez-nous -
2 312432 Trim, Oven Vent Appelez-nous -
3 342043 Trim, Top (screw (2)) Appelez-nous -
3 3149363 Trim, Top (white Or Almond Model) Appelez-nous -
3 3148678 Trim, Top (black Model) Appelez-nous -
3 WP965173 Trim, Top (screw (2))   (Replaces: 246132) In-Stock Immediately $ 9.65

4 3181657 Baffle, Bottom Appelez-nous -
4 WP488729 Screw (2)   (Replaces: 3148107) In-Stock Immediately $ 7.01

5 3148471 End Trim, Vent Door L.h. (white & Almond Model End Trim, Vent Door R.h.) Appelez-nous -
5 3148472 End Trim, Vent Door L.h. (white & Almond Model) Appelez-nous -
5 3148698 End Trim, Vent Door L.h. (black) Appelez-nous -
5 3148697 End Trim, Vent Door L.h. (black) Appelez-nous -
6 3150138 Door, Vent (white Or Almond Model) Appelez-nous -
6 3150137 Door, Vent (black Model) Appelez-nous -
7 342043 Screw (2) Appelez-nous -
7 3148618 Trim, Bottom Appelez-nous -
7 302251 Screw Appelez-nous -
8 WP488729 Screw (6)   (Replaces: 3148107) In-Stock Immediately $ 7.01

8 3147493 Side Panel, L.h. Appelez-nous -
9 WP488729 Screw (2)   (Replaces: 3148107) In-Stock Immediately $ 7.01

9 3150512 Baffle, Rear Appelez-nous -
9 313755 Seal, Foam Appelez-nous -
12 3150109 Panel, Support Appelez-nous -
13 3181656 Support, Brace Appelez-nous -
13 WP488729 Screw (7)   (Replaces: 3148107) In-Stock Immediately $ 7.01

14 3179973 Rail, Microwave Appelez-nous -
14 3181067 Screw (4) Appelez-nous -
15 WP488729 Screw (3)   (Replaces: 3148107) In-Stock Immediately $ 7.01

15 3182347 Brace, Bottom Appelez-nous -
16 WP488729 Screw (8)   (Replaces: 3148107) In-Stock Immediately $ 7.01

16 3150513 Rail, Chassis Appelez-nous -
17 3147647 Bushing, Snap Appelez-nous -
18 WP488729 Screw (6)   (Replaces: 3148107) In-Stock Immediately $ 7.01

18 3147500 Side Panel, R.h. Appelez-nous -
19 3150510 Retainer, Insulation Appelez-nous -
20 3150652 Insulation Appelez-nous -
21 3147499 Panel, Top Appelez-nous -
21 309100 Screw (2) Appelez-nous -
21 302251 Screw Appelez-nous -
21 WP488729 Screw (9)   (Replaces: 3148107) In-Stock Immediately $ 7.01

24 312696 Vent Tube Appelez-nous -
25 312698 Support, Vent Tube Appelez-nous -
25 254225 Screw (2) Appelez-nous -
26 3150511 Baffle, Bottom Appelez-nous -
26 WP488729 Screw (2)   (Replaces: 3148107) In-Stock Immediately $ 7.01

27 3147757 Protector, Edge Appelez-nous -
29 3172074 Frame, Outer (black) Appelez-nous -
29 3172075 Frame, Outer (white) Appelez-nous -
29 3172076 Frame, Outer (almond) Appelez-nous -
34 WP488729 Screw (10)   (Replaces: 3148107) In-Stock Immediately $ 7.01

34 3147491 Cover, Rear Appelez-nous -
37 3147750 Seal, Foam (2) Appelez-nous -
38 3147595 Seal, Foam Side (2) (black Model) Appelez-nous -
38 3149361 Seal, Foam Side (2) (white Or Almond Model) Appelez-nous -
39 3149362 Seal, Foam Top (white Or Almond Model) Appelez-nous -
39 3147596 Seal, Foam Top (black Model) Appelez-nous -
42 3150131 Brace, Extension Appelez-nous -
42 3150133 Screw (2) Appelez-nous -
43 313758 Seal, Foam Appelez-nous -

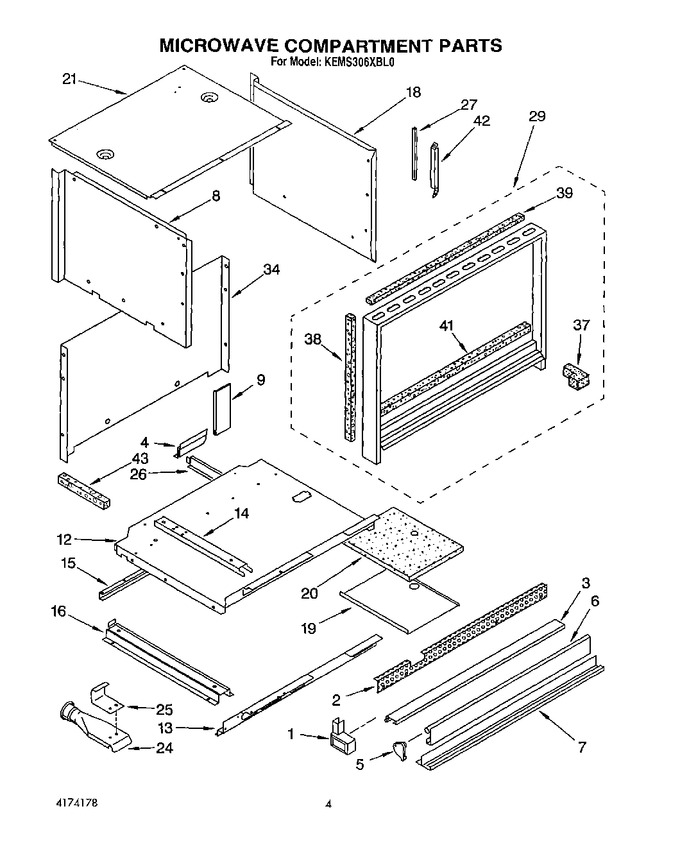

    View Diagram in Separate Window     Print Icon   Print Part List
