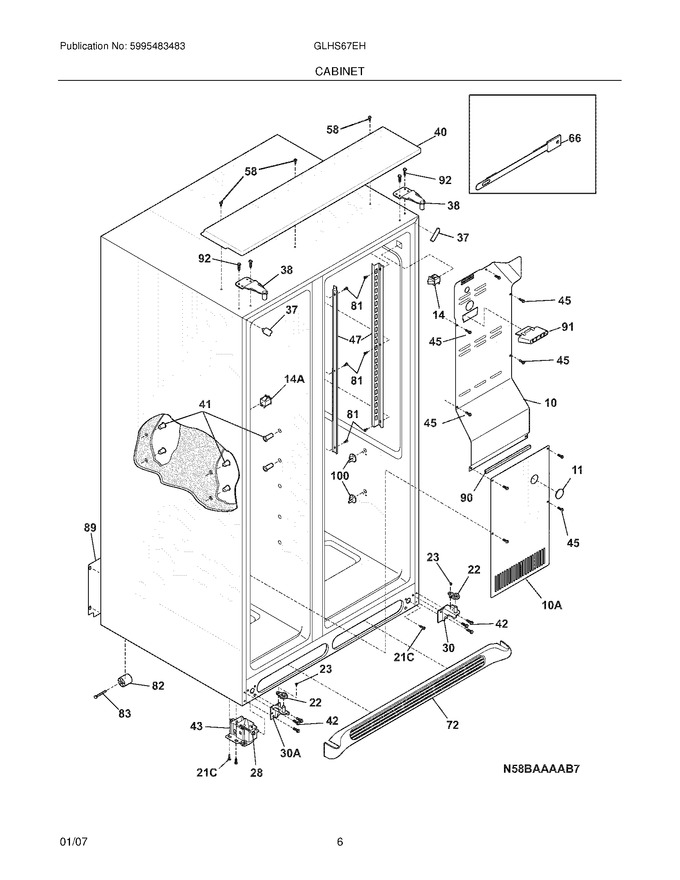

07 - Cabinet


09 - Shelves


11 - Controls


13 - System


15 - Ice & Water Dispenser


17 - Ice Container


19 - Ice Maker


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
10	240435912		Cover-air Duct				$ 123.23
11	5303208309		Plug-hole, Factory Test				$ 45.50
14	240505801		Switch-light/lamp				$ 66.63
22	240457701		Plate-door Closer			Immediately	$ 56.70
23	240402702		Screw-no.10-32 X 1/4 Flat Hd				$ 23.57
28	5304499445		Bolt-roller Adj,hex Washer Head ,1/4-20 X 4.020,(2) ,special   (Replaces: 240335502)			Immediately	$ 31.33
30	241603703		Bracket-lower Hinge, Ref		Appelez-nous	-
37	240337604		Trim-cabinet Corner,bisque ,(2)		Appelez-nous	-
38	240327207		Bracket-upper Hinge			Immediately	$ 57.50
40	241555102		Cover-hinge,bisque		Appelez-nous	-
41	241550801		Grommet-shelf Mtg,1.40`` Long				$ 63.70
42	240578902		Screw-hinge Mtg,hex Head ,1/4-20 X 5/8			Immediately	$ 14.18
43	5304499445		Roller Assy,adjustable ,front ,(2)   (Replaces: 240335005)			Immediately	$ 31.33
45	241500303		Screw,hex Washer Head ,8-18ab X 0.500			Immediately	$ 4.55
47	240349402		Channel-shelf Mtg,side ,(2)				$ 111.99
58	241595402		Screw-no.10-32 X 3/4				$ 6.57
66	5304424968		Damper Cover Assy				$ 110.09
72	240324410		Grille/kickplate,bisque				$ 44.36
81	5304455650		Screw,hex Washer Head ,8-15a X 0.625 ,low Profile				$ 14.18
82	5304418225		Roller,compressor Base ,rear ,(2)				$ 51.57
83	5304455655		Rivet,flat Head ,1/4 Od X 1-3/4 ,roller Pin			Immediately	$ 35.34
89	5304520905		Cover-access,w/label   (Replaces: 241733902)			Immediately	$ 74.03
90	218249808		Seal-coil Cover		Appelez-nous	-
91	240380101		Duct-ice Maker				$ 75.08
92	241710601		Screw,hex Washer Hd ,1/4 X 7/8 ,hinge Mtg				$ 13.46
100	241993101		Support,crisper Cover ,front ,(4)   (Replaces: 240423701)			Immediately	$ 5.62
100	241993001		Support,crisper Cover ,rear ,(4)   (Replaces: 240350802)			Immediately	$ 19.23
10A	241719711		Cover-evap Coil,lower   (Replaces: 240475911)				$ 105.80
14A	241547902		Switch-light/lamp,frzr Door   (Replaces: 241547901)			Immediately	$ 23.25
21C	218252201		Screw,no.8 Truss Hd ,10-32ca X 0.500			Immediately	$ 14.18
30A	241603704		Bracket-lower Hinge		Appelez-nous	-
NI	240518802		Pin-push,push-in ,plastic				$ 16.30
NI	241550701		Grommet-shelf Mtg,.96`` Long				$ 18.20
NI	240396801		Clamp,tube/wiring ,nylon ,black/natural				$ 19.13
NI	240494001		Plug,button ,cab Liner Holes   (Replaces: 240479601)			Immediately	$ 18.20
NI	5304414035		Paint,touch-up ,bisque				$ 13.46
