01 - Door And Panel Parts


02 - Control Panel Parts


03 - Door And Latch Parts


04 - Lower Washarm Parts


05 - Heater Parts


06 - Fill And Overfill Parts


07 - Tub And Frame Parts


08 - Pump And Motor Parts

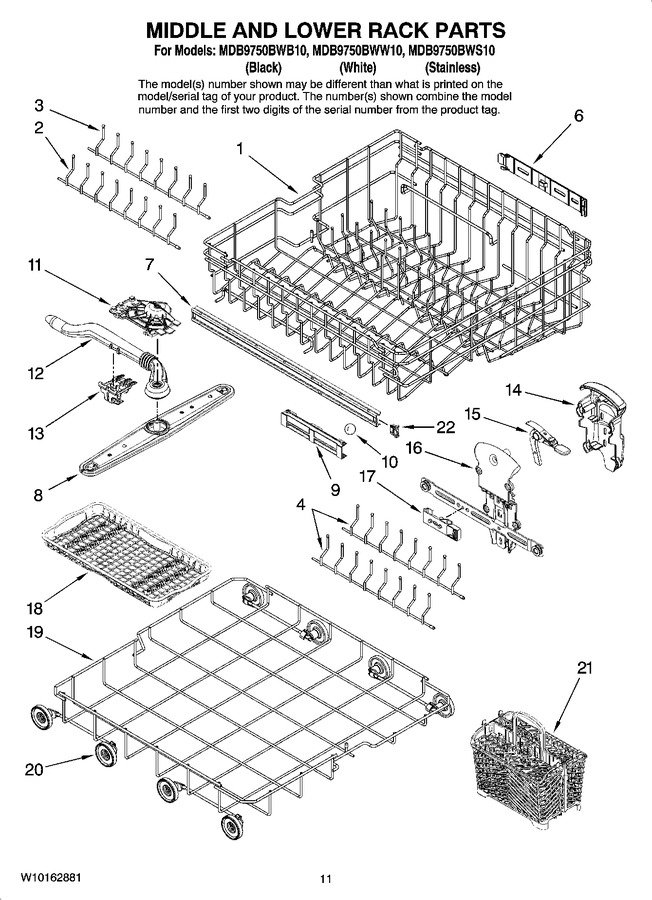

09 - Middle And Lower Rack Parts


10 - Upper Rack Parts


11 - Upper Wash And Rinse Parts, Optional Parts (not Included)


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	99003211		Dishrack, Middle		Appelez-nous	-
2	99003640		Tine, Folding Assembly (rear)		Appelez-nous	-
3	99003639		Tine, Folding Assembly (front)		Appelez-nous	-
4	99003485		Tine, Folding		Appelez-nous	-
6	99003052		Guard, Rack (upper)				$ 5.01
6	99003053		Guard, Rack (lower)				$ 9.96
7	99003066		Rail, Inner Slide		Appelez-nous	-
8	99002739		Washarm, Middle				$ 59.87
9	99003069		Cage, Ball Bearing				$ 6.26
10	99003068		Bearing, Ball				$ 5.83
11	99002732		Clip, Middle Manifold (front)		Appelez-nous	-
12	99002793		Wash Manifold Asy. (middle)		Appelez-nous	-
13	99002944		Clip, Middle Manifold (back)				$ 7.15
14	99003011		Cover, Rack Adjuster				$ 5.75
15	99003178		Lever, Adjuster				$ 55.08
16	WPW10153533		Adjuster, Rack (left)   (Replaces: 99003586)			Immediately	$ 137.39
16	99003587		Adjuster, Rack (right)		Appelez-nous	-
17	99003020		Stabilizer, Rack Adjuster				$ 37.77
18	99002748		Basket, Utility		Appelez-nous	-
19	W10162839		Pan Rack Assembly		Appelez-nous	-
20	W10162840		Wheel		Appelez-nous	-
21	6-918651		Basket, Silverware   (Replaces: 99002729)				$ 67.59
22	99003281		Stop Track				$ 5.84
