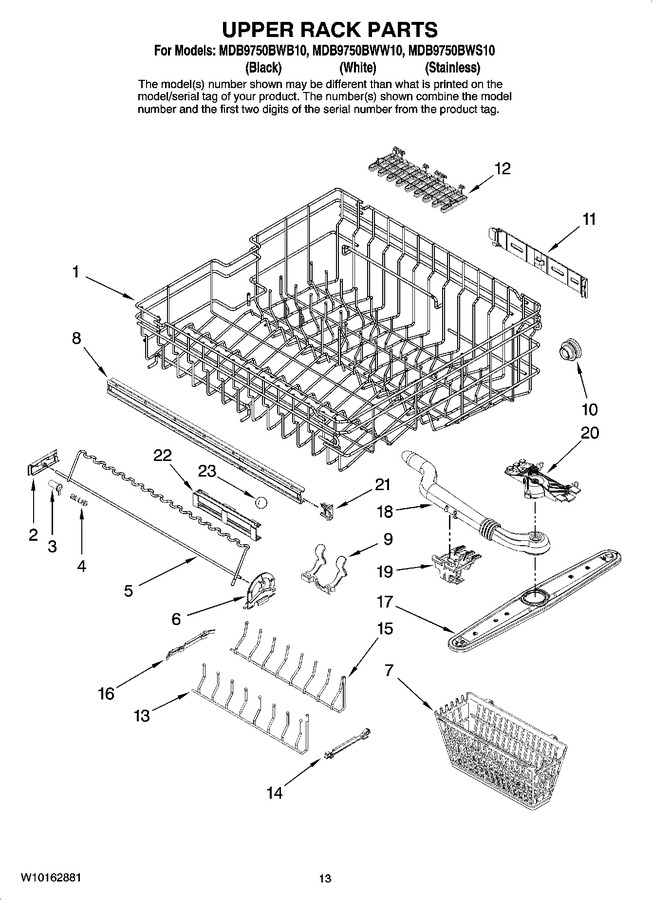

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W10120532		Dishrack, Upper		Appelez-nous	-
2	99002712		Varilock (rear)				$ 6.51
3	99002714		Cup, Varilock				$ 46.60
4	99002715		Spring, Varilock		Appelez-nous	-
5	99002713		Support, Varilock		Appelez-nous	-
6	99002711		Varilock (front)		Appelez-nous	-
7	99002620		Basket, Auxillary		Appelez-nous	-
8	99003066		Rail, Inner		Appelez-nous	-
9	99002696		Clip, Cup				$ 92.17
10	99003147		Wheel Assembly				$ 9.42
11	99003052		Guard, Rack (high Side)				$ 5.01
11	99003053		Guard, Rack (low Side)				$ 9.96
12	99002671		Shelf, Cup				$ 21.17
13	99002707		Tine, Fold Away (right)		Appelez-nous	-
14	WP99002709		Pivot, Fold Away Tine   (Replaces: 99002709)			Immediately	$ 7.15
15	99002708		Tine, Fold Away (left)		Appelez-nous	-
16	WP99002710		Latch, Fold Away Tine   (Replaces: 99002710)				$ 7.00
17	99002624		Washarm (upper)				$ 32.72
18	99002679		Wash Manifold Assembly (upper)		Appelez-nous	-
19	99002945		Clip, Upper Wash Manifold (back)				$ 21.24
20	99002669		Clip, Upper Wash Manifold (front)				$ 5.84
21	99003281		Stop Track				$ 5.84
22	99003069		Cage, Ball Bearing				$ 6.26
23	99003068		Bearing, Ball				$ 5.83
