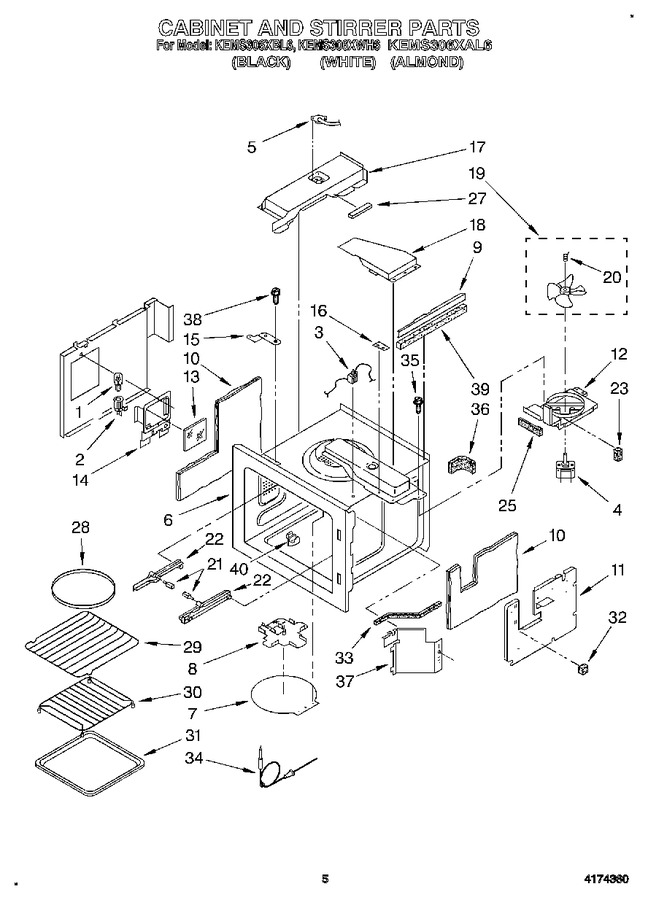

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	WPA3073101		Light Bulb   (Replaces: 4312826)			Immediately	$ 10.90
2	4174730		Light Socket		Appelez-nous	-
3	4312950		Jack Assy.		Appelez-nous	-
4	4312829		Motor, Fan Cooling		Appelez-nous	-
5	4312925		Sensor Assy.		Appelez-nous	-
7	4312978		Stirrer Cover Assy.		Appelez-nous	-
8	4312857		Stirrer Fan Assy.		Appelez-nous	-
9	4312858		Support, Chassis		Appelez-nous	-
10	4312859		Insulation (l.h.)		Appelez-nous	-
10	4312886		Insulation (r.h.)		Appelez-nous	-
11	4312883		Panel, Oven Cavity (r.h.)		Appelez-nous	-
11	4312860		Panel, Oven Cavity (l.h.)		Appelez-nous	-
12	4312981		Stirrer Fan Duct		Appelez-nous	-
13	4312862		Glass, Oven Light		Appelez-nous	-
14	4312863		Mounting Plate, Oven Light		Appelez-nous	-
15	4312980		Upper Hinge		Appelez-nous	-
16	4312865		Divider Plate		Appelez-nous	-
17	4312868		Exhaust Duct Assy.		Appelez-nous	-
18	4312979		Cooling Duct Magnetron		Appelez-nous	-
19	4312983		Fan Blade Assy.		Appelez-nous	-
20	4312872		Clip, Retainer		Appelez-nous	-
21	4312874		Plastic Screw		Appelez-nous	-
22	4312876		Rack Support (r.h.)		Appelez-nous	-
22	4312875		Rack Support (l.h.)		Appelez-nous	-
23	4312892		Block, Foam		Appelez-nous	-
25	4312888		Block, Foam		Appelez-nous	-
27	4312895		Block, Foam		Appelez-nous	-
28	4313002		Cookie Sheet		Appelez-nous	-
29	4312906		Rack (upper)		Appelez-nous	-
30	4312907		Rack (lower)		Appelez-nous	-
31	4312908		Tray, Cooking		Appelez-nous	-
32	4312989		Block, Foam		Appelez-nous	-
33	4312894		Block, Foam		Appelez-nous	-
34	4312954		Temperature Probe Assembly		Appelez-nous	-
35	4312916		Screw		Appelez-nous	-
36	4312889		Block, Foam		Appelez-nous	-
37	4312982		Magnetron Duct Assembly		Appelez-nous	-
38	4314918		Screw (2)		Appelez-nous	-
39	4312992		Seal, Foam		Appelez-nous	-
40	242829		Red 12 Ga. 150~c Rating		Appelez-nous	-
40	72032		Paint, Touch-up 1/2 Oz. (black)			Immediately	$ 18.69
40	WP72107		Paint, Touch-up (1/2oz.) (almond)   (Replaces: 72107)				$ 16.12
40	72017		Paint, Touch-up 1/2 Oz. (white)			Immediately	$ 11.07
40	242820		Wire (14 Ga. 150 C Black)		Appelez-nous	-
40	591014		Adhesive Loctite (1/3 Oz.)		Appelez-nous	-
40	799832		Kit. Porcelain Repair (white)		Appelez-nous	-
40	832985		Rack, Cooking (bi-level)		Appelez-nous	-
40	3171507		Mounting Hardware		Appelez-nous	-
40	350956		Paint, Spray 13 Oz. (almond)				$ 46.30
40	WP3149478		Support, Rack (4)   (Replaces: 313653)				$ 8.64
40	350806		18 Ga. 80~c Rating (yellow)		Appelez-nous	-
40	242821		Wire (14 Ga. 150 C Blue)		Appelez-nous	-
40	242822		Wire (14 Ga. 150 C Brown)		Appelez-nous	-
40	242823		Wire (14 Ga. 150 C Green)		Appelez-nous	-
40	242824		Wire (14 Ga. 150 C Orange)		Appelez-nous	-
40	242825		Wire (14 Ga. 150 C Red)		Appelez-nous	-
40	242826		White 14 Ga. 150~c Rating		Appelez-nous	-
40	242827		Wire (14 Ga. 150 C Yellow)		Appelez-nous	-
40	242830		Wire (14 Ga. 200 C Brown)		Appelez-nous	-
40	242831		Wire (14 Ga. 200 C Red)				$ 342.23
40	242832		Yellow 14 Ga. 200~c Rating		Appelez-nous	-
40	242828		Wire (12 Ga. 150 C Black)		Appelez-nous	-
40	DD81-03523A		Paint, Touch-up 1/2 Oz. (harvest Gold)   (Replaces: 72110)				$ 124.07
40	72112		Paint, (touch-up 1/2 Oz.) (toast)		Appelez-nous	-
40	DD81-03496A		Paint, Touch-up 1/2 Oz. (platinum)   (Replaces: 72113)				$ 105.40
40	WP261869		Citrine White   (Replaces: 261869)				$ 23.85
40	350930		Paint, Pressurized Spray (12 Oz.) White			Immediately	$ 34.39
40	261890		Harvest Gold		Appelez-nous	-
40	285365		Toast		Appelez-nous	-
40	285366		Paint, Spray (13 Oz.) (platinum)		Appelez-nous	-
40	786020		Paint, Pressurized Spray (12 Oz.) (black)		Appelez-nous	-
40	285006		Spray Paint (black) 13 Oz.   (Replaces: 830864)			Immediately	$ 51.34
40	350942		Primer				$ 80.69
40	350941		Leveler (primer)		Appelez-nous	-
40	261900		Citrine White 5 Oz. (m/w Liner)				$ 51.34
40	799344		Paint, Bulk (1 Qt.) (white) (uncut)				$ 237.46
40	978883		Almond		Appelez-nous	-
40	261891		Harvest Gold		Appelez-nous	-
40	285367		Enamal, Toast (1 Qt. Uncut)		Appelez-nous	-
40	285368		Platinum		Appelez-nous	-
40	786032		Ebony (microwave)		Appelez-nous	-
40	WP482338		Sealer, Silastic (3 Oz.)   (Replaces: 482338)			Immediately	$ 57.16
