View Diagram in Separate Window
Print Part List
SELECT A DIAGRAM
01 - Control Panel
02 - Door
03 - Pump & Motor
04 - Rinse Aid & Soap Dispenser
05 - Track & Rack Assembly
06 - Tub
07 - Wiring Information
SELECT A DIAGRAM
New Model Search:

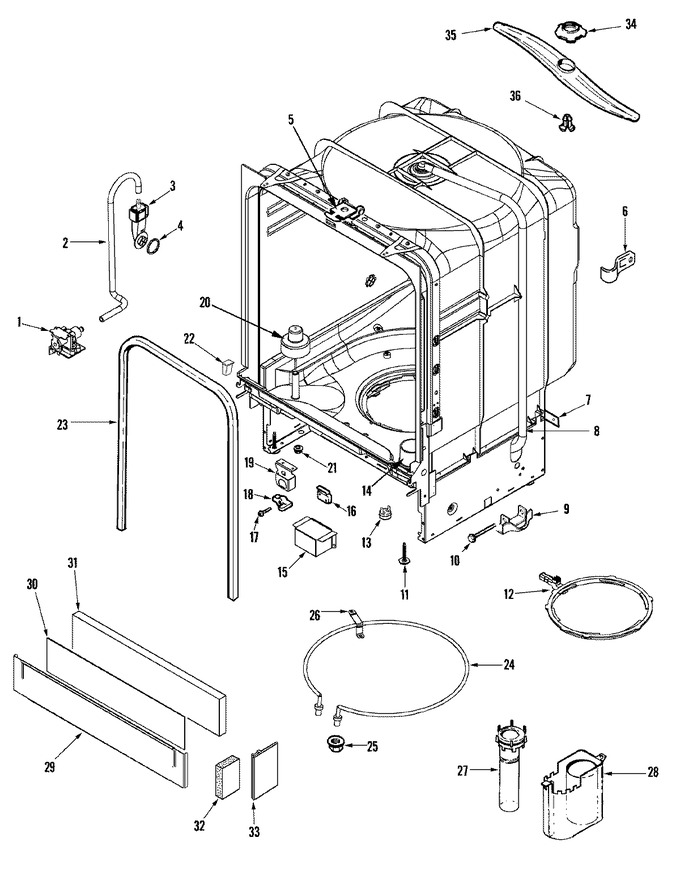

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | WP99001359 | Valve, Water (Replaces: 99001359) | 10 |
|
Immediately | $ 65.16 | |||
| 1 | WP489128 | Screw-no.8x7/16 Hex Washer Head (Replaces: 99002553) | 10 |
|
$ 9.79 | ||||
| 2 | WP596669 | Clamp, Spring (Replaces: 911856) | 10 |
|
Immediately | $ 7.56 | |||
| 2 | 912633 | Hose, Injector | 10 |
|
$ 62.76 | ||||
| 3 | 912533 | Injector, Water | 10 |
|
$ 35.89 | ||||
| 4 | 912644 | Seal Ring, Injector | 10 |
|
$ 7.59 | ||||
| 5 | 99001355 | Hook, Latch | 10 |
|
$ 21.86 | ||||
| 5 | 912650 | Retainer, Latch | 10 |
|
- | ||||
| 5 | 903098 | Door Latch Hook Assy | 10 |
|
$ 5.01 | ||||
| 5 | 912648 | Spring, Latch | 10 |
|
- | ||||
| 5 | Y912873 | Screw, Latch | 10 |
|
- | ||||
| 6 | Y912790 | Hook, Drain Hose | 10 |
|
- | ||||
| 7 | WP489128 | Screw-no.8x7/16 Hex Washer Head (Replaces: 99002553) | 10 |
|
$ 9.79 | ||||
| 7 | 912654 | Strap, Support | 10 |
|
$ 5.27 | ||||
| 8 | 910069 | Washer, Tub Top | 10 |
|
$ 35.86 | ||||
| 8 | WP616099 | Clamp, Hose (1 1/4``) (Replaces: 99002468) | 10 |
|
Immediately | $ 7.03 | |||
| 8 | 912647 | Hose, Top Shower | 10 |
|
$ 63.93 | ||||
| 9 | 912651 | Bracket, Adjusting | 10 |
|
- | ||||
| 10 | 912613 | Screw, Adjusting Bracket | 10 |
|
- | ||||
| 11 | WPW10143258 | Leg, Leveling (Replaces: 912579) | 10 |
|
$ 13.81 | ||||
| 12 | Y912686 | Ring, Locking | 10 |
|
- | ||||
| 13 | 99001008 | Clip, Thermostat | 10 |
|
- | ||||
| 13 | 99001852 | Thermostat, Limiting | 10 |
|
$ 33.66 | ||||
| 14 | 912622 | Screw | 10 |
|
- | ||||
| 14 | Y912659 | Cap, Air Inlet | 10 |
|
- | ||||
| 15 | WP489128 | Screw (Replaces: 912365) | 10 |
|
$ 9.79 | ||||
| 15 | 912563 | Box, Terminal | 10 |
|
- | ||||
| 16 | 99002532 | Screw | 10 |
|
- | ||||
| 16 | 99002560 | Switch, Water Level Control | 10 |
|
$ 31.06 | ||||
| 17 | 99002531 | Pivot Pin, Actuator Lever | 10 |
|
$ 8.06 | ||||
| 18 | 912014 | Lever, Actuator | 10 |
|
$ 52.13 | ||||
| 19 | WP489128 | Screw (Replaces: 912365) | 10 |
|
$ 9.79 | ||||
| 19 | 912656 | Bracket, Water Level Switch | 10 |
|
- | ||||
| 20 | WP99002363 | Float (Replaces: 99002363) | 10 |
|
$ 7.42 | ||||
| 21 | 911265 | Palnut, Float | 10 |
|
$ 5.83 | ||||
| 22 | 99001885 | Deflector, Water | 10 |
|
$ 8.33 | ||||
| 23 | WP902894 | Seal, Door (Replaces: 902894) | 10 |
|
Immediately | $ 78.23 | |||
| 24 | WP99002360 | Element, Heating (Replaces: 99002360) | 10 |
|
Immediately | $ 123.80 | |||
| 24 | Y913079 | O-ring, Heater | 10 |
|
$ 5.83 | ||||
| 25 | 912645 | Nut, Heating Element | 10 |
|
- | ||||
| 25 | 99001333 | Sleeve, Insulating | 10 |
|
- | ||||
| 26 | 99002361 | Bracket, Element | 10 |
|
- | ||||
| 27 | Y913096 | Tube, Inlet | 10 |
|
- | ||||
| 28 | Y913095 | Vent, Inlet | 10 |
|
- | ||||
| 29 | 99002114 | Screw (bsq) | 10 |
|
- | ||||
| 29 | 99002111 | Panel, Toe (bsq) | 10 |
|
- | ||||
| 30 | 99001204 | Damper, Toe Panel | 10 |
|
- | ||||
| 31 | WP6-920587 | Insulation, Toe Panel (Replaces: 99002414) | 10 |
|
$ 6.35 | ||||
| 32 | 99001395 | Insulation, Barrier | 10 |
|
- | ||||
| 33 | 99002241 | Barrier (bsq) | 10 |
|
- | ||||
| 34 | 912680 | Outlet, Snap | 10 |
|
$ 22.87 | ||||
| 35 | 99002418 | Arm, Wash (upr-wht) | 10 |
|
$ 30.07 | ||||
| 36 | Y912681 | Retainer, Snap Spray | 10 |
|
- | ||||
| 37 | 911917 | Fastener, Insulation | 10 |
|
- | ||||
| 37 | WPW10223013 | Insulation Assembly (Replaces: 99002406) | 10 |
|
$ 83.60 | ||||
| 38 | 99002566 | Damper, Tub (assembly) | 10 |
|
- | ||||
| 39 | 99002335 | Seal, Sound (wht) | 10 |
|
- |
