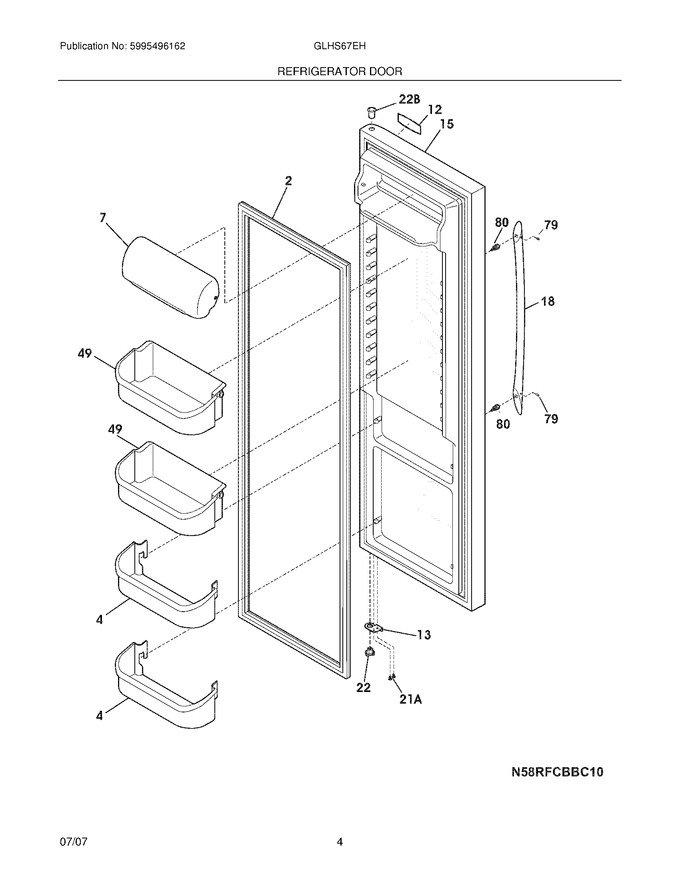

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
2	241786005		Refrigerator Door Gasket, Grey, Magnetic			Immediately	$ 225.62
4	240323002		Bin-door,pseudo ,bottom			Immediately	$ 67.21
7	240326203		Door-dairy				$ 40.37
12	241808601		Label-nameplate				$ 12.69
13	240581905		Door Stop,black ,ref				$ 60.25
15	241629333		Door-refr,stainless ,complete Assy				$ 450.01
18	240536818		Handle-door,stainless Steel ,with Insert,& Set Screw				$ 202.00
22	240328203		Bearing-hinge,black ,closer			Immediately	$ 27.23
49	240356402		Bin-door,gallon   (Replaces: 241808205)			Immediately	$ 106.83
79	218755402		Screw-set,10-32 X 0.375			Immediately	$ 33.00
80	218755504		Screw-shoulder,no.10 Ab ,handle Mounting			Immediately	$ 18.60
21A	5303323137		Screw,10-32 X 1/2   (Replaces: 240598402)				$ 11.88
22B	240328404		Bearing-hinge,black ,upper				$ 22.87
NI	241780401		Liner,bin				$ 31.40
NI	241601001		Wrench,allen		Appelez-nous	-
