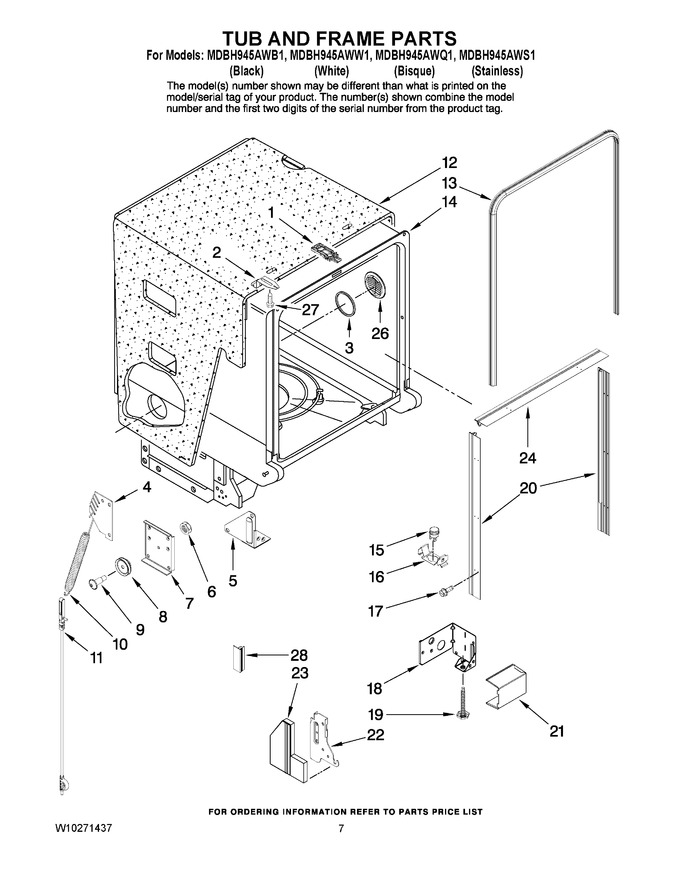

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W10119337		Strike, Door				$ 23.34
2	6-916881		Bracket, Cabinet Mounting				$ 5.85
3	6-919082		Seal, Air/water Inlet				$ 9.00
4	99002610		Bracket, Spring Adjustment		Appelez-nous	-
5	6-916979		Bracket, Support				$ 21.88
6	99003688		Nut				$ 5.51
7	W10173920		Bracket, Cable		Appelez-nous	-
8	99002608		Roller, Cable Bracket				$ 9.46
9	99003687		Bolt, Shoulder				$ 5.33
10	99002598		Spring, Door				$ 5.83
11	WP99003446		Door Cable Assy.   (Replaces: 99003446)			Immediately	$ 7.90
12	WPW10223013		Insulation, Tub   (Replaces: 99002849)				$ 83.60
13	99002588		Seal, Door				$ 81.57
14	W10199093		Tub Assembly		Appelez-nous	-
15	99002633		Thermostat, Limiting				$ 33.69
16	99002634		Clip, Thermostat				$ 5.51
17	99002692		Screw, Trim Mounting				$ 5.02
18	99002637		Bracket, Junction Box		Appelez-nous	-
19	WPW10143258		Leg, Leveling   (Replaces: W10143258)				$ 13.81
20	W10236658		Strip,trim Side		Appelez-nous	-
21	99002638		Cover, Junction Box		Appelez-nous	-
22	W10137495		Support, Hinge (right)		Appelez-nous	-
22	W10137496		Support, Hinge (left)		Appelez-nous	-
23	W10174569		Backer, Hinge Seal (left)				$ 8.51
23	W10174581		Backer, Hinge Seal (right)				$ 10.73
24	W10236659		Strip, Trim Top		Appelez-nous	-
26	W10169388		Grill,air/water Inlet				$ 27.69
27	6-912799		Screw		Appelez-nous	-
28	W10163634		Gap Seal, Toe Kick (bisque)		Appelez-nous	-
28	W10163633		Gap Seal, Toe Kick (black)		Appelez-nous	-
28	W10163635		Gap Seal, Toe Kick (white)		Appelez-nous	-
