View Diagram in Separate Window
Print Part List
SELECT A DIAGRAM
01 - Access Drawer
02 - Body
03 - Control Panel
04 - Door
05 - Gas Controls
06 - Internal Controls
07 - Oven
08 - Top Assembly/control Panel/manifold
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|

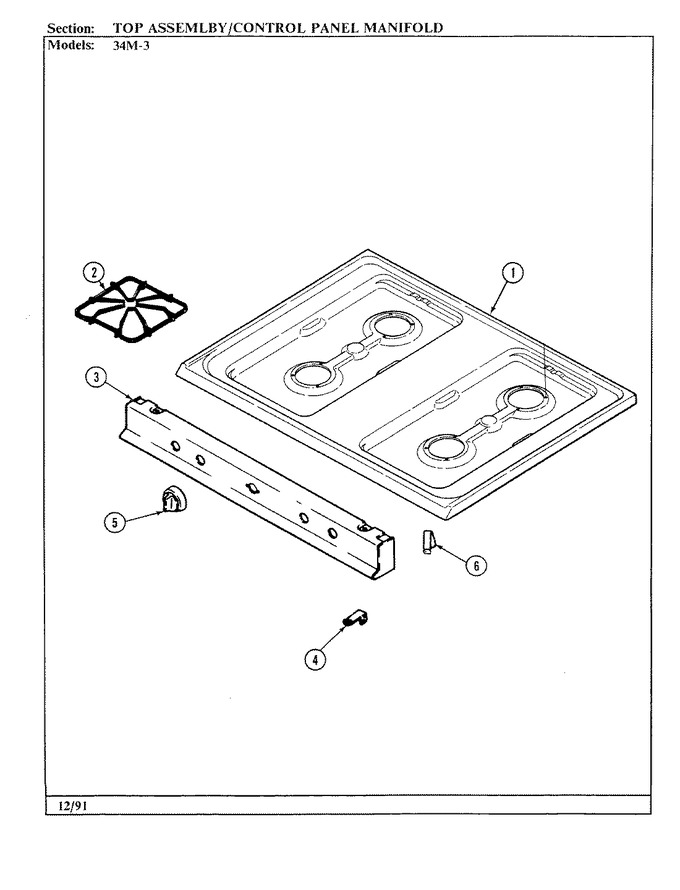

| 1 | 2001F080-81 | Top, Main | 01 |
|
- | ||||
| 2 | 2003F029-00 | Grate, Black | 01 |
|
- | ||||
| 3 | 7712P145-60 | Panel Manifold | 01 |
|
- | ||||
| 4 | 3801F049-34 | Bracket,control Panel (l) | 01 |
|
- | ||||
| 4 | 3801F047-34 | Bracket,control Panel (r) | 01 |
|
- | ||||
| 5 | 7733P065-60 | Knob, Valve | 01 |
|
- | ||||
| 6 | WP4159193 | Screw (Replaces: 7118P004-60) | 01 |
|
$ 4.29 | ||||
| 6 | 7112P087-60 | Clip, Top Locking | 01 |
|
- | ||||
| 6 | 3807F431-45 | Support, Main Top | 01 |
|
- |
