02 - Cabinet And Component Parts


03 - Door Parts


04 - Console And Control Parts


05 - Motor And Pump Parts


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	3281186		Cover		Appelez-nous	-
2	3281110		Resistor		Appelez-nous	-
3	3261048		Screw (4)		Appelez-nous	-
4	3281184		Timer		Appelez-nous	-
5	3201219		Start Switch		Appelez-nous	-
6	08001544		Screw		Appelez-nous	-
7	3201220		Pushbutton		Appelez-nous	-
8	3281191		End Cap, Rh		Appelez-nous	-
9	3281170		Spring-catch (2)		Appelez-nous	-
10	F142240-000		Pad (2)		Appelez-nous	-
11	3281096		Screw (2)		Appelez-nous	-
12	3281101		Screw (2)		Appelez-nous	-
13	3281187		Selector Switch		Appelez-nous	-
14	3281035		Screw (4)		Appelez-nous	-
15	3201223		Mounting Bracket		Appelez-nous	-
16	08014350		Clip (8)		Appelez-nous	-
17	3281189		End Cap, Lh		Appelez-nous	-
18	32811023		Screw (2)		Appelez-nous	-
19	3281198		Rotary Knob		Appelez-nous	-
20	3281192		Grommet (2)		Appelez-nous	-
21	08001689		Screw		Appelez-nous	-
22	3161198		Terminal		Appelez-nous	-
23	3281195		Timer-knob & Pointer Assembly		Appelez-nous	-
25	3281196		Trimplate		Appelez-nous	-
26	3201307		Harness		Appelez-nous	-
27	F142242-000		Ground Clip		Appelez-nous	-
28	3201231		Top Panel-white		Appelez-nous	-
28	3201232		Top Panel-almond		Appelez-nous	-
29	3201308		Ground Wire		Appelez-nous	-
30	3281120		Ground Screw		Appelez-nous	-
26A	3281103		Wire Tie (3) (non-illustrated)		Appelez-nous	-

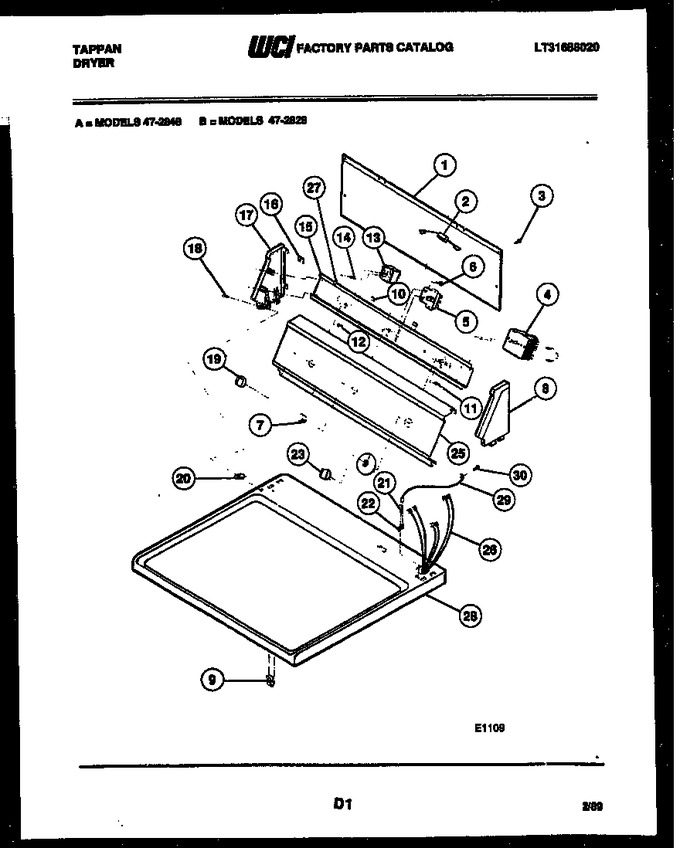

    View Diagram in Separate Window       Print Part List
