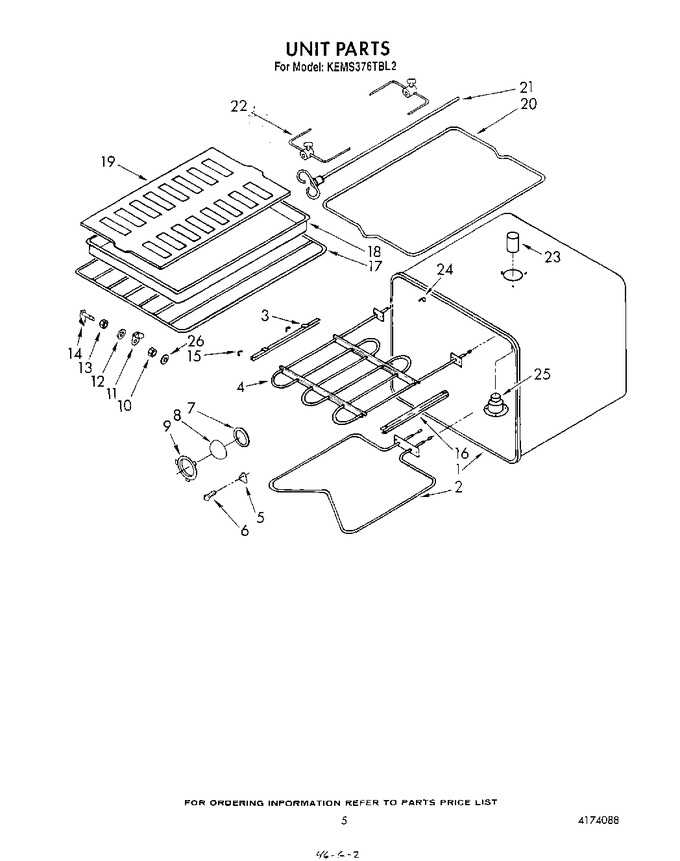

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	3178755		Liner, Oven		Appelez-nous	-
2	3177423		Element, Bake		Appelez-nous	-
2	4159465		Screw (3)		Appelez-nous	-
3	4168218		Support, Element		Appelez-nous	-
4	4159465		Screw (4)		Appelez-nous	-
4	3177405		Broiler Element		Appelez-nous	-
5	4167518		Rotisserie Cover		Appelez-nous	-
6	4168874		Shoulder Screw		Appelez-nous	-
7	4166868		Light Lens Gasket		Appelez-nous	-
8	4166866		Light Lens		Appelez-nous	-
9	4159445		Screw (3)		Appelez-nous	-
9	4167938		Light Lens Retainer		Appelez-nous	-
10	4167277		Nut, Meat Probe		Appelez-nous	-
11	4159465		Screw, (2)		Appelez-nous	-
11	4167266		Probe, Jack Cover		Appelez-nous	-
12	4173438		Washer		Appelez-nous	-
13	4173084		Nut, Hex Jam (2)		Appelez-nous	-
14	4164293		Meat Probe Jack		Appelez-nous	-
15	4163275		Thermostat Bulb Clip		Appelez-nous	-
16	4159465		Screw (4)		Appelez-nous	-
16	4168217		Element, Support		Appelez-nous	-
17	4168401		Oven Rack		Appelez-nous	-
18	4396923		Pan, Broiler   (Replaces: 3179791)			Immediately	$ 52.04
19	4396923		Broiler Grill   (Replaces: 4164251)			Immediately	$ 52.04
20	4168412		Rotisserie Rack		Appelez-nous	-
21	4168724		Rotisserie Spear		Appelez-nous	-
22	4166352		Rotisserie Skewer		Appelez-nous	-
23	4168126		Vent Tube Extension		Appelez-nous	-
23	4159465		Screw (3)		Appelez-nous	-
24	4168203		Capillary Cover		Appelez-nous	-
24	4159465		Screw		Appelez-nous	-
25	4168492		Vent, Tube		Appelez-nous	-
25	4159465		Screw (3)		Appelez-nous	-
26	4167267		Meat Probe		Appelez-nous	-
26	4163975		Gasket		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
