01 - Body

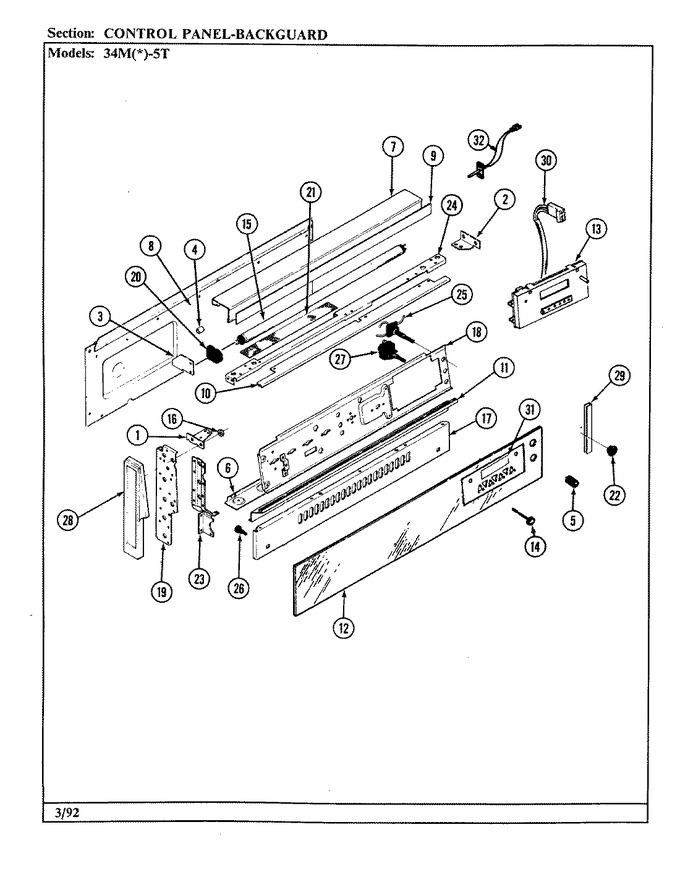

02 - Control Panel (34mx-5tkxw)
03 - Control System
04 - Door
05 - Drawer
06 - Internal Controls
07 - Oven
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 3801F002-34 | Bracket (left) | 01 |
|
- | ||||
| 2 | 3801F109-34 | (right) | 01 |
|
- | ||||
| 3 | 3801F006-51 | Bracket, Lamp | 01 |
|
- | ||||
| 3 | WPW10068250 | Screw (Replaces: 7101P074-60) | 01 |
|
$ 3.66 | ||||
| 4 | 8007P004-60 | Bushing, Lamp Cover | 01 |
|
- | ||||
| 5 | WP7711P492-60 | Knob, Clock (blk) (Replaces: 7711P431-60) | 01 |
|
$ 12.13 | ||||
| 6 | 4005F155-80 | Cover, Bottom Bkdg Wire | 01 |
|
- | ||||
| 7 | 7724P010-60 | Cover, Lamp | 01 |
|
- | ||||
| 8 | WP59002061 | Screw (6abx38-zn) (Replaces: 7101P077-60) | 01 |
|
$ 6.98 | ||||
| 8 | 4005S309-80 | Cover, Bkgd Wire | 01 |
|
- | ||||
| 9 | 7728P053-60 | Trim | 01 |
|
- | ||||
| 10 | WP7101P126-60 | Screw (Replaces: 7101P058-60) | 01 |
|
Immediately | $ 6.85 | |||
| 10 | 7706P166-60 | Extrusion, Glass Spt | 01 |
|
- | ||||
| 11 | 7706P097-60 | Extrusion | 01 |
|
- | ||||
| 11 | WPW10068250 | Screw (Replaces: 7101P074-60) | 01 |
|
$ 3.66 | ||||
| 12 | 7910P070-60 | Glass, Bkgd | 01 |
|
- | ||||
| 13 | 7003P043-60 | Insulator | 01 |
|
- | ||||
| 13 | 7601P181-60 | Clock, Electronic | 01 |
|
- | ||||
| 13 | 7201P052-60 | Pad, Foam Gasket | 01 |
|
- | ||||
| 14 | 7711P461-60 | Button, Control Set | 01 |
|
- | ||||
| 14 | 7711P452-60 | Button, Clock Set | 01 |
|
- | ||||
| 15 | WP95292 | Light, Control Panel (Replaces: 7407P004-60) | 01 |
|
Immediately | $ 121.45 | |||
| 16 | 7103P053-60 | Nut, Push-on End Cap | 01 |
|
- | ||||
| 17 | 2620W053-09 | Panel Bkgd Lower | 01 |
|
- | ||||
| 18 | 3605F171-80 | Plate Switch Mtg | 01 |
|
- | ||||
| 19 | 3605F008-80 | Plate | 01 |
|
- | ||||
| 19 | WPW10068250 | Screw (Replaces: 7101P074-60) | 01 |
|
$ 3.66 | ||||
| 19 | 3605F006-80 | Plate, Control Panel End (lft) | 01 |
|
- | ||||
| 20 | 7408P005-60 | Receptacle, Lamp | 01 |
|
- | ||||
| 20 | WP59002061 | Screw (6abx38-zn) (Replaces: 7101P077-60) | 01 |
|
$ 6.98 | ||||
| 21 | 3604F079-80 | Shield, Ov Lamp Recpt | 01 |
|
- | ||||
| 22 | 7214P007-60 | Sleeve, Switch (blk) | 01 |
|
- | ||||
| 23 | 3807F349-51 | Support, Bkgd End Rt | 01 |
|
- | ||||
| 23 | 3807F348-51 | Support, Bkgd End Lf | 01 |
|
- | ||||
| 24 | 3807F391-80 | Support Bkgd Lamp | 01 |
|
- | ||||
| 25 | 5700A284-60 | Switch Push Assy | 01 |
|
- | ||||
| 26 | 7105P002-60 | Support, Main Top | 01 |
|
- | ||||
| 26 | W11233072 | Screw (zinc) (Replaces: 7101P041-60) | 01 |
|
Immediately | $ 12.62 | |||
| 27 | 7403P104-60 | Switch, Oven Lamp | 01 |
|
- | ||||
| 28 | 7726P030-60 | Trim, Bkgd End (rt) | 01 |
|
- | ||||
| 28 | 7726P029-60 | Trim, End Cap (lt) | 01 |
|
- | ||||
| 28 | 7109P010-60 | Washer, Nylon | 01 |
|
- | ||||
| 29 | 7720P061-60 | Trim, Glass | 01 |
|
- | ||||
| 30 | 5170P100-60 | Harness, Oven Sensor | 01 |
|
- | ||||
| 31 | 7740P016-60 | Trim, Bezel | 01 |
|
- | ||||
| 32 | 5180D130-60 | Harness, Upper | 01 |
|
- | ||||
| 32 | 7401P020-60 | Block, Main Terminal | 01 |
|
- | ||||
| 32 | 12001655 | Probe, Oven Sensor (Replaces: 7430P009-60) | 03 |
|
Immediately | $ 41.01 | |||
| 32 | 5125A299-60 | Harness, Loose Wire | 01 |
|
- | ||||
| 32 | 12001655 | Oven Sensor (Replaces: 7430P007-60) | 01-02 |
|
Immediately | $ 41.01 |
