SELECT A DIAGRAM

02 - Control Panel , Lit/optional


03 - Control Frame And Knobs


04 - Control Compartment


05 - Latch


06 - Liner


07 - Oven Door


08 - Oven Cabinet


09 - Microwave Control Panel


10 - Microwave Door


11 - Microwave Cabinet


12 - Microwave Oven


13 - Wiring Harness

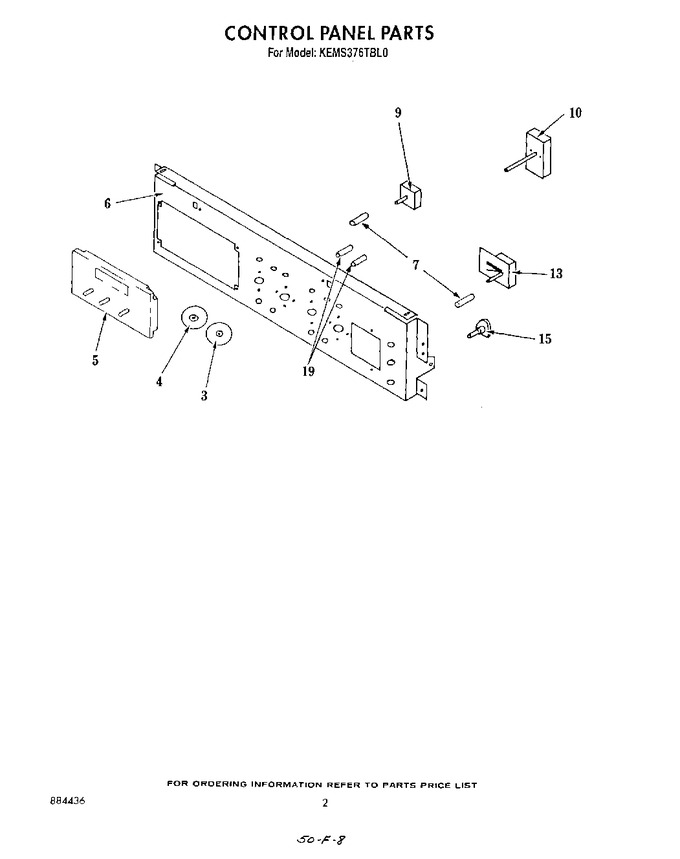

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
3	3179678		Disc, Thermostat (black)		Appelez-nous	-
3	3178425		Disc, Thermostat (white & Almond)		Appelez-nous	-
4	4175379		Nut, Tinnerman (2)		Appelez-nous	-
4	4163800		Selector Disc (2)		Appelez-nous	-
5	4168838		Nut, Tinnerman (2)		Appelez-nous	-
5	4173071		Electronic Timer		Appelez-nous	-
5	4159470		Screw, Drive		Appelez-nous	-
5	4164360		Nut, Washer Type (4)		Appelez-nous	-
6	4164218		Bracket, Control		Appelez-nous	-
7	4168597		Indicator, Light (2) (oven And Power On)		Appelez-nous	-
9	155023		Switch, Selector (screw, 8-32 X 1/4)			Immediately	$ 7.91
9	3178263		Switch, Selector (white & Almond)		Appelez-nous	-
9	3177174		Switch, Selector (black)		Appelez-nous	-
10	155023		Screw 8-32 X 1/4			Immediately	$ 7.91
10	4164362		Thermostat		Appelez-nous	-
13	3180156		Meat Probe Indicator		Appelez-nous	-
13	4159465		Screw, (2)		Appelez-nous	-
15	254225		Switch, Oven Light (screw)		Appelez-nous	-
15	4167332		Switch, Oven Light (black)		Appelez-nous	-
15	3179706		Switch, Oven Light (white & Almond)		Appelez-nous	-
19	4163869		Indicator, Light (2) (clean And Lock)		Appelez-nous	-
	LIT3177139		Installation Instructions		Appelez-nous	-
	LIT884436		Repair Parts List		Appelez-nous	-
	LIT4174868		Microwave		Appelez-nous	-
	LIT3177066		White & Almond		Appelez-nous	-
	LIT3177062		Black		Appelez-nous	-
	LIT4174872		Installation Instructions (microwave) Use & Care Guide		Appelez-nous	-
	LIT4174870		Cookbook (microwave)		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
