SELECT A DIAGRAM
New Model Search:

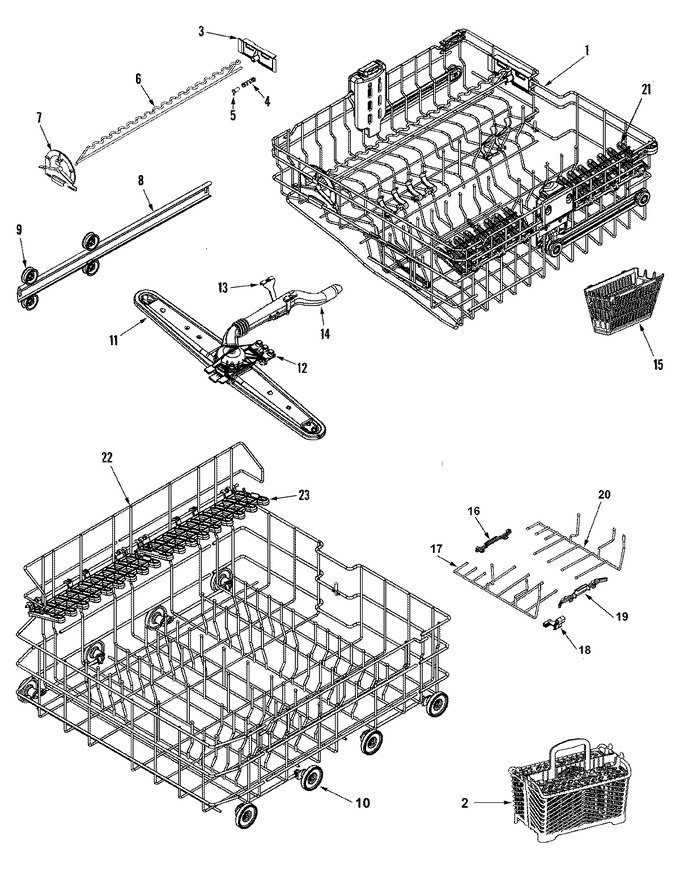

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 99003178 | Lever, Adjuster (blue) | 10 |
|
$ 55.08 | ||||
| 1 | 99003020 | Stabilizer, Rack Adjuster | 10 |
|
$ 37.77 | ||||
| 1 | 99003011 | Cover, Rack Adjuster (gray) | 10 |
|
$ 5.75 | ||||
| 1 | 99003010 | Screw (t15) 8-18 X .500 | 10 |
|
- | ||||
| 1 | 99003009 | Rack Adjuster Assembly (rt) | 10 |
|
- | ||||
| 1 | 99003008 | Rack Adjuster Assembly (lt) | 10 |
|
- | ||||
| 1 | 99002905 | Cap, Rack (dark Gray) | 10 |
|
$ 23.63 | ||||
| 1 | 99003480 | Rack Assembly,upr (dk Gray) | 10 |
|
- | ||||
| 2 | 99002697 | Cover, Split/fit Basket | 10 |
|
- | ||||
| 2 | WP6-918873 | Basket, Silverware (half) (Replaces: 99002684) | 10 |
|
Immediately | $ 54.28 | |||
| 2 | WP6-918873 | Split/fit Bskt Assy (Replaces: 99002683) | 10 |
|
Immediately | $ 54.28 | |||
| 3 | 99002712 | Varilock (rear) | 10 |
|
$ 6.51 | ||||
| 4 | 99002715 | Spring, Varilock | 10 |
|
- | ||||
| 5 | 99002714 | Cup, Varilock | 10 |
|
$ 46.60 | ||||
| 6 | 99002713 | Support, Varilock | 10 |
|
- | ||||
| 7 | 99002711 | Varilock (frt) | 10 |
|
- | ||||
| 8 | 99003476 | Stop, Rack (blue) | 10 |
|
$ 38.72 | ||||
| 8 | 99002621 | Track, Rack | 10 |
|
$ 56.82 | ||||
| 9 | WP99002947 | Wheel, Tub (Replaces: 99002622) | 10 |
|
Immediately | $ 10.58 | |||
| 9 | WPY912798 | Washer, Tub Wheel (Replaces: Y912798) | 10 |
|
$ 6.90 | ||||
| 9 | WP99002947 | Shaft, Tub Wheel (Replaces: 99002343) | 10 |
|
Immediately | $ 10.58 | |||
| 10 | WP99002780 | Wheel Assembly (lwr) (Replaces: 99002780) | 10 |
|
Immediately | $ 9.90 | |||
| 11 | 99002624 | Arm, Wash (upr) | 10 |
|
$ 32.72 | ||||
| 11 | 99002740 | Screw, Truss Head (10-18x.75) | 10 |
|
$ 6.24 | ||||
| 12 | 99002669 | Clip, Upr Wash Manifold (frt) | 10 |
|
$ 5.84 | ||||
| 13 | 99002670 | Clip, Upr Wash Manifold (back) | 10 |
|
- | ||||
| 14 | 99002679 | Wash Manifold Assy (upr) | 10 |
|
- | ||||
| 15 | 99002620 | Basket, Auxillary (blue) | 10 |
|
- | ||||
| 16 | 99002689 | Latch, Second Convertible Tine | 10 |
|
$ 7.53 | ||||
| 17 | 99002717 | Tines, Convertible (frt) | 10 |
|
- | ||||
| 18 | WP99002687 | Pivot, Convertible Tine (blue) (Replaces: 99002687) | 10 |
|
$ 7.00 | ||||
| 19 | WP99002688 | Latch, Convertible Tine (Replaces: 99002688) | 10 |
|
Immediately | $ 7.00 | |||
| 20 | 99002718 | Tines, Convertible (rear) | 10 |
|
- | ||||
| 21 | 99002671 | Shelf, Cup (upr) | 10 |
|
$ 21.17 | ||||
| 22 | 99003461 | Rack Assembly (lwr) | 10 |
|
- | ||||
| 23 | 99002672 | Shelf, Cup (lwr) | 10 |
|
$ 52.85 |
