Diagram # Part Number Description Series Availability Ships Price Add to Cart
1 WPA3073101 Bulb, Oven Light (30 Watt)   (Replaces: 4164470) In-Stock Immediately $ 10.90

2 4164469 Socket, Oven Light Appelez-nous -
3 4164611 Cover, Insulation Appelez-nous -
4 4164475 Insulation, Convection Air Duck Appelez-nous -
5 4164479 Inner Cabinet Side, Left Appelez-nous -
6 4164473 Insulation, Left Side Appelez-nous -
7 4164467 Oven Light Mounting Plate Appelez-nous -
8 4164468 Glass, Oven Light Appelez-nous -
9 4164449 Convection Airguide, Front Appelez-nous -
10 4164450 Convection Air Guide, Rear Appelez-nous -
11 4164508 Thermistor Appelez-nous -
12 4164452 Lower Shaft And Mounting Plate Appelez-nous -
13 4164472 Shading Cushion Appelez-nous -
14 4164451 Convection Fan Blade Shaft Appelez-nous -
15 4164453 Upper Shaft Mounting Plate Appelez-nous -
16 4164456 Pulley Fan Shaft Appelez-nous -
17 4164457 Convection Airguide, Top Appelez-nous -
18 4164455 Convection Fan Blade Appelez-nous -
19 4164608 Heating Element Holder Appelez-nous -
20 4164459 Element, Convection Air Appelez-nous -
21 4164458 Convection Airguide End Cap Appelez-nous -
22 4164512 Fuse, Magnetron Temperature Appelez-nous -
23 4164517 Belt, Convection Fan Appelez-nous -
24 4164516 Fan Motor Pulley Appelez-nous -
25 4164514 Motor, Convection Fan Appelez-nous -
26 4164515 Plate, Convection Fan Motor Mounting Appelez-nous -
27 4164440 Spring, Damper Appelez-nous -
28 4164443 Duct, Damper Appelez-nous -
29 4164439 Damper Appelez-nous -
30 4164442 Seal, Damper Appelez-nous -
31 4164445 Insulator Appelez-nous -
32 4164444 Insulator Appelez-nous -
33 4164438 Spring, Sma Appelez-nous -
34 4164441 Damper Shaft Appelez-nous -
35 4164523 Motor, Cooling Fan Appelez-nous -
36 4164525 Cooling Fan Shroud Appelez-nous -
37 4164524 Blade, Cooling Fan Appelez-nous -
38 4164526 Duct, Magnetron Cooling Appelez-nous -
39 4164509 Magnetron Appelez-nous -
40 4164437 Tray, Turntable Appelez-nous -
41 4164448 Coupling, Turn- Table Appelez-nous -
42 4164447 Roller, Turn- Table (3) Appelez-nous -
43 4164466 Spacer, Turntable Motor Appelez-nous -
44 4164464 Plate, Turntalbe Motor Mounting Appelez-nous -
45 4164465 Motor, Turntable Appelez-nous -
46 4164471 Cover, Waveguide Appelez-nous -
47 4164485 Plate, Hinge Mounting Appelez-nous -
48 4164446 Oven Cavity Appelez-nous -
49 4164481 Bottom, Inner Cabinet Appelez-nous -
50 4164474 Insulation, Right Side Appelez-nous -
51 4164480 Inner Cabinet Side, Left Appelez-nous -
52 4164496 Hook, Upper Latch Appelez-nous -
53 4164497 Hook, Lower Latch Appelez-nous -
54 4392027 Switch, Monitor   (Replaces: 4164501) Special Order $ 138.41

55 4164498 Lever, Monitor Switch Appelez-nous -
56 4392027 Switch, Primary Interlock   (Replaces: 4164500) Special Order $ 138.41

57 4164503 Switch, Stop Appelez-nous -
58 4164499 Stop Switch Lever Appelez-nous -
59 4392027 Switch, Secondary Interlock   (Replaces: 4164502) Special Order $ 138.41

60 4164462 Hot Air Duct Left End Appelez-nous -
61 4164461 Hot Air Duct Front Appelez-nous -
62 4164521 Hot Air Duct Seal Appelez-nous -
63 4164522 Sensor Seal Appelez-nous -
64 4164460 Hot Air Duct Top Appelez-nous -
65 4164478 Airguide Duct, Rear Appelez-nous -
66 4164482 Inner Cabinet Top Appelez-nous -
67 4164477 Airguide Duct, Front Appelez-nous -
68 4164476 Insulation, Top Appelez-nous -
69 4164463 Hot Air Duct Right End Appelez-nous -
70 4164589 Chassis Support Appelez-nous -
4173087 Xscrew, Temperature Fuse Mounting (2) Appelez-nous -
4164609 Xscrew, Turntable Motor Mounting (4) Appelez-nous -
4164571 Xscrew, Magnetron Mounting (3) Appelez-nous -
4164607 Xscrew, Insulation Cove (16) Appelez-nous -
4164536 Xscrew, Waveguide Cover Mounting (3) Appelez-nous -
4164574 Xscrew, Thermistor Mounting (2) Appelez-nous -
4164569 Xscrew, Magnetron Cooling Duct Mounting Appelez-nous -
4164564 Xscrew, Door Mounting (4) Appelez-nous -
4392027 Xscrew, Latch Hook Mounting (2)   (Replaces: 4164501) Special Order $ 138.41

4164544 Xscrew, Turntable Coupling Mounting (3) Appelez-nous -
4164563 Xnut, Cooling Fan Motor Mounting (2) Appelez-nous -
4164533 Xscrew, Sma Spring Mounting Appelez-nous -
4164606 Xscrew, Oven Light Socket Mounting Appelez-nous -
4164541 Xpin, Fan & Pulley Appelez-nous -
4164535 Xwasher, Sma Spring Mounting Appelez-nous -
4164545 Xscrew, Convection Airguide, Top Mounting (6) Appelez-nous -
4164561 Xscrew, Cooling Fan Motor Mounting (2) Appelez-nous -
4164542 Xwasher, Convection Fan Mounting Appelez-nous -
4164540 Xnut, Convection Fan Mounting Appelez-nous -
4164567 Xpin, Fan Motor Pulley Appelez-nous -
4164570 Xscrew, Magnetron Mounting Appelez-nous -
4164539 Xscrew, Element Mounting Appelez-nous -
4164538 Xscrew, Turntable Roller Mounting (6) Appelez-nous -
4164548 Xscrew, Damber Mounting Appelez-nous -
4164543 Xnut, Convection Fan Motor Mounting (2) Appelez-nous -
4164556 Xwasher, Mointer Switch Lever Mounting Appelez-nous -
4164610 Xscrew, Monitor Switch Lever Mounting Appelez-nous -

    View Diagram in Separate Window     Print Icon   Print Part List

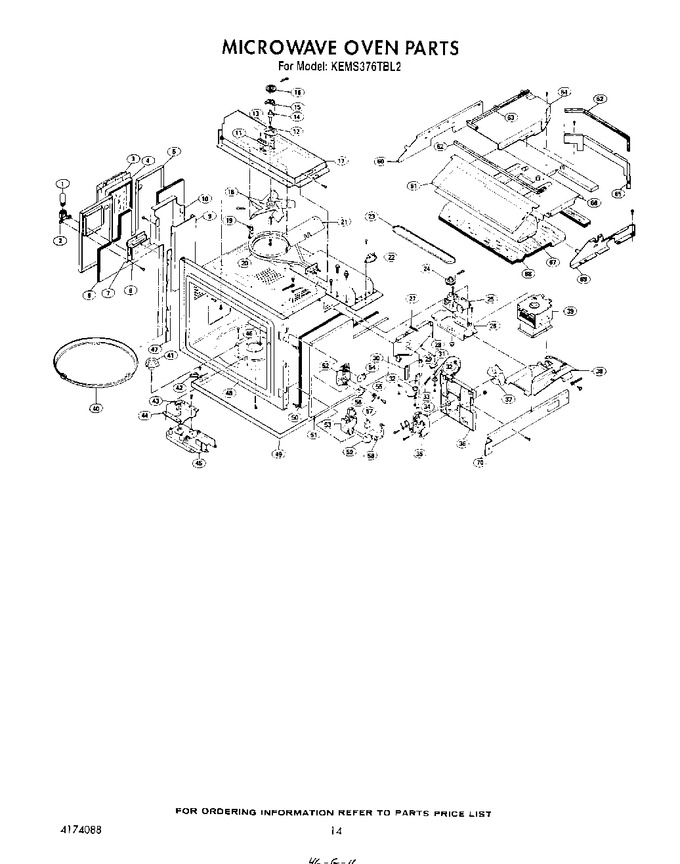

Diagram for KEMS376TWH1
