SELECT A DIAGRAM

01 - Oven


02 - Control Panel, Literature


03 - Oven Door


04 - Component Shelf And Latch


05 - Internal Oven


06 - Convection Fan


07 - Microwave Compartment


08 - Magnetron And Air Flow


09 - Cavity And Turntable


10 - Cabinet


11 - Door And Latch


12 - Microwave Control Panel


13 - Wiring Harness, Optional

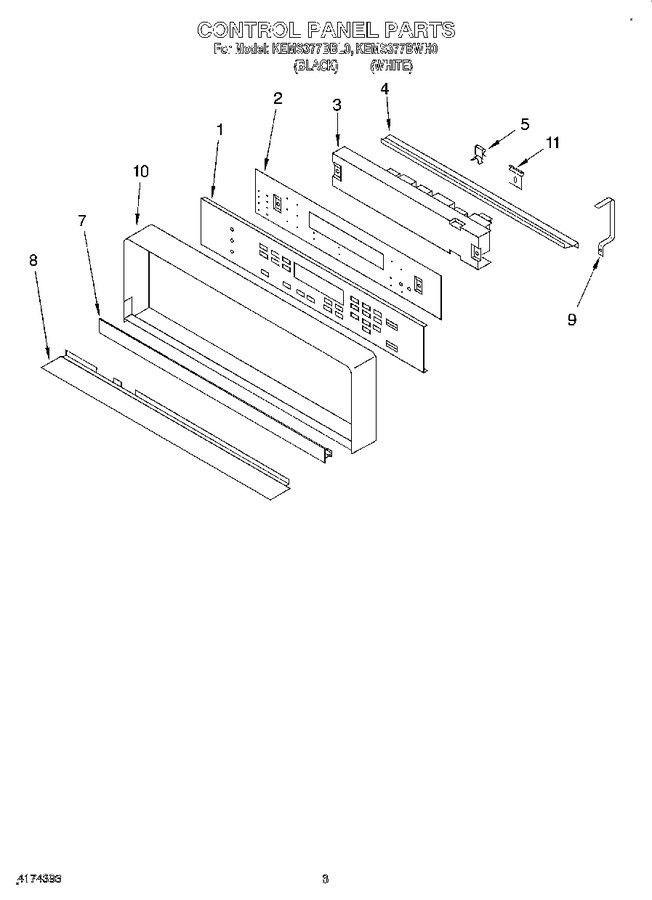

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	3181780		Membrane, Switch (black Model)		Appelez-nous	-
1	3181781		Membrane, Switch (white, Model)		Appelez-nous	-
2	3183794		Bracket, Mounting Switch Membrane		Appelez-nous	-
3	3181703		Microcomputer		Appelez-nous	-
4	3183705		Retainer, Bracket		Appelez-nous	-
5	3182985		Clip, Retainer		Appelez-nous	-
7	3183599		Trim, Panel (white Model)		Appelez-nous	-
7	3183597		Trim, Panel (black Model)		Appelez-nous	-
8	3184517		Trim, Panel (white Model)		Appelez-nous	-
8	3184516		Trim, Panel (black Model)		Appelez-nous	-
9	3184321		Bracket		Appelez-nous	-
10	3187955		Frame, Control Panel (white Model)		Appelez-nous	-
10	3187954		Frame, Control Panel (black Model)		Appelez-nous	-
11	3184567		Clip, Control Frame		Appelez-nous	-
	LIT3184435		Installation Instructions		Appelez-nous	-
	LIT3184440		Tech Sheet		Appelez-nous	-
	LIT3183987		Guide, Auto Set		Appelez-nous	-
	LIT4357919		Cookbook Microwave		Appelez-nous	-
	LIT3150693		Cookbook T/c Oven		Appelez-nous	-
	LIT3188194		Use & Care Guide (microwave)		Appelez-nous	-
	LIT3188195		Use & Care Guide (oven)		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
