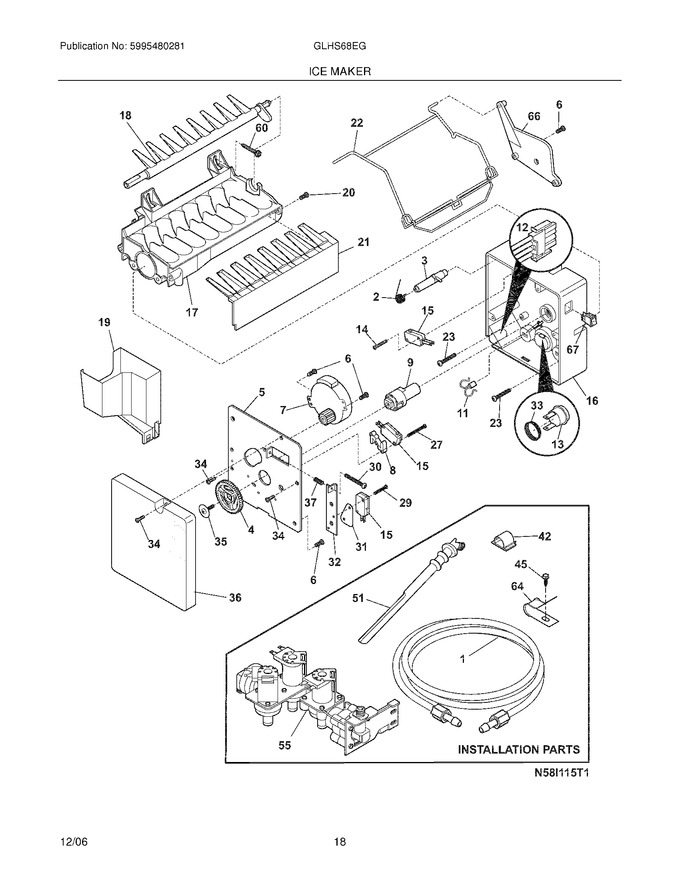

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	218976409		Tube-water-door			Immediately	$ 60.25
2	5304436616		Spring,torsion		Appelez-nous	-
3	5304436610		Detent				$ 20.00
4	3206301		Gear		Appelez-nous	-
5	5304436604		Plate-mounting		Appelez-nous	-
6	5304455670		Screw,taptite ,8-32 X 1/4		Appelez-nous	-
8	3206312		Spacer-hold Switch		Appelez-nous	-
9	3206313		Cam		Appelez-nous	-
12	5304436614		Harness-wiring				$ 86.89
13	5304436613		Thermostat,ice Maker		Appelez-nous	-
14	5304455676		Screw,plask ,4-14 X 3/4		Appelez-nous	-
16	5304436609		Housing,control		Appelez-nous	-
18	5304436607		Ejector-ice		Appelez-nous	-
19	5304436606		Cup-water Inlet				$ 72.40
20	5304455677		Screw,8-32 X 3/8		Appelez-nous	-
21	5304473031		Ice Stripper   (Replaces: 5304436608)				$ 29.58
22	5304436602		Shut-off Arm		Appelez-nous	-
23	5304455678		Screw,8-32 X 7/8 ,mold-to-support		Appelez-nous	-
27	5304455681		Screw,taptite ,4-40 X 1.000 ,hold Switch Mtg,(2)		Appelez-nous	-
29	5304455845		Screw,4-24 X 0.750 ,(6)		Appelez-nous	-
30	5304455682		Screw,type 23 ,8-32 X 1.00		Appelez-nous	-
31	3206342		Insulator		Appelez-nous	-
32	5304455683		Plate-valve Switch		Appelez-nous	-
33	5304436615		Spring-thermostat		Appelez-nous	-
34	5304455684		Screw,plazscrew ,8-10 X 1/2 ,(3)		Appelez-nous	-
35	5304455685		Screw		Appelez-nous	-
36	5303918344		Cover-ice Maker   (Replaces: 5304436605)			Immediately	$ 178.39
37	5304408583		Spring-timing Adj		Appelez-nous	-
42	218515403		Clip-grille				$ 29.06
45	5304455650		Screw,hex Washer Head ,8-15a X 0.625 ,low Profile				$ 14.18
51	241796407		Tube-water Fill,extension   (Replaces: 241523503)				$ 19.85
60	218362501		Screw,hex Washer Head ,8-18ab X 1.250 ,spacer,(2)				$ 12.05
64	5304455846		Clamp,0.31 Id ,steel ,copper Wtr Line   (Replaces: 5303001549)				$ 10.63
66	5304436611		Bracket-ice Maker		Appelez-nous	-
67	5304465210		Switch,on/off   (Replaces: 5304436612)				$ 225.39
F11	5304436618		Thermal Cutoff,ice Maker ,complete Assy				$ 116.03
F15	5304456667		Switch,(3)   (Replaces: 3206324)				$ 92.53
F17	5303918344		Mold-ice Maker,with Heater   (Replaces: 5304436617)			Immediately	$ 178.39
F55	242252702		Valve-water,triple Solenoid   (Replaces: 241734301)			Immediately	$ 132.71
F7	5304469407		Motor-ice Maker   (Replaces: 5304436619)				$ 158.38
NI	218709101		Screw,hex Head ,10-32 X 0.500				$ 6.38
NI	240363602		Screw-shoulder				$ 13.65
NI	240542901		Cap-water Valve				$ 18.95
NI	5304455843		Harness-wiring		Appelez-nous	-
NI	218888001		Adapter,water Line ,w/fittings				$ 63.42
NI	241583301		Deflector-air,ice Maker				$ 46.78
NI	241587402		Deflector-ice				$ 20.56
NI	218976418		Tube-water Inlet,inlet Valve ,to Filter				$ 64.49
NI	5303918344		Ice Maker,radius Cube ,115 V ,no Instl Parts   (Replaces: 241696501)			Immediately	$ 178.39
NI	218976419		Tube-water Inlet,valve To Door				$ 22.68
NI	241850615		Tube-water Inlet,inlet Valve ,to Filter   (Replaces: 218976915)				$ 34.73
NI	240561701		Seal-water Inlet,inlet Valve ,to Ice Maker   (Replaces: 240561703)			Immediately	$ 20.56
