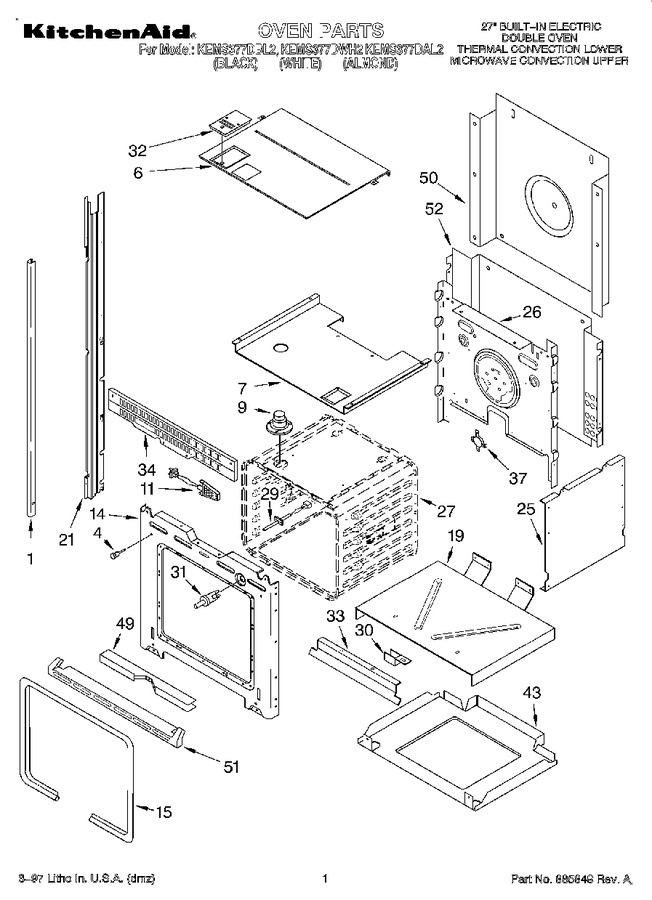

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	4450856		Trim, Side (rh Black)		Appelez-nous	-
1	4450857		Trim, Side (rh White)		Appelez-nous	-
1	4450858		Trim, Side (rh Almond)		Appelez-nous	-
1	4450859		Trim, Side (lh Black)		Appelez-nous	-
1	4450860		Trim, Side (lh White)		Appelez-nous	-
1	4450861		Trim, Side (lh Almond)		Appelez-nous	-
1	WP8281236		Trim, Side (screw) (black Model)   (Replaces: 4449747)				$ 6.80
1	4449041		Trim, Side (screw) (white & Almond)				$ 5.27
4	4448520		Bumper, Door				$ 19.07
6	4451053		Divider, Vent		Appelez-nous	-
6	WP4449809		Screw   (Replaces: 4449809)			Immediately	$ 6.47
7	4451165		Partition		Appelez-nous	-
7	WP4449809		Screw   (Replaces: 4449809)			Immediately	$ 6.47
9	WP4449154		Screw   (Replaces: 4449154)				$ 6.80
9	4449009		Tube, Vent		Appelez-nous	-
11	4449748		Screw				$ 12.20
11	WP4448972		Oven Light Assy   (Replaces: 4448972)				$ 98.46
14	WP4449040		Screw   (Replaces: 4449040)				$ 6.78
14	4450416		Frame, Front		Appelez-nous	-
15	WP4455381		Gasket, Door   (Replaces: 4449371)				$ 159.09
19	WP4449809		Screw   (Replaces: 4449809)			Immediately	$ 6.47
19	4450541		Support, Insulation		Appelez-nous	-
21	4450584		Rail, Side (left Side)		Appelez-nous	-
21	WP4448444		Rail, Side (grommet)   (Replaces: 4448444)				$ 6.73
21	WP4449154		Rail, Side (screw)   (Replaces: 4449154)				$ 6.80
21	4450583		Rail, Side (right Side)		Appelez-nous	-
25	4450528		Side, Module (r.h. & L.h.)		Appelez-nous	-
25	WP4449809		Screw   (Replaces: 4449809)			Immediately	$ 6.47
26	WP4449809		Screw   (Replaces: 4449809)			Immediately	$ 6.47
26	4451168		Back, Module		Appelez-nous	-
29	WP4449154		Screw   (Replaces: 4449154)				$ 6.80
29	4450026		Sensor		Appelez-nous	-
30	WP4449809		Screw   (Replaces: 4449809)			Immediately	$ 6.47
30	4449845		Bracket-support		Appelez-nous	-
31	4450819		Switch, Door		Appelez-nous	-
32	4449369		Vent Box Assy		Appelez-nous	-
32	WP4449809		Screw   (Replaces: 4449809)			Immediately	$ 6.47
33	4450280		Deflector, Vent		Appelez-nous	-
34	4449071		Vent, Center		Appelez-nous	-
34	4159465		Screw		Appelez-nous	-
34	WP4450038		Screw   (Replaces: 4450038)				$ 6.84
37	4450334		Thermostat (tod) (temp.) Spst		Appelez-nous	-
37	WP4449809		Screw   (Replaces: 4449809)			Immediately	$ 6.47
43	4450526		Base, Chassis		Appelez-nous	-
43	WP4449809		Screw   (Replaces: 4449809)			Immediately	$ 6.47
49	WP4449154		Screw   (Replaces: 4449154)				$ 6.80
49	WP4448933		Retainer, Gasket   (Replaces: 4448933)				$ 7.97
50	WP4449809		Screw   (Replaces: 4449809)			Immediately	$ 6.47
50	4450543		Cover, Back		Appelez-nous	-
51	4448458		Trim, Bottom (black Model)		Appelez-nous	-
51	4448459		Trim, Bottom (white Model)		Appelez-nous	-
51	4448460		Trim, Bottom (almond Model)		Appelez-nous	-
51	4159465		Trim, Bottom (screw)		Appelez-nous	-
52	4449315		Insulation, Wrap				$ 64.81
52	4450127		Insulation, Bottom		Appelez-nous	-
52	4450402		Chassis, Back		Appelez-nous	-
52	4450364		Insulation, Back		Appelez-nous	-
