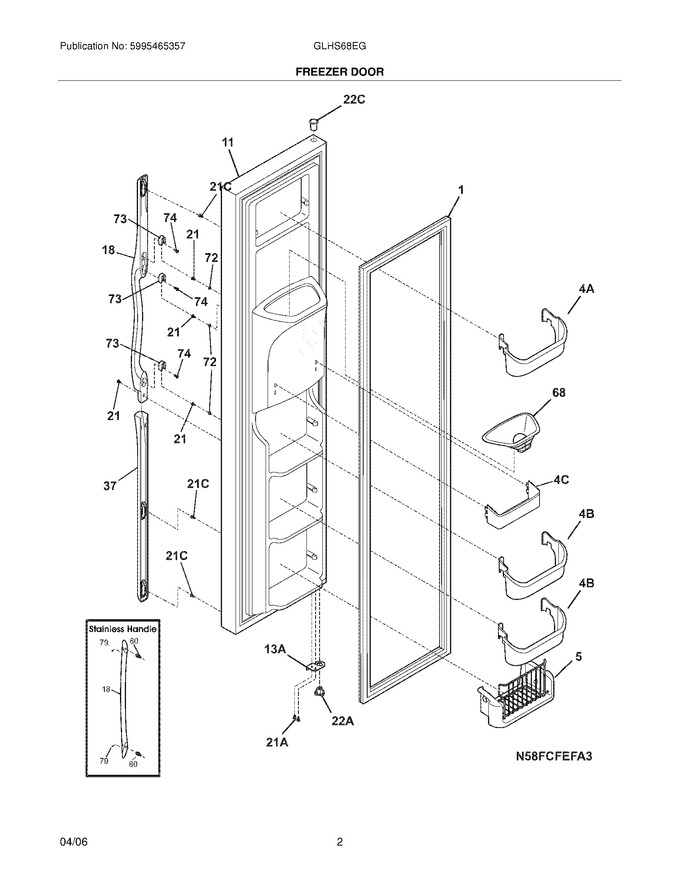

03 - Freezer Door
05 - Refrigerator Door
07 - Cabinet
09 - Shelves
11 - Controls
13 - System
15 - Ice & Water Dispenser
17 - Ice Container
19 - Ice Maker
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 5 | 241545005 | Bin-tilt Out,tilt-out |
|
$ 130.64 | |||||
| 11 | 241526780 | Door-frzr,black ,complete Assy |
|
$ 350.84 | |||||
| 18 | 240536810 | Handle-door,black |
|
$ 129.00 | |||||
| 68 | 241525101 | Chute-ice |
|
$ 82.25 | |||||
| 79 | 218755402 | Screw-set,10-32 X 0.375 |
|
Immediately | $ 33.00 | ||||
| 80 | 218755504 | Screw-shoulder,no.10 Ab ,handle Mounting (Replaces: 218755503) |
|
Immediately | $ 18.60 | ||||
| 13A | 240581906 | Door Stop,black ,frzr |
|
$ 73.00 | |||||
| 21A | 5303323137 | Screw,10-32 X 1/2 (Replaces: 240598402) |
|
$ 11.88 | |||||
| 22A | 242000502 | Bearing-hinge(frz),black ,closer (Replaces: 240328204) |
|
$ 7.18 | |||||
| 22C | 240328404 | Bearing-hinge,black ,upper |
|
$ 22.87 | |||||
| 4A | 240334201 | Bin-door,frzr-upper |
|
$ 67.21 | |||||
| 4B | 240351601 | Bin-door |
|
Immediately | $ 58.73 | ||||
| 4C | 240351701 | Bin-door,frzr-dispenser |
|
$ 74.81 | |||||
| F1 | 241786014 | Gasket-frzr Door,black ,magnetic (Replaces: 241674806) |
|
$ 95.17 | |||||
| NI | 240545201 | Connector-water,straight (Replaces: 240352102) |
|
$ 73.71 | |||||
| NI | 240552102 | Harness-wiring,door |
|
$ 77.60 | |||||
| NI | 5303918256 | Dispenser Heater Kit |
|
$ 474.16 |
