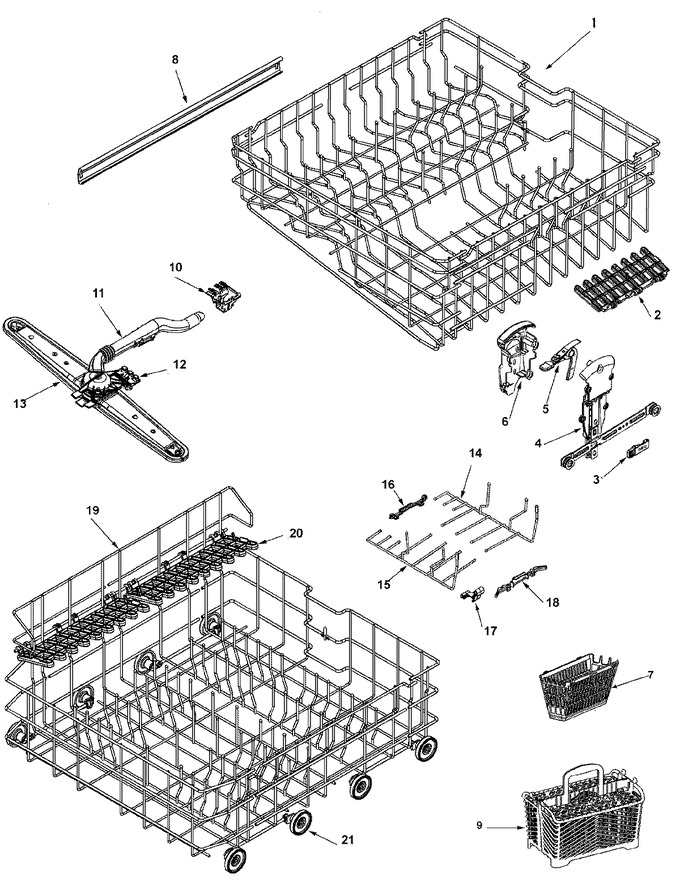

SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 99002905 | Cap, Rack (dark Gray) | 10 |
|
$ 23.63 | ||||
| 1 | 99003480 | Rack Assembly,upr (dk Gray) | 10 |
|
- | ||||
| 1 | 99003052 | Guard, Rack (high Side) | 10 |
|
$ 5.01 | ||||
| 1 | 99003053 | Guard, Rack (low Side) | 10 |
|
$ 9.96 | ||||
| 1 | 99003460 | Handle, Rack (back Half) | 10 |
|
- | ||||
| 1 | 99003459 | Handle, Rack (front Half) | 10 |
|
- | ||||
| 2 | 99002671 | Shelf, Cup (upr) | 10 |
|
$ 21.17 | ||||
| 3 | 99003020 | Stabilizer, Rack Adjuster | 10 |
|
$ 37.77 | ||||
| 4 | 99003010 | Screw (t15) 8-18 X .500 | 10 |
|
- | ||||
| 4 | 99003587 | Rack Adjuster Assy (rt) | 10 |
|
- | ||||
| 4 | WPW10153533 | Rack Adjuster Assy (lt) (Replaces: 99003586) | 10 |
|
Immediately | $ 137.39 | |||
| 5 | 99003178 | Lever, Adjuster (blue) | 10 |
|
$ 55.08 | ||||
| 6 | 99003011 | Cover, Rack Adjuster (gray) | 10 |
|
$ 5.75 | ||||
| 7 | 99002620 | Basket, Auxillary (blue) | 10 |
|
- | ||||
| 8 | 99003066 | Rail, Inner Slide | 10 |
|
- | ||||
| 8 | 99003069 | Cage, Ball Bearing | 10 |
|
$ 6.26 | ||||
| 8 | 99003068 | Bearing, Ball | 10 |
|
$ 5.83 | ||||
| 8 | 99003476 | Stop, Rack (blue) | 10 |
|
$ 38.72 | ||||
| 9 | WP6-918873 | Split/fit Bskt Assy (Replaces: 99002683) | 10 |
|
Immediately | $ 54.28 | |||
| 9 | 99002697 | Cover, Split/fit Basket | 10 |
|
- | ||||
| 9 | WP6-918873 | Basket, Silverware (half) (Replaces: 99002684) | 10 |
|
Immediately | $ 54.28 | |||
| 10 | 99002670 | Clip, Upr Wash Manifold (back) | 10 |
|
- | ||||
| 11 | 99002624 | Arm, Wash (upr) | 10 |
|
$ 32.72 | ||||
| 11 | 99002740 | Screw, Truss Head (10-18x.75) | 10 |
|
$ 6.24 | ||||
| 12 | 99002669 | Clip, Upr Wash Manifold (frt) | 10 |
|
$ 5.84 | ||||
| 13 | 99002679 | Wash Manifold Assy (upr) | 10 |
|
- | ||||
| 14 | 99003496 | Tines, Convertable (frt) | 10 |
|
$ 26.38 | ||||
| 15 | 99003497 | Tines, Convertable (rear) | 10 |
|
$ 26.28 | ||||
| 16 | WP99002687 | Pivot, Convertible Tine (blue) (Replaces: 99002687) | 10 |
|
$ 7.00 | ||||
| 17 | WP99003003 | Pivot, Convertible Tine(gray) (Replaces: 99003003) | 10 |
|
Immediately | $ 7.22 | |||
| 18 | 99003527 | Clip, Adjustable Tine (blue) | 10 |
|
$ 20.41 | ||||
| 19 | 99003461 | Rack Assembly (lwr) | 10 |
|
- | ||||
| 20 | 99002672 | Shelf, Cup (lwr) | 10 |
|
$ 52.85 | ||||
| 21 | WP99002780 | Wheel Assembly (lwr) (Replaces: 99002780) | 10 |
|
Immediately | $ 9.90 |
